27 MHz President Barry-2 40-Channel CB AM/FM Transceiver 4 Watts

rating No review at the moment

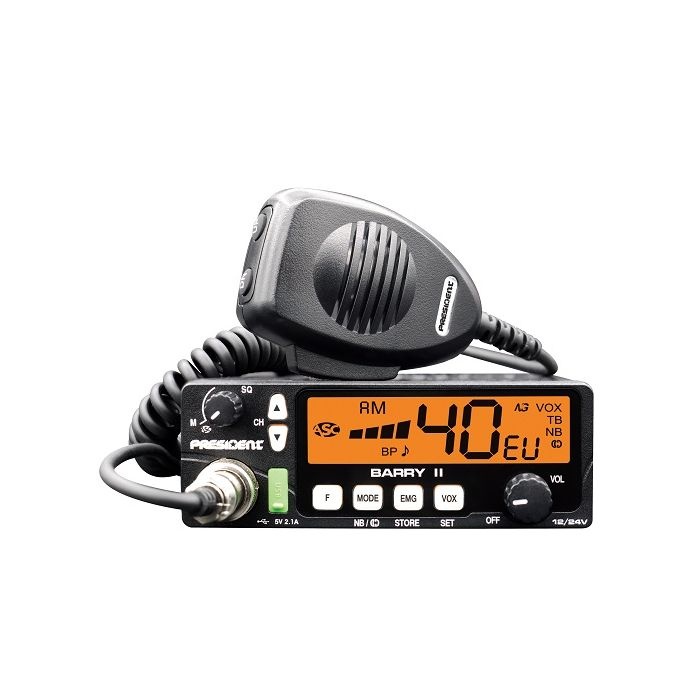

President Barry-2 Mobile CB Radio transceiver, 40 channels (26.965 - 27.405 MHz).

  • Antenna impedance: 50 ohms
  • 4 Watt AM/FM output power
  • 12 V/24 V power supply
  • Hands-free option: integrated VOX
  • With Electret type microphone, 6-pin with President wiring.

Delivered with: 1 President Barry-2 transceiver

More details

125,00 € tax excl.

In stock

   1 Item

Download

Data sheet

FEATURES :

  • 40 AM / FM channels
  • 12 / 24 V
  • Channel up/down selector
  • Volume control and ON/OFF
  • Manual squelch and ASC
  • Multi-function LCD display
  • S-meter
  • Public address
  • Talkback
  • ANL, NB filter
  • Compactor
  • Function key F
  • Beep function
  • Roger Beep
  • VOX
  • Noise Gate
  • AM / FM mode switch
  • Programmable preset channel
  • TOT (Time out timer)
  • Front microphone jack
  • External speaker socket

Transmission:

  • Frequency tolerance: +/- 200 Hz
  • Carrier power: 4 W AM / 4 W FM
  • Transmission interference: less than 4 nW (- 54 dBm)
  • Audio response: 300 Hz to 3 KHz
  • Adjacent channel power: less than 20 μW
  • Microphone sensitivity: 7 mV
  • Drainage: 1.7 A at 13.2 V / 0.85 A at 26.4 V
  • Distortion of modulated signal: 2%.

Reception:

  • Maximum sensitivity at 20 dB sinad :
  • 0.5 µV - 113 dBm AM
  • 0.35 µV - 116 dBm FM
  • Frequency response: 300 Hz to 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2.5 W
  • Squelch sensitivity :
  • Minimum 0.2 μV - 120 dBm
  • Maximum 1 mV - 47 dBm
  • Frequency image rejection rate: 60 dB
  • Intermediate frequency rejection rate: 70 dB
  • Drain: 160 ~ 420 mA (13.2 V) ;100 ~ 250 mA (26.4 V)
