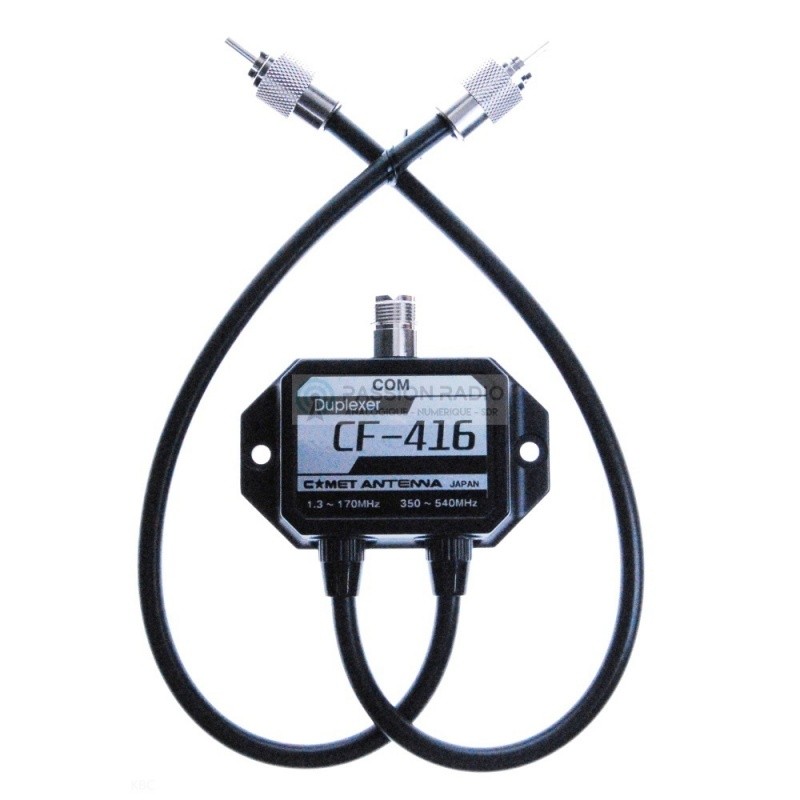

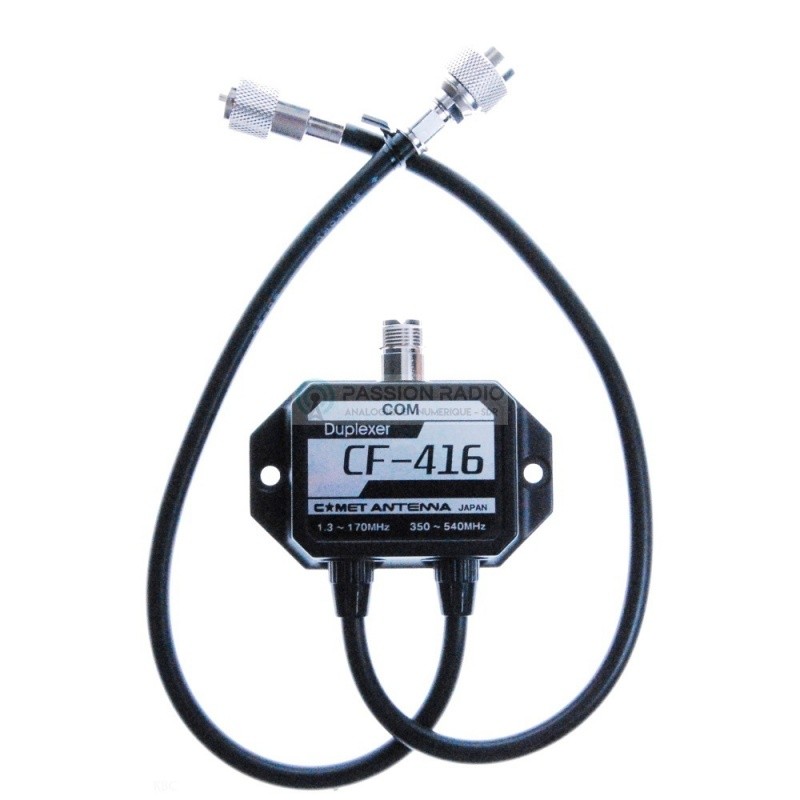

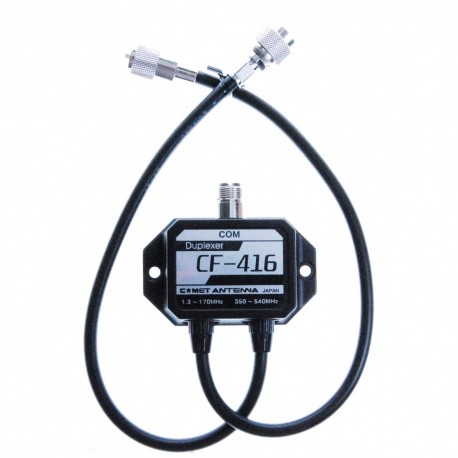

Combiner/Splitter COMET CF-416 A and B
No review at the momentCOMET CF-416 duplexer / combiner / splitter, to separate HF/VHF frequencies from 1.3 to 170 Mhz and UHF band 350 to 540 Mhz.
Available in 2 versions with PL-259 or N connectors for the UHF band. The length of the coaxial cables is 31cm.
CF-416 A version
Common: SO-239
HF / VHF: PL-259
UHF: PL-259
Version CF-416 B
Common: SO-239
HF / VHF: PL-259
UHF: N-Male
Data sheet
COMET CF416 combiner splitter datasheet
HF / VHF: 1.3 to 170MHz
UHF: 350-540MHz
Max power: 800W PEP HF / VHF and 500W PEEP in UHF
Insertion loss: 0.15dBi in HF / VHF and 0.25dBi in UHF
Insulation: 60dB minimum
Length coaxial cables: 31cm
CF-416A version connector
Common: SO-239
HF / VHF: PL-259
UHF: PL-259
CF-416B version connector
Common: SO-239
HF / VHF: PL-259
UHF: N-Male
COMET calls this material a duplexer, it is actually a combiner or a splitter, depending of your use.
It is a combination of a bandpass filter, simultaneously passing the radio signal in both directions via the common connector, and a bandpass filter to completely isolate the other 2 connectors.
A combiner/splitter allows:
- To use simultaneously in transmission and reception, 2 radio devices on the same antenna,
- To use a dual-band radio with 2 separate outputs, on a single dual-band antenna,
- To use a duplex radio on several antennas,
- To use a single coaxial cable descent to supply 2 different antennas at the top of the mast, on 2 different radio stations at the station, with a single coaxial cable instead of 2.
