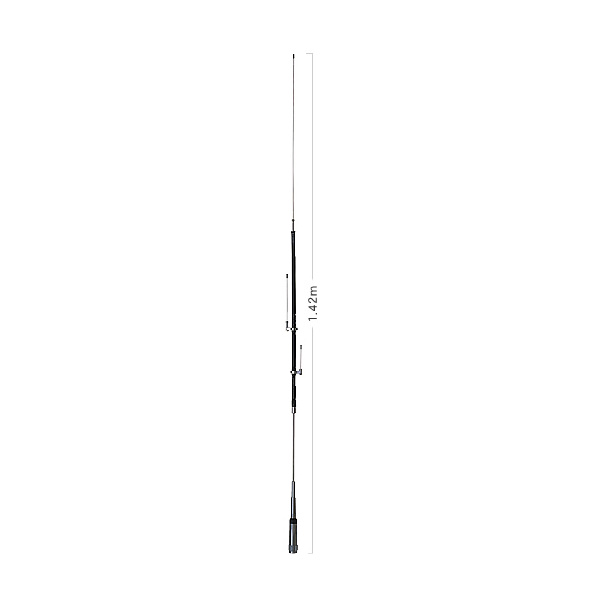

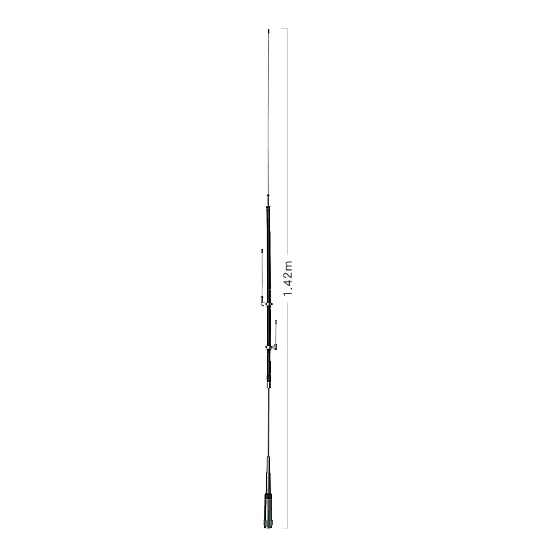

Diamond HV5S mobile multiband antenna 40m/15m/6m/2m/70cm

View larger

Manufacturer: Diamond Antenna

Reference: DIAMOND-HV5S-3030

Condition: New product

Country of origin:

Japan

Diamond HV5S mobile multiband antenna 40m/15m/6m/2m/70cm

No review at the moment

The Diamond HV5S is a multi-band mobile amateur radio antenna for the 7/21/50/144/430 MHz HF frequency bands.

Its robust construction and ease of installation make it an ideal choice for use in mobile conditions with a single antenna for the bands covered:

HF: 40m (7MHz), 15m (21MHz)
VHF: 6m (50MHz), 2m (144MHz)
UHF: 70cm (430MHz)
Maximum power: 120W (SSB) HF and 200W VHF/UHF
Length: 1.42 metres
Base: Tiltable
Connector type: PL-259

Depending on the set the antenna is used with, we recommend adding the MX-62M diplexer diplexer to separate the HF and VHF/UHF bands.

This Diamond HV-5S antenna is guaranteed original direct from Japan.

Delivery info: This antenna is considered a very large package and carriers apply an extra charge for shipping. Package height 150cm.

More details

Data sheet

Frequency bands covered in transmission

7 to 7.1MHz
21 to 21.45MHz
50 to 52MHz
144 to 146MHz
430 to 440MHz

Length: 1.42m
Weight : 470g
Gain: 3.2dBi (430MHz)
VSWR: Less than 1.5:1 (50/144/430MHz) and less than 2.0:1 (7/21MHz)
Max power: 120W SSB (7/14*/21/28MHz), 200W SSB (50/144/430MHz)
Impedance: 50ohms
Connector: PL-259 (UHF Male)
Antenna type: 1/4 wave (7/21/50/144MHz) and 5/8 wave (430MHz)
Operates without ground plane only on 144/430MHz (2m/70cm)

Installation advice

1 - The HV5S antenna requires a very good ground plane in order to be tuned to the HF bands.

For the VHF and UHF bands, it can operate without a ground plane.

2 - We do not recommend the use of a magnetic base with this antenna and recommend a car mount grounded to the vehicle chassis or a bracket with holes.
