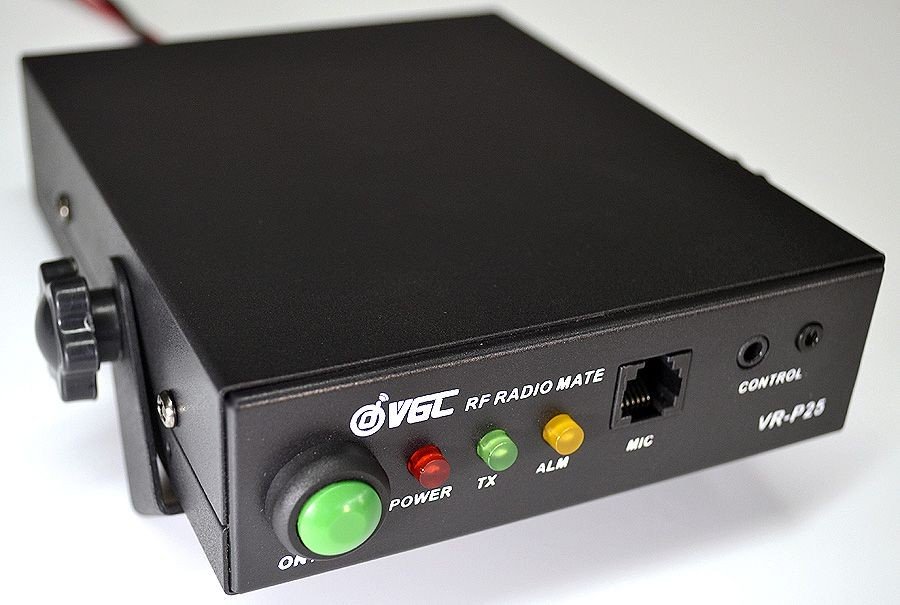

Amplifier handheld HT FM & DMR - VHF or UHF 25/30W VR-P25D

The VERO VR-P25D is a VHF 136-174 Mhz or UHF 400-470Mhz mobile amplifier for FM analog and digital DMR (Tier I & II), D-STAR, C4FM, P25, NXDN and dPMR. TDMA compatible (2 TimeSlot) and FDMA. Built-in speaker and hand microphone include.

Frequency range: 136-174 Mhz or 400-470 MHz
Power supply: 12-15 VDC
Consumption: 4 - 5.5A
Input RF power: 2 - 5W
Output power: 25 - 30W

With voltage suppression function, overheating protection, RF detection, automatic power control and filters to suppress harmonics.

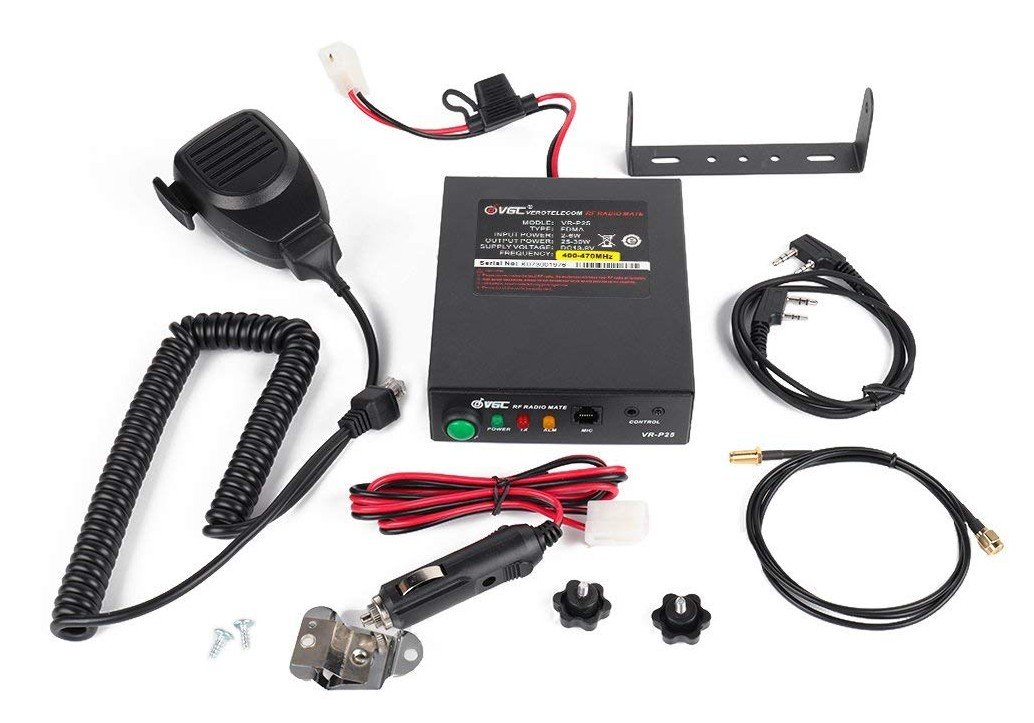

Supplied with: 1 VR-P25D (VHF or UHF, need to be choose below), 1 hand microphone, 1 bracket mount, 1 SMA Male <> SMA Female cable, 1 microphone / audio cable standard Kenwood K1-K1, 1 car power cable 12V, English manual.

More details

Data sheet

Specifications VR-P25D FM & DMR amplifier

Frequency range: 136-174 Mhz or 400-470MHz
Output Power: 25-30 Watts (VHF/UHF)
Input power: 2-5 Watts
Average consumption: 4.5A
Supply voltage 12V-15V (DC)
Impedance: 50 Ohms

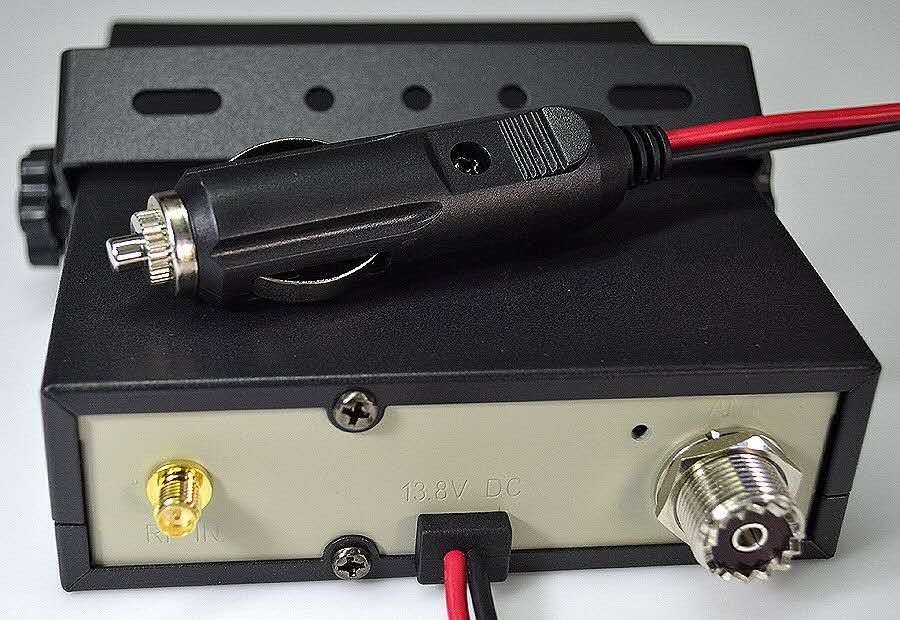

Radio input connector: SMA female
Antenna output connector: UHF female (SO239)
Size: 13.5 x 11.5 x 3.6 cm
Weight: 800g
CE RED standards

4 uses of the VR-P25D

vr-p25ud amplifier vr-p25d for FMR DMR walkie talkie
