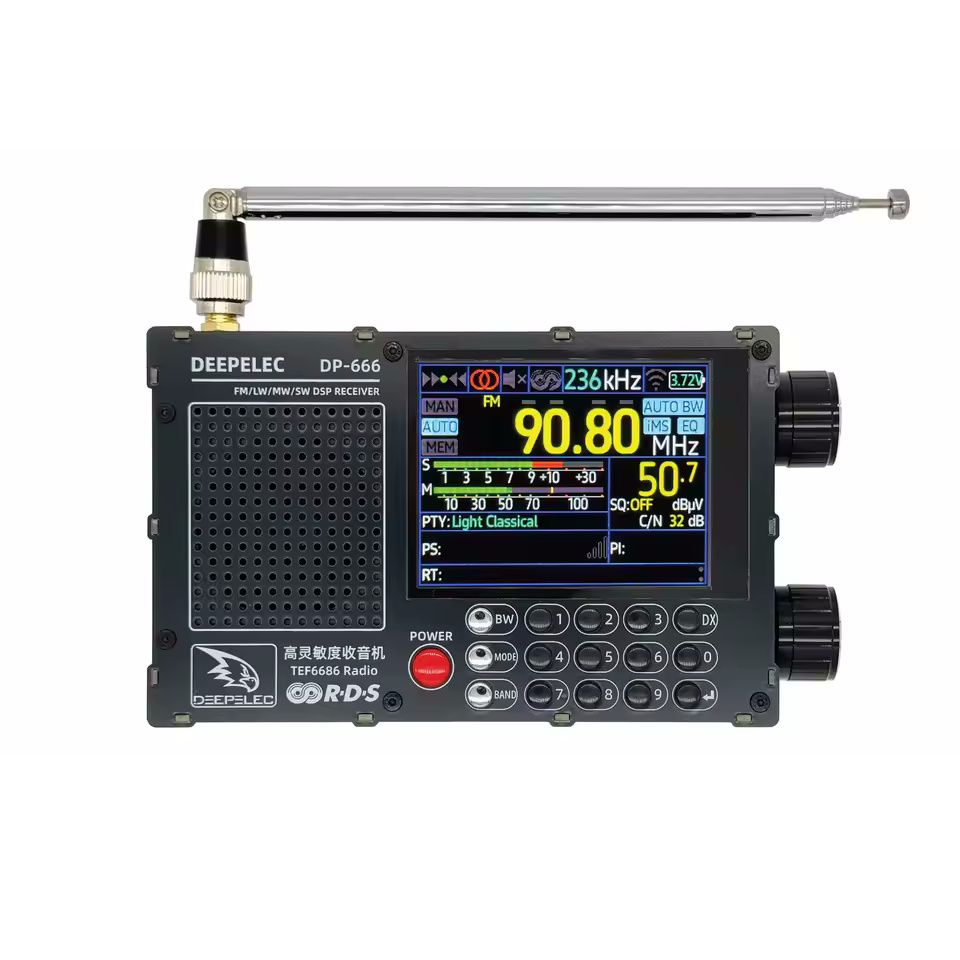

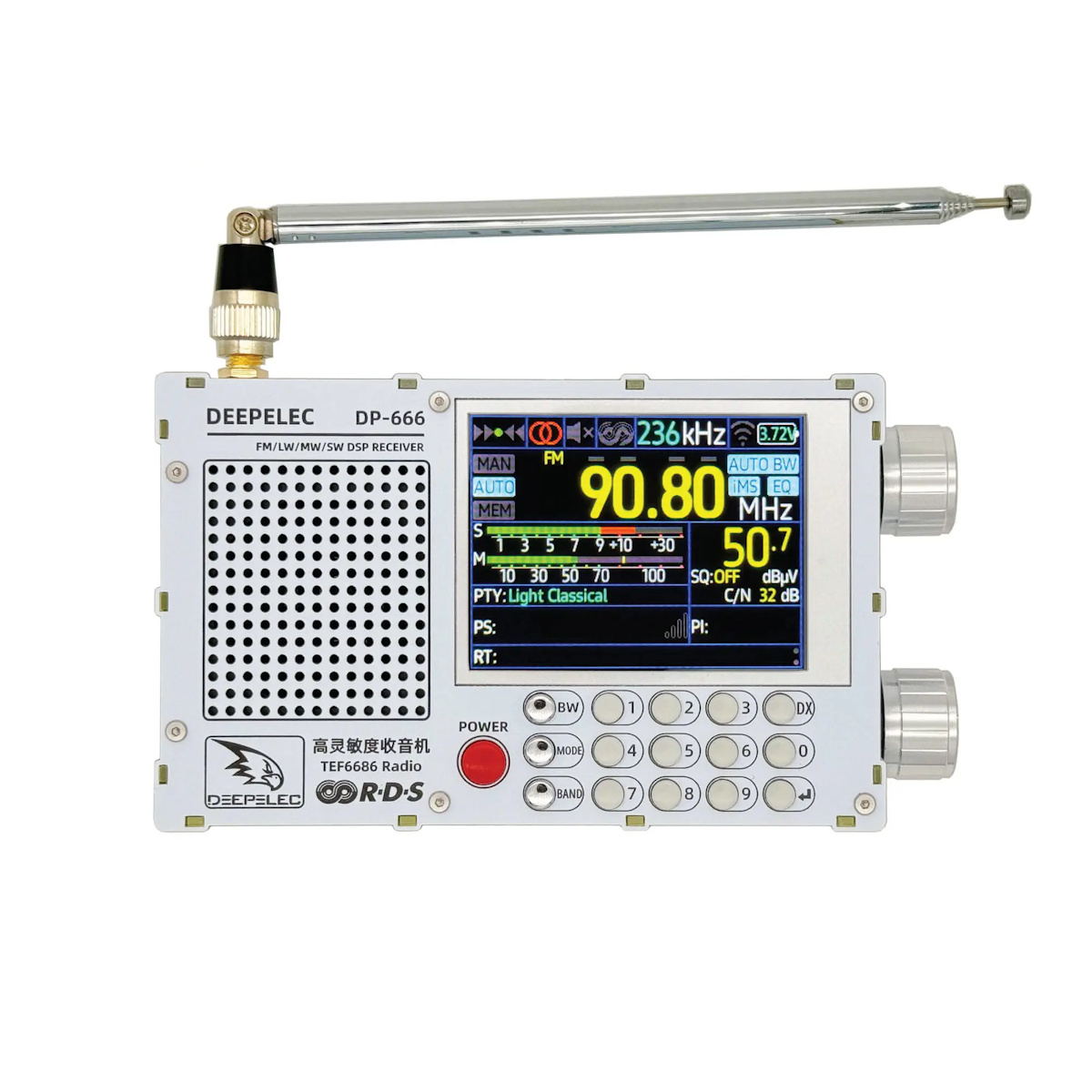

Deepelec DP-666 High Sensitivity DSP Radio TEF6686 FM/AM/SW/LW

The Deepelec DP-666 redefines portable radio listening with the integration of the NXP TEF6686 tuner chip, originally designed for the luxury automotive industry. This receiver is aimed at both demanding listeners and weak signal hunters (DXers) looking for a compact and ultra-performing alternative to traditional living room sets.

Key Features

• Extreme sensitivity allowing to capture distant FM stations where other radios fail.
• Dual control interface offering the flexibility of the touchscreen and the speed of the physical keyboard.
• Advanced digital signal processing (DSP) for optimal selectivity and effective noise reduction.
• Robust aluminum housing with a neat finish for increased durability in the field.
• Multi-firmware support allowing to customize the interface and add features like the RTC clock.
• Superior quality speaker offering clear and deep sound despite the compact size of the device.

Technical Specifications

• Tuner Chip: NXP TEF6686 (Digital IF Selective Receiver)
• Frequency Bands: FM (64-108 MHz), MW (522-1620 kHz), LW (144-288 kHz), SW (1.7-30 MHz)
• Screen: 2.4 inch color touchscreen LCD
• Antenna Connector: SMA-K (female)
• Audio: Built-in 3W speaker and 3.5mm headphone jack output
• Power Supply: Lithium Battery 3.7V / 3000mAh
• Charging Interface: USB Type-C (5V)
• Microcontroller: ESP32 with Wi-Fi support for future software extensions
• Dimensions: 120mm x 75mm x 30mm
• Weight: Approx. 300g

Compatibility

• Antennas: Compatible with any external antenna via SMA connector (wired, active or telescopic).
• RDS Information: Full support of PS, RT, CT, PTY and PI standards.
• System: Recognized by Windows for updates via the CH340N driver.
• Firmwares: Compatible with PE5PVB software branches and modified versions of Megatron.

FAQ

Why choose the Deepelec DP-666?

• Unmatched FM DX reception in this price range thanks to the TEF6686 chip.
• An authentic Deepelec product, guaranteeing better component quality than market clones.
• A large community of developers ensuring constant evolution of software features.
• A compact and ergonomic design facilitating transport for radio outings or vacations.
