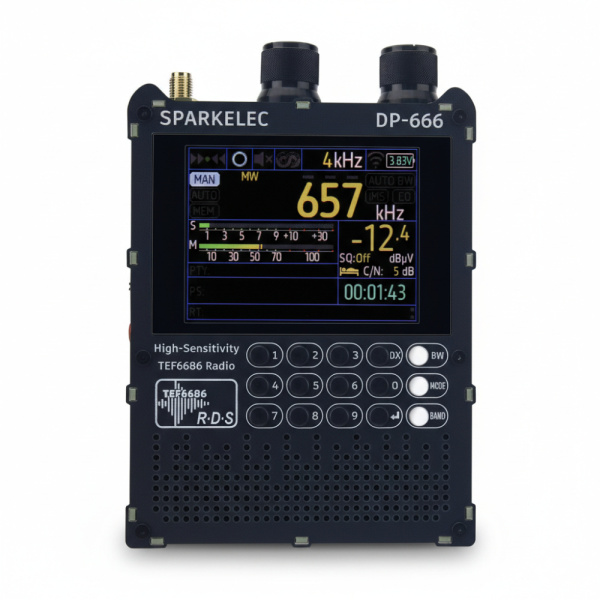

DP-666 HamGeek All-Mode DSP Receiver FM/LW/MW/SW/OIRT TEF6686 Touchscreen

The HamGeek DP-666 redefines the portable radio listening experience thanks to the integration of the famous NXP TEF6686 chipset, initially designed for high-end car radios. This receiver is aimed at DX (long-distance reception) enthusiasts and demanding radio listeners looking for the performance of a car tuner in a pocket format. With its modern touch interface and DSP filtering capabilities, it is an essential choice for exploring FM, AM, and HF waves with surprising clarity.

Key Highlights

• Automotive TEF6686 Core: Enjoy significantly higher sensitivity than classic portable radios thanks to this professional chip that perfectly handles weak signals and interference.
• Intuitive Touch Interface: The 2.8-inch IPS screen, usable with a finger or the included stylus, allows you to visualize the spectrum and quickly change frequencies or modes.
• Advanced DSP Processing: Benefit from powerful algorithms like noise blanker, automatic gain control (AGC), and adjustable bandwidth filters to clean the signal.
• Extended OIRT & FM Coverage: Capable of going down to 65 MHz, it covers the OIRT FM band (Eastern Europe) as well as the Japanese FM band, in addition to long, medium, and short waves.
• Autonomy and Mobility: Its internal battery rechargeable via USB-C and its compact format make it the ideal travel companion for outdoor DXing.

Technical Specifications

• Model: HamGeek DP-666
• Tuner Chipset: NXP TEF6686 (Automotive Grade DSP)
• Frequency Ranges:
  - FM: 65 - 108 MHz (including OIRT and Japan)
  - LW (Longwave): 144 - 519 kHz
  - MW (Mediumwave): 520 - 1710 kHz
  - SW (Shortwave): 2300 - 30000 kHz
• Screen: 2.8-inch IPS Color Touchscreen
• Antenna Connector: SMA Female (supports external antennas)
• Audio: Integrated high-fidelity speaker + 3.5mm Jack headphone output
• Battery: Integrated high-capacity Lithium
• Charging Port: USB Type-C
• DSP Functions: Squelch, Filter bandwidth, Noise Blanker, AGC
• Dimensions: Compact pocket format
• Housing: Robust and ergonomic

Compatibility

• Antennas: Compatible with all antennas equipped with an SMA Male connector (telescopic antennas, HF wire antennas, active loop antennas, Donut antennas).
• Chargers: Compatible with any standard 5V USB charger (smartphone type) via USB-C cable.
• Audio: Compatible with standard 3.5mm stereo jack headphones and earphones.

FAQ

Why choose the DP-666?

• Chipset Performance: It is one of the most affordable ways to access TEF6686 technology, recognized as a reference for FM DXing.
• Build Quality: A solid housing and a screen of superior quality compared to standard portable radios.
• Versatility: Excellent for both listening to local stations in high quality and hunting for distant stations (DX) on shortwave.
• Value for Money: Professional DSP features for a contained price, shipped quickly from France by Passion Radio.
