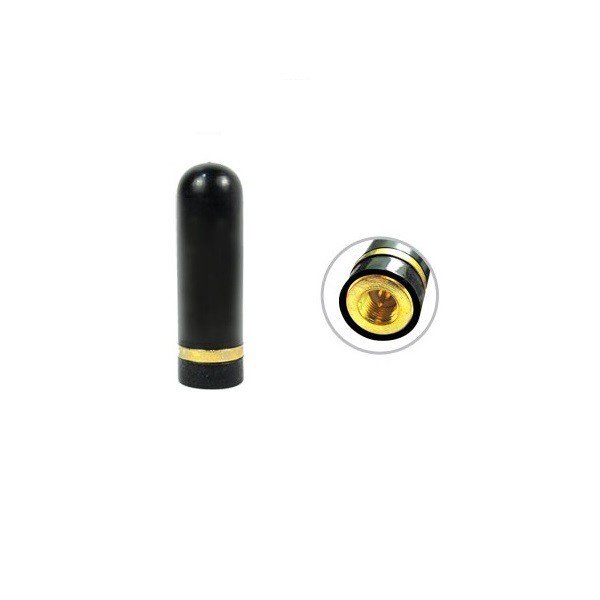

Mini-Antenna SMA Male or Female for DVMega BlueDV DV4mini Nagoya Antenna Handheld NAGOYA-AT805-MALE-409 View larger
Nagoya Antenna

New product

Taiwan

Mini-Antenna SMA Male or Female for DVMega BlueDV DV4mini

rating No review at the moment

Mini antenna 5cm long for 144Mhz & 430MHz with a gain of 0dBi, SMA male or female connector, suitable for DV Mega, pack BlueDV and DV4mini.

Frequency: 145Mhz +/- 2Mhz and 435MHz +/- 5MHz
Connector: SMA male or SMA female
Gain: 0dBi
VSWR: ≤1.5
Type Polarization: Vertical
Maximum power: 10W
Impedance: 50 Ohms
Length: 5,2 cm

Package includes: 1 antenna dual-band VHF/UHF

More details

QuantityPriceYou Save
2 4,75 € Up to 0,29 €
5 4,70 € Up to 0,98 €
10 4,61 € Up to 2,94 €
20 4,51 € Up to 7,84 €
50 4,41 € Up to 24,50 €
100 4,17 € Up to 73,50 €

4,90 € tax incl.

4,08 €

tax excl.

In stock

   5 Items

  • SMA Male
  • SMA Female

Order it before 10:00 of aujourd'hui and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Data sheet

Antenna specification AT-805

Frequency Range: 136-174Mhz and 400-470 (Dual band)
Band Width (MHz): 2Mhz on VHF/ 5Mhz in UHF
Impedance: 50 ohms
VSWR: <1.5
Gain (dBi): 0dBi
Polarization: Vertical
Radiation: Omni
Maximum power: 10 watts
Length (cm): 5.2 cm
Connector: SMA-Male or SMA-Female
Diameter of Chassis: 14mm
Net Weight: 12g
