> Radio Antennas>VHF-UHF>Handheld Antenna>Mini SMA Male Diamond antenna SRH805S 144/430/1200Mhz
Mini SMA Male antenna 144/430/1200Mhz Diamond Antenna Handheld DIAMOND-SRH805S-265 View larger

Diamond Antenna

DIAMOND-SRH805S-265

New product

Japan

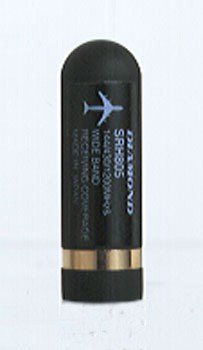

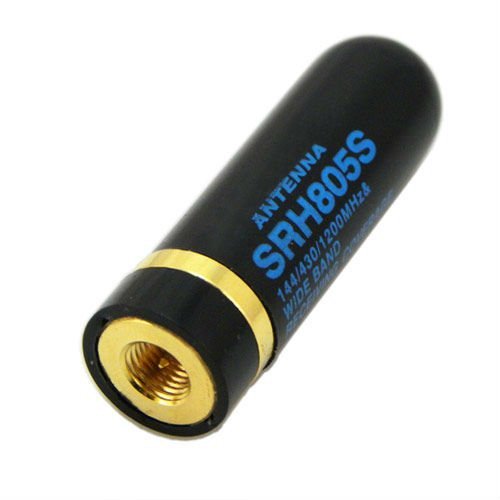

Mini SMA Male Diamond antenna SRH805S 144/430/1200Mhz

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

This mini antenna is the original version of the Diamond SRH805S a tri-band antenna for RX and TX on 144 / 430MHz / 1200MHz (2m / 70cm / 23cm) equipped with SMA male connector.

This antenna allows reception only on the frequencies: 150/300/450/800/900MHz

Length: 4.5cm
Weight: 15g
Gain: -2dB
Max power: 10W FM
Impedance: 50Ω
Connector: SMA Male

Delivered with: 1 antenna guaranteed original Diamond SRH-805S.

Given its small size, the performance in reception and transmission of the SRH-805 will be more limited than with a larger antenna.

19,90 € tax excl.

In stock

   3 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.
