Magnetic Nagoya antenna 144/430Mhz 53cm for handheld Nagoya Antenna Handheld ANTENNE-NAGOYA-UT72-SMA-F-4742 View larger

Nagoya Antenna

New product

Taiwan

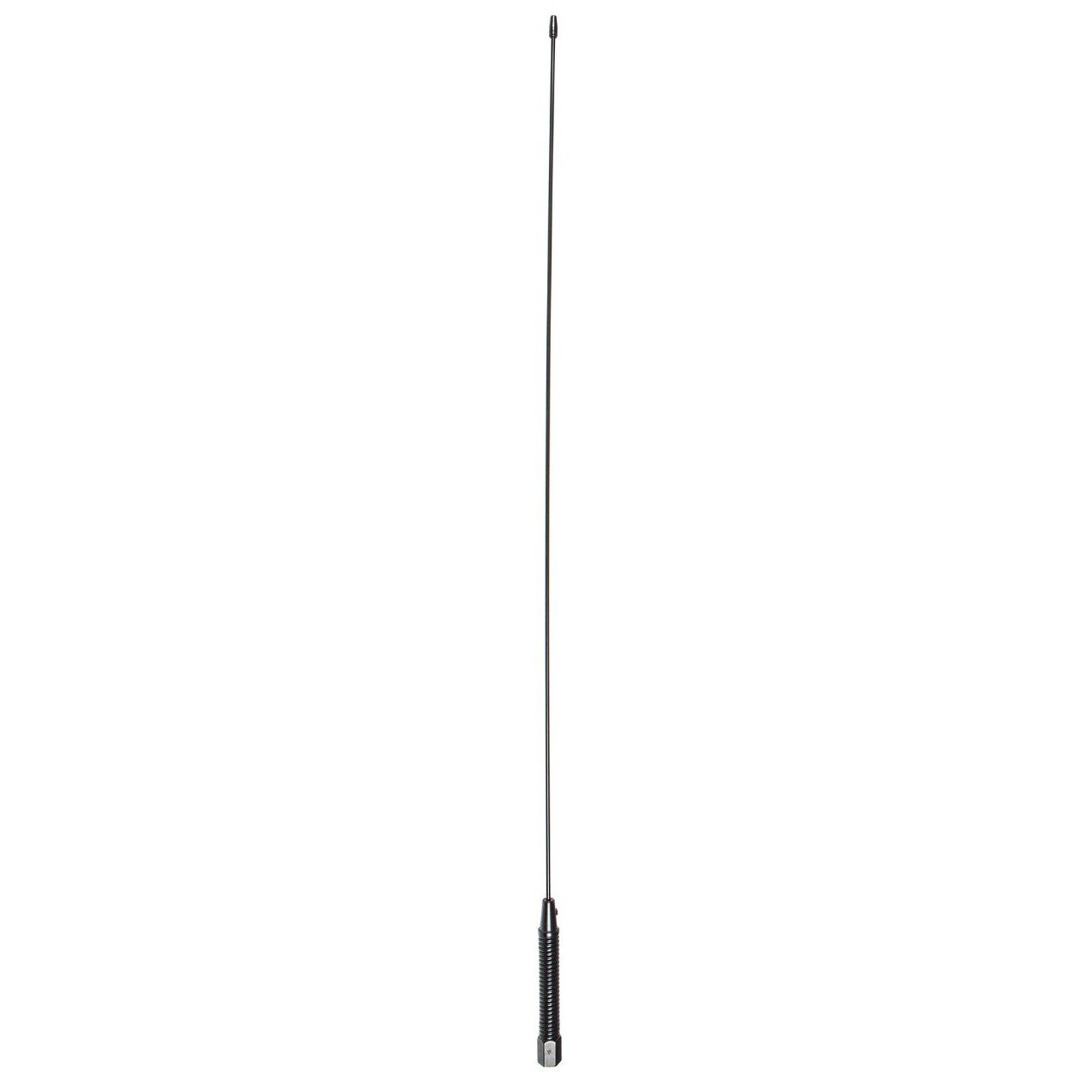

Magnetic Nagoya antenna 144/430Mhz 53cm for handheld UT-72

rating No review at the moment

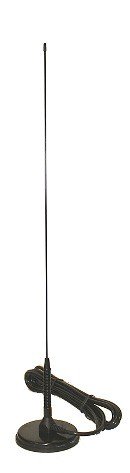

This dual-band 144/430Mhz magnetic antenna measures 53cm (with magnetic base) and can be used with a walkie-talkie or mobile unit. Also works in reception from 100Mhz to 180Mhz and 400 to 500Mhz approximately (RX only).

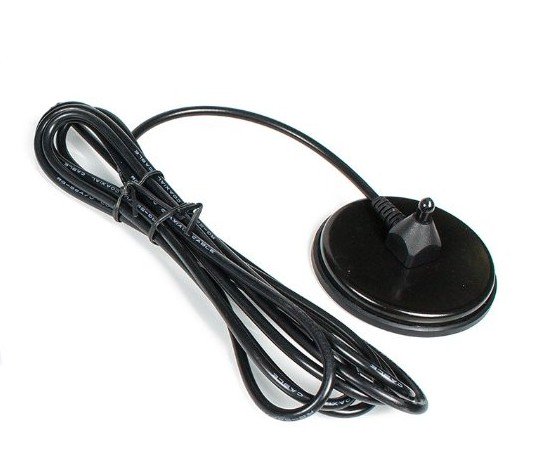

The antenna is supplied with a magnetic base and a coaxial cable 50 ohms RG58 with a length of 3 meters with SMA Male, SMA Female or BNC Male connector.

Comes with: Authentic Nagoya UT-72 (genuine guarantee).

More details

QuantityPriceYou Save
2 20,32 € Up to 1,26 €
5 20,11 € Up to 4,19 €
10 19,69 € Up to 12,57 €
20 19,27 € Up to 33,52 €
50 18,86 € Up to 104,75 €
100 17,81 € Up to 314,25 €

20,95 € tax incl.

17,46 €

tax excl.

In stock

   More than 10 Items

  • SMA Male
  • SMA Female
  • BNC Male

Order it before 10:00 of demain and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

Order it before 10:00 of demain and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

Order it before 10:00 of demain and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Data sheet

Specifications Nagoya UT-72 2m/70cm

Frequencies in transmission: 144-148 Mhz and 430-450 Mhz
Frequencies in reception: 100-180Mhz and 400-500Mhz approximately
Gain: 1.7dBi on 144Mhz and 3.5dBi on 430Mhz
Type of Polarization: Vertical
Length of the antenna: 53cm
VSWR: ≤1.5
Maximum power: 75W
Impedance: 50 Ohms
Cable length: 3 meters
Coaxial cable: RG58
Connector: SMA Male, SMA Femelle or BNC Male
Support: Strong magnetic base 8.25cm

This antenna Nagoya UT-72 is compatible with the following walkie-talkies and all devices with a SMA-Female connector:

WOUXUN: KG-UVD1P, KG-UV6D, KG-659, KG-669, KG-679, KG-689, KG-699E

To use this antenna with the BaoFeng UV-82, UV-5R and BF-888 walkie-talkies, an SMA-Female-Female adapter is required (optionally below).
