Ground plane for magnetic mount & HF antenna Diamond MAT50

To use an HF antenna below 50Mhz band, a ground plane are required.

This is not always possible or easy especially for antennas with magnetic base or for installations on a balcony.

Diamond MAT-50 Magnetic Grounding set provides a solution for using an RF antenna on a magnetic mount.

Simply place the MAT-50 on a flat metal surface and connect the supplied wire to the base of the antenna.

Delivered with: 1 Diamond MAT-50, DIAMOND original genuine guarantee.

More details

Download

Manual MAT-50 Diamond (EN)

User manual and datasheet in english Diamond Antenna MAT-50 1.22M

Data sheet

Diamond MAT-50 grounding Specifications

Frequency range: 7 to 50 MHz (3.5 MHz possible with 2 MAT-50)
Max Power : 500W (SSB), 200W (FM, CW)
Adhesion strength: Up to 110 km / h (without wind)

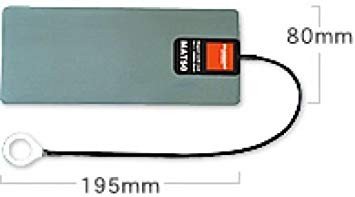

Size of the ground plane: 80 x 195mm
Connection cable length: 30cm
Weight: 55g
