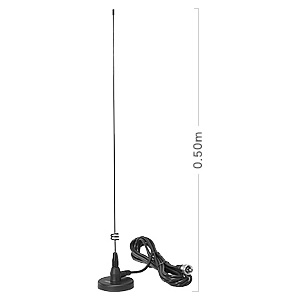

Diamond MR77 dual-band antenna MR77SJ MR77S View larger
Diamond Antenna

New product

Japan

Magnetic antenna Diamond MR77 dual band 144/430Mhz 70W + cable 4m

rating No review at the moment

External diamond MR-77 antenna for mobile or walkie-talkie dualband, 144 MHz (VHF) and 430 MHz (UHF) with a 2.15dbi gain in VHF and UHF 3.4dbi with coaxial cable RG58 / U 4 meters with connector to choose: SMA female, SMA male, PL-259 (UHF-Male) or BNC Male.

This antenna is preset broadcast on the bands 144/430MHz and can not be adjusted.

Transmission frequencies: 144/430Mhz
Maximum power: 70W
Reception frequency: 100-200Mhz and 400-500Mhz
Antenna length: 50 centimeters
Diameter of the magnetic base: 8cm
Cable length: 4 meters RG58

Supplied with: 1 Diamond MR77 antenna, connection to choose below, includes magnetic base and 4 meter coaxial cable.

More details

38,90 € tax incl.

32,42 €

tax excl.

In stock

   More than 10 Items

  • SMA Male
  • SMA Female
  • UHF Male (PL-259)
  • BNC Male

Order it before 10:00 of demain and receive it between on Wednesday 5th October and Thursday 6th October with DHL Express 12

Order it before 10:00 of demain and receive it between on Wednesday 5th October and Thursday 6th October with DHL Express 12

Order it before 10:00 of demain and receive it between on Wednesday 5th October and Thursday 6th October with DHL Express 12

Order it before 10:00 of demain and receive it between on Wednesday 5th October and Thursday 6th October with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Data sheet

Diamond MR-77 antenna specifications

Transmission frequencies: 144/430Mhz
Reception frequencies: 100-200Mhz and 400-500Mhz approximately
Gain: 2.15dBi on 144Mhz and 3.4dBi on 430Mhz
Polarization Type: Vertical
Wavelength: 1/4 in VHF and 5/8 in UHF
VSWR: ≤1.5
Maximum power: 70W
Impedance: 50 Ohms
Strand length: 50cm (non-orientable, non-tilting)
Cable length: 4 meters
Coaxial cable: RG58 / U
Support: Magnetic mini-base
Total weight: 400g

Cable connector:
SMA female for version MR77SJ
SMA male for the MR77S version
BNC male for the MR77B version
UHF Male (PL-259) for the MR77 version
