PST-1523VC vertical multiband antenna for 10 15 20 and 30m ProSisTel

Specifications

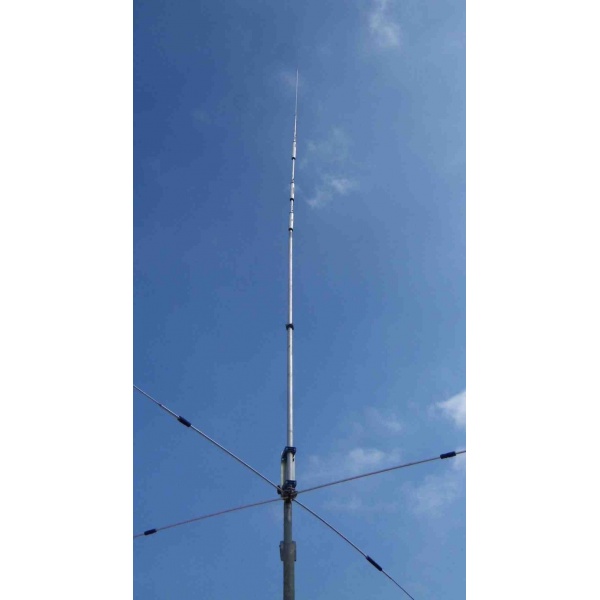

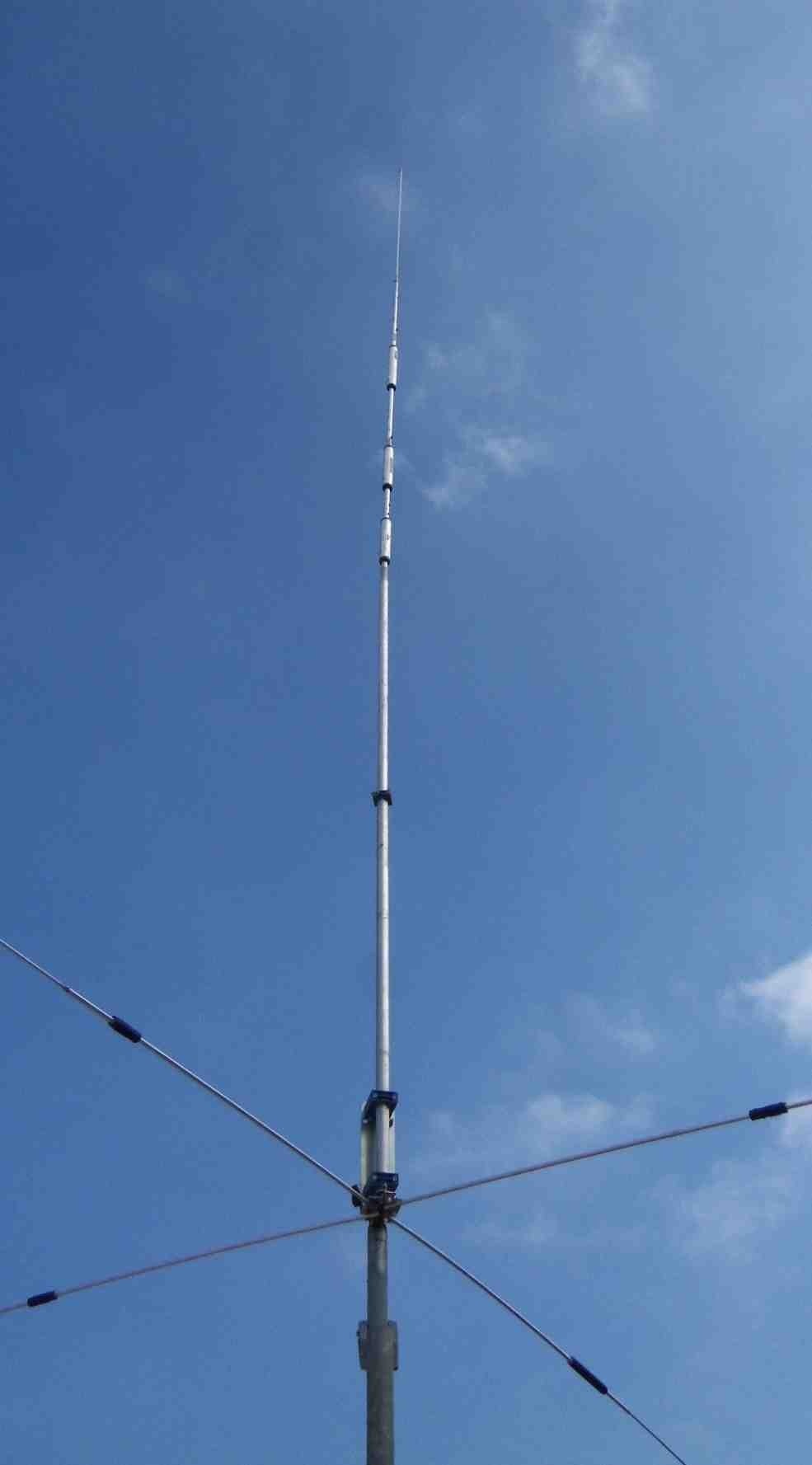

• Multi-band 10-15-20-30m vertical antenna with loaded rigid radials.
• Max. length of rigid radials = 2m
• Band width
• 30m = approx. 150Kc/s
• 20m = approx. 250Kc/s
• 15m = total coverage
• 10m = approx. 800Kc/s

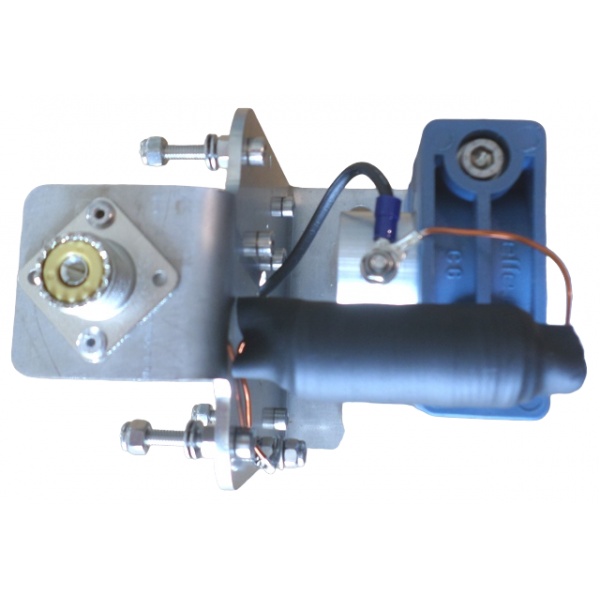

• RF shock for electrostatic protection
• 2KW pep
• SO239
• Height: approx. 4.5 m
• Max. loaded radial length = 2m
• Weight = 5Kg
• Wind surface area = 0.14m2
• Maximum wind speed = 130km/h
• Accepts 40-50mm mast (60mm on request)

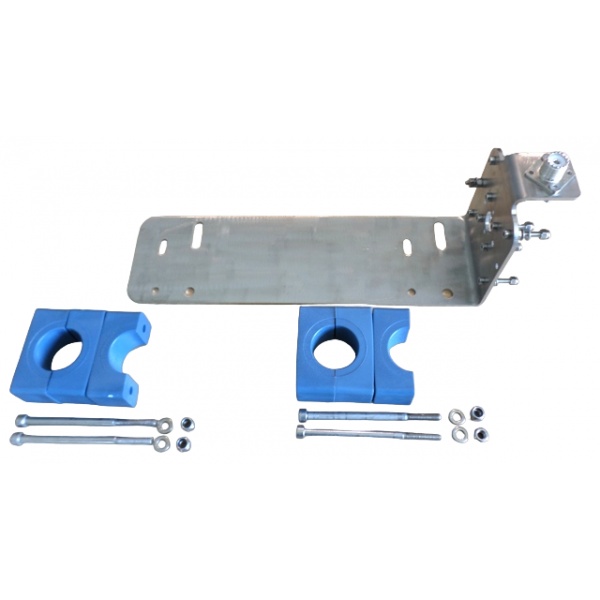

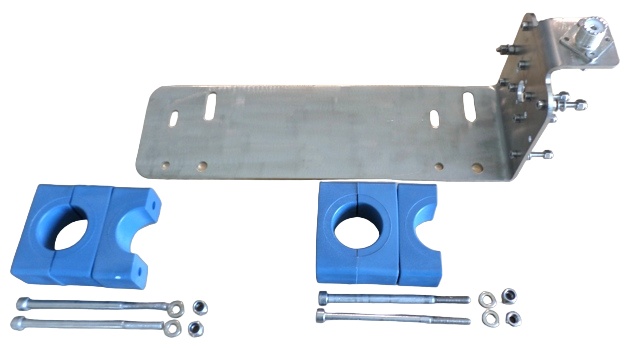

• Aluminium 6060T6, stainless steel bracket and hardware.
