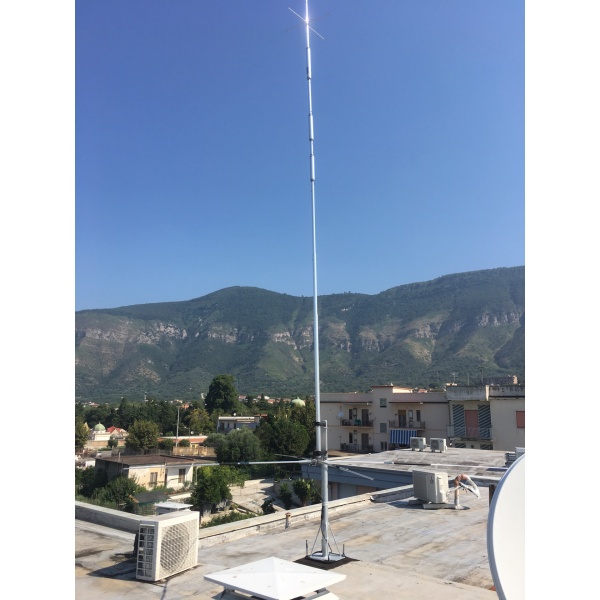

PST-1524VC vertical multiband antenna for 10 15 20 and 40m ProSisTel

Specifications

• Multi-band 10-15-20-40m vertical antenna with loaded rigid radials.
• Maximum length of rigid radials = 2m
• Band width
• 40m = approx. 150Kc/s
• 20m = approx. 250Kc/s
• 15m = total coverage
• 10m = approx. 800Kc/s

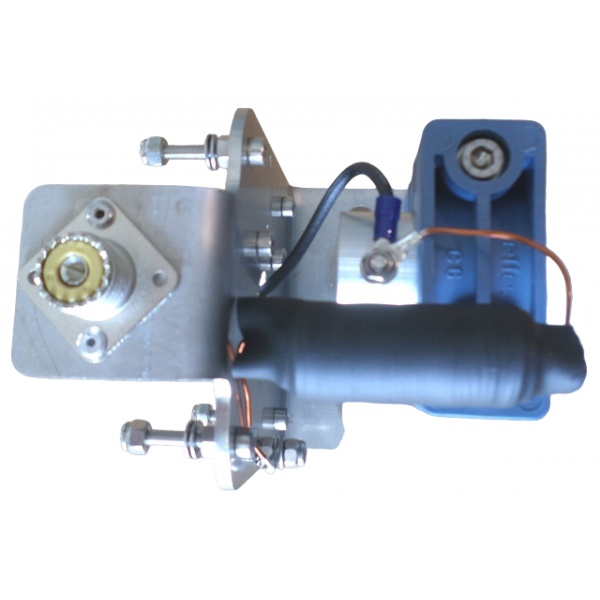

• RF shock for electrostatic protection
• 2KW pep
• SO239
• Height: approx. 6m
• Max. loaded radial length = 2m
• Weight = 5Kg
• Wind surface area = 0.15m2
• Maximum wind speed = 130km/h
• Accepts a 40-50mm mast (60mm on request)
• Aluminium 6060T6, stainless steel bracket and hardware.
