> Radio Antennas>HF 0-30 Mhz>HF Vertical>Grazioli HW20V 1/2λ 20m vertical half wave antenna for 14 MHz
Reduced price!

-3%

Grazioli HW20V 1/2 λ 20m 3 kW vertical antenna View larger
Previous Next

GRAZIOLI ANTENNE

GRAZIOLI-HW20V-1867

New product

Italy

Grazioli HW20V 1/2λ 20m vertical half wave antenna for 14 MHz

rating No review at the moment

Grazioli HW20V 1/2λ 10.7m vertical antenna designed to be base fed for the 20m (14MHz) band and can be tuned using a PTFE insulated high voltage variable capacitor.

Manufactured from AW6063-T66 aluminium alloy, this antenna is extremely robust and durable. Quality stainless steel fasteners ensure long, rust-free service.

This antenna can handle a high input power of up to 3 kW in continuous mode.

Delivered with: 1 CB Grazioli HW20V antenna and 1 guy rope with 3 fasteners. Manual in English to download below.

Delivery info: This antenna is considered a large package and carriers apply an extra charge for shipping.

More details

217,44 € tax excl.

224,17 €

This material is no longer available and we don't know if and when we will have it again.

Download

Manuel HW20V (EN)

3.99M

Data sheet

Technical specifications :

  • Frequency range: 20m band - Full coverage
  • Type: 1/2 λ vertical dipole powered at the base
  • Impedance: 50Ω unbalanced
  • Radiation: omnidirectional
  • Polarisation: vertical - linear
  • Gain: 0 dBd (2.15 dBi)

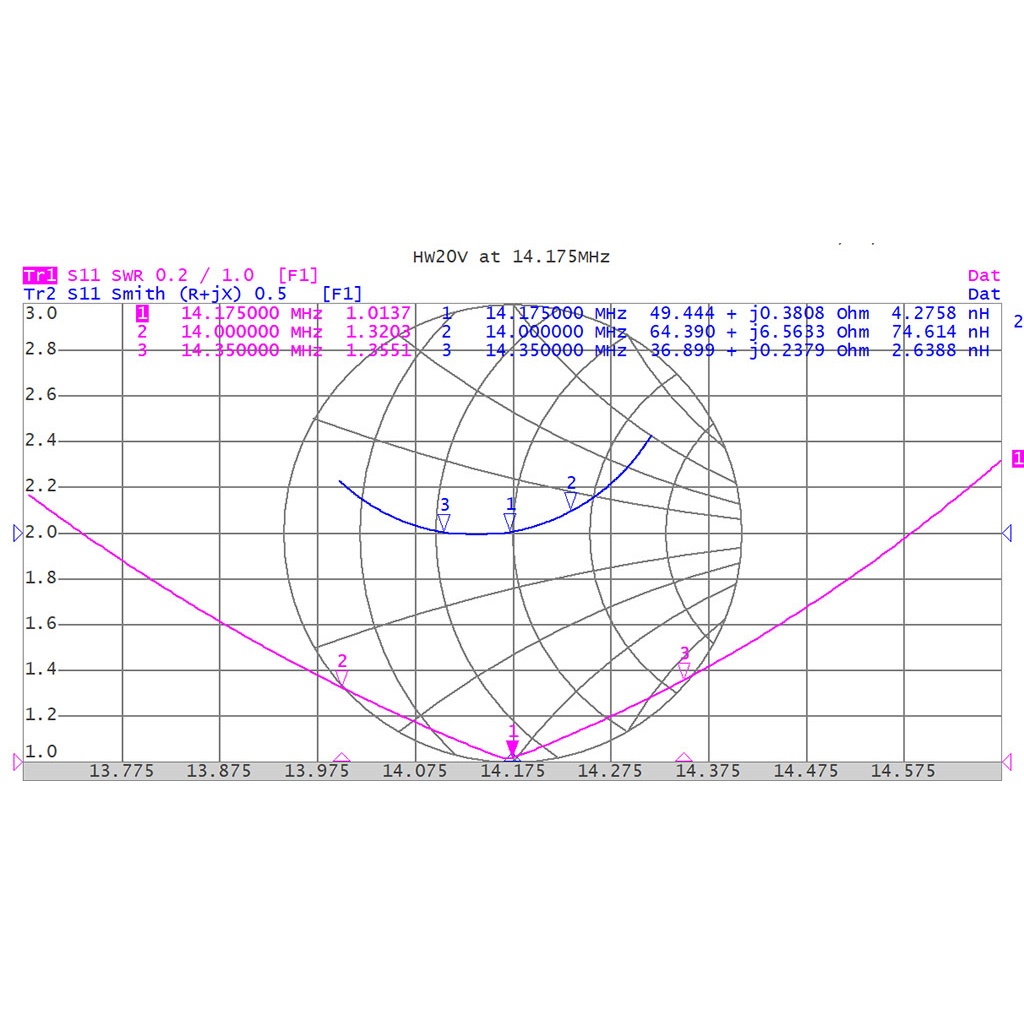

  • SWR at resonance: ≤1.2:1 Typical ≤1.1:1
  • Maximum applicable power: 3000 Watts continuous all transmit modes

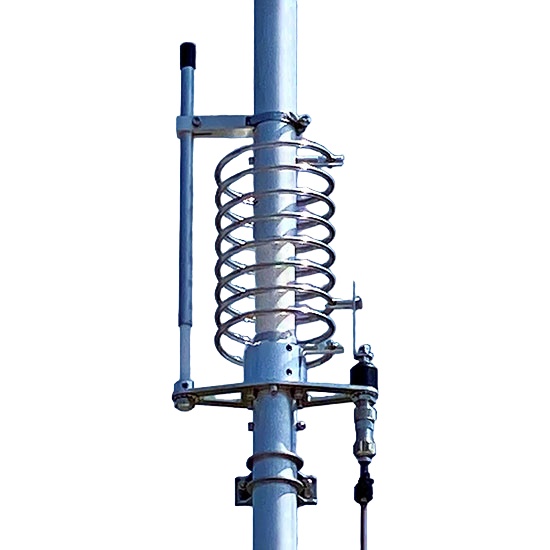

  • Power System: High "Q" LC circuit - DC grounded

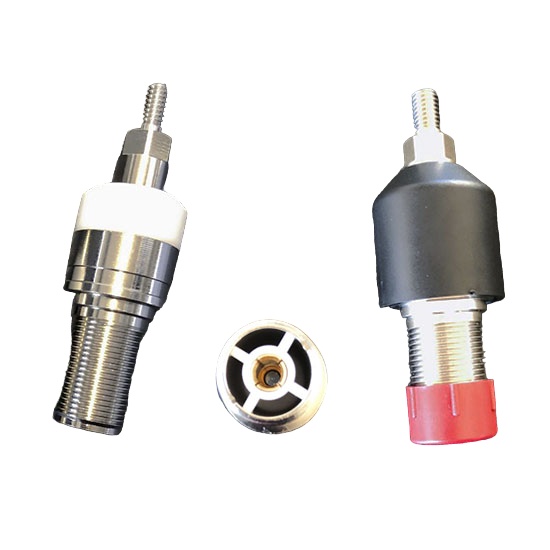

  • Connector: UHF female (SO-239) with PTFE insulation, gold-plated centre pin

Specifications:

  • Materials: AW6063-T66 aluminium alloy cold drawn tube, fibreglass, brass, PTFE, all screws are AISI-304 and 316 stainless steel
  • Wind surface: 0.265m2
  • Wind resistance: 130 Km/h (guyed)
  • Total height: 10.13m (half-wave)

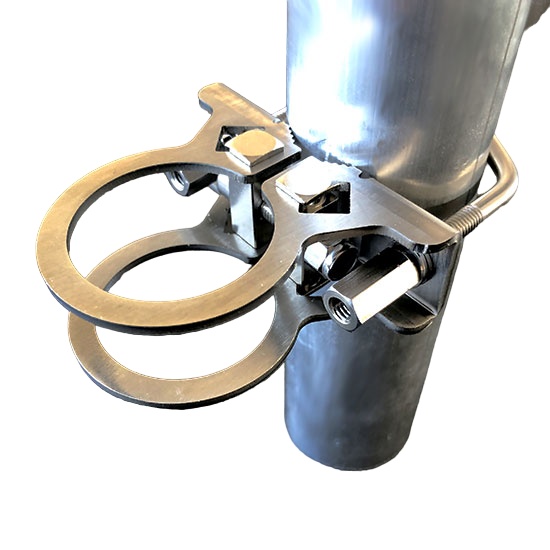

  • Mast mounting: ø 40-54 mm
  • Net weight : 5,4 Kg

Warning: Installing this product near high voltage lines is dangerous. Follow the instructions for your safety.
