Mobile antennas 10 bandes HF-EXPLORER-2 80/40/30/20/17/15/12/11/10/6m View larger

Komunica

KOM-HF-EXPLORER2-1212

New product

Spain

Mobile antennas 10 bandes HF-EXPLORER-2 80/40/30/20/17/15/12/11/10/6m

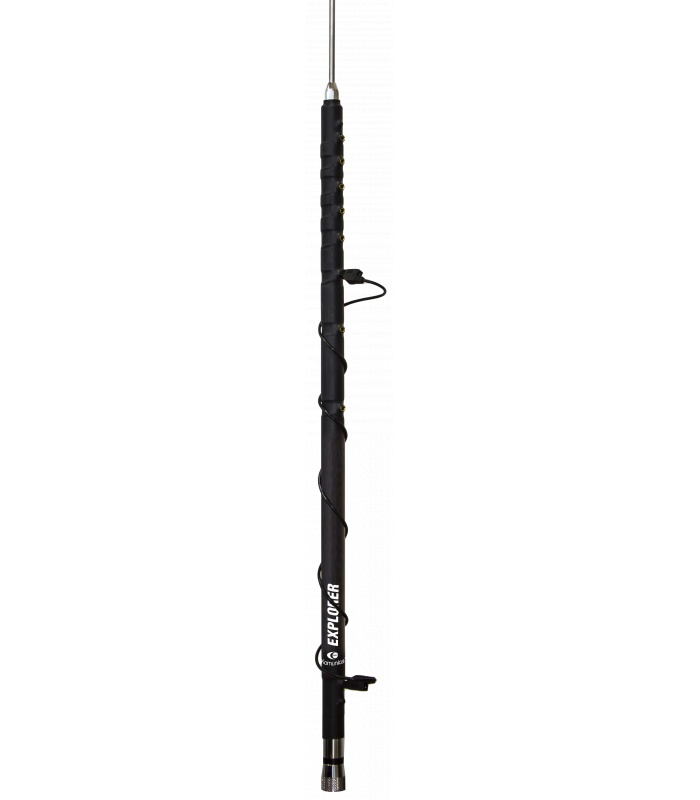

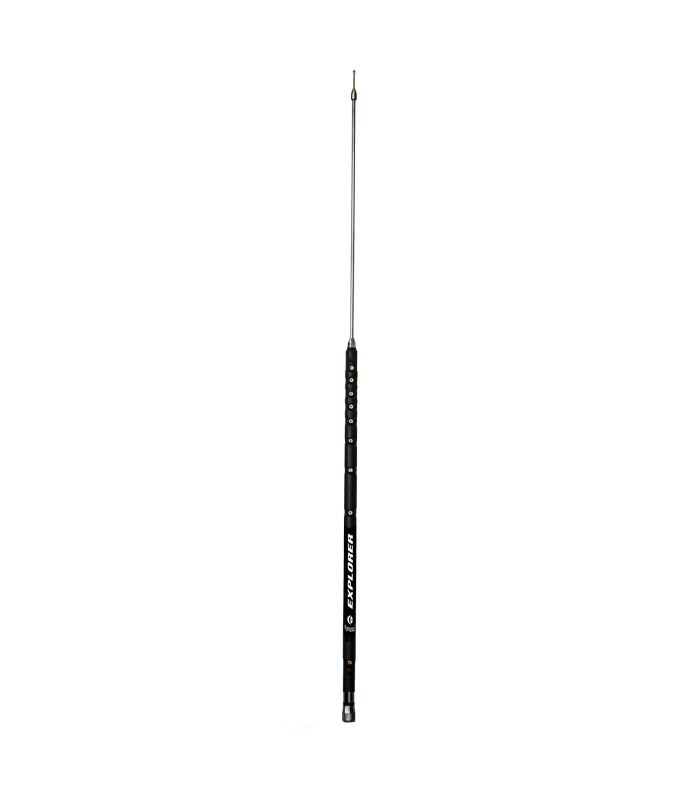

Multiband antenna from 3.5 to 50 Mhz Komunica HF-EXPLORER-2 for portable use on HF bands 80/40/30/20/17/15/12/11/10/6m, in transmission and reception.

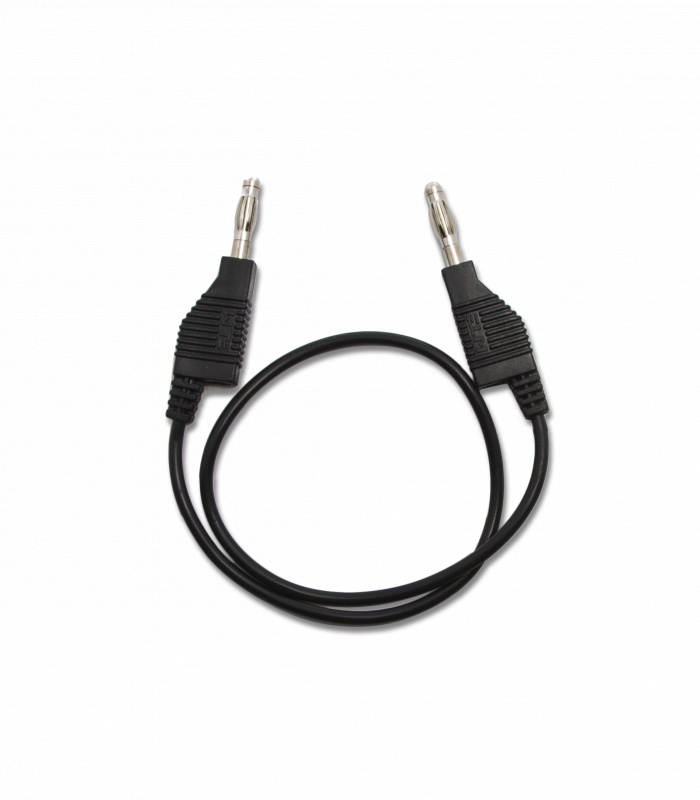

Adjustable by telescopic strand and banana plug.

RX and TX frequencies :
80 m 3,50 MHz
40 m 7,00 MHz
20 m 14,00 MHz
17 m 18.00 MHz
15 m 21.00 MHz
12 m 24.90 MHz
11 m 27.00 MHz
10 m 28.50 MHz
6 m 50.00 MHz
Max Power: 200W (SSB)
Height: 1.17 - 1.56m
Weight: 610g

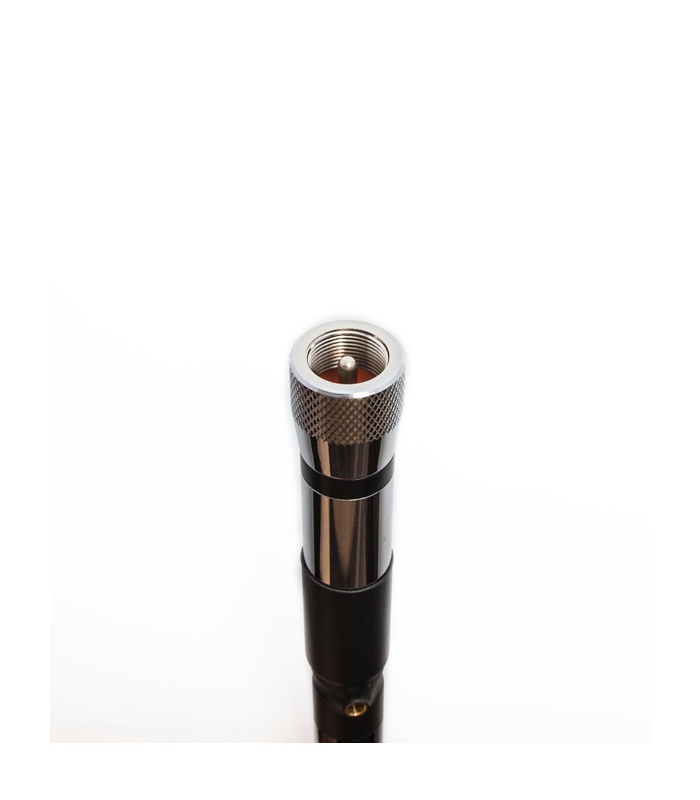

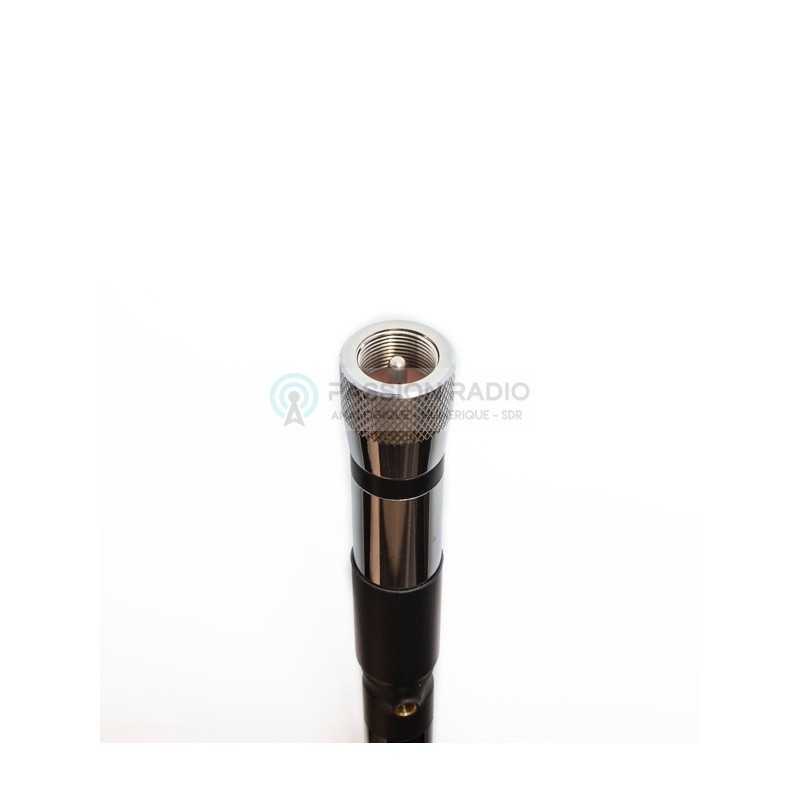

Connector: SO-239
Type: 1/4 wave reduced for HF bands, 1/4 wave on 50Mhz
VSWR: Less than 1.5:1
Gain: 0dBi
Impedance: 50Ω

Comes with : Komunica HF-EXPLORER-2 antenna.

More details

87,00 € tax incl.

In stock

Download

Data sheet

The Komunica HF-EXPLORER2 antenna is suitable for portable use and requires a good ground plane to work properly.

If a ground plane is not possible, we recommend in this case to use a coaxial cable with a minimum length of 10 meters to act as a counterweight.

The Explorer HF antenna can also be mounted on a metal balcony by ensuring good conductivity and grounding between the antenna and the balcony.

This antenna is not recommended for mobile use.
