Home > Radio Antennas > Wide-band > Multiband mobile Ant. > Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Black or RED
Reduced price!

-3%

Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003 View larger
Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003
Previous
  • Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003
  • Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003
  • Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003
  • Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003
  • Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003
  • Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Komunica Mobile KOM-HFPRO1-1003
Next

Komunica

New product

Spain

Safety Information +

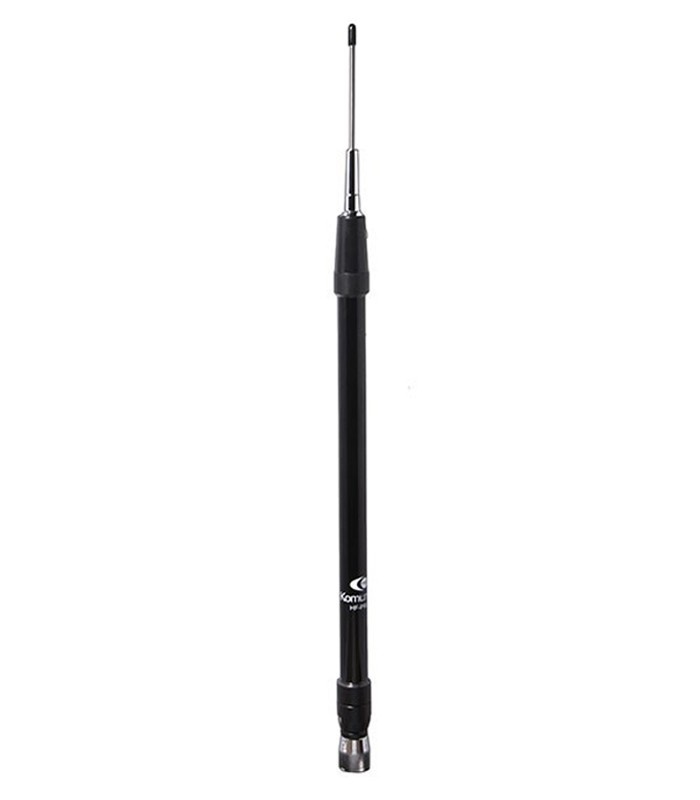

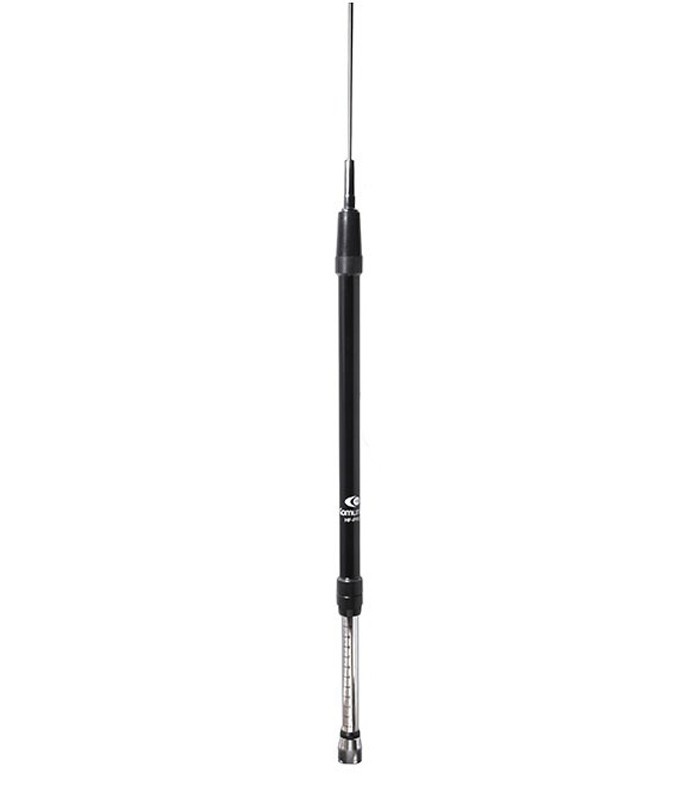

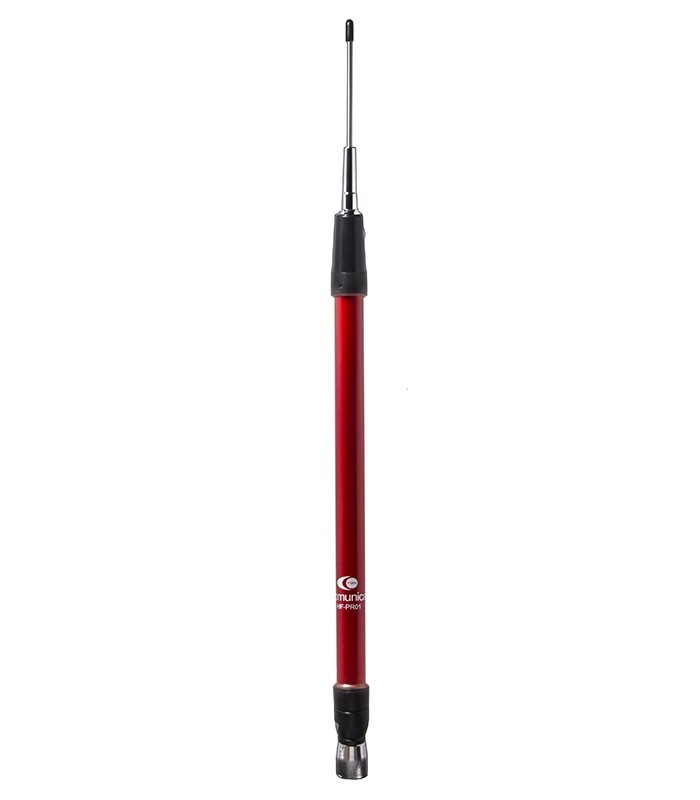

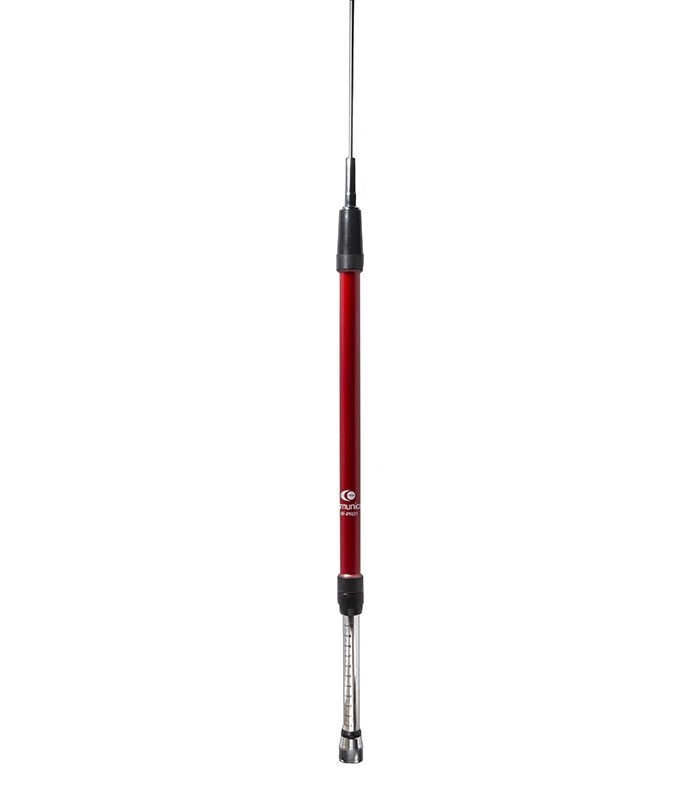

Mobile multiband antenna 7-430Mhz Komunica HF-PRO 1 Black or RED

rating Read the 7 reviews
Average rating: 4.5/5 Number of reviews: 7

Multiband antenna from 7 to 430Mhz Komunica HF-PRO-1 & RED for mobile and portable operation for HF, 50Mhz, VHF-UHF.


Adjustable by sliding tube at the base.

  • RX and TX frequencies: 7 - 430MHz
  • Max Power: 130W (SSB)
  • Height: 0.5 to 1.77m max.
  • Weight: 300g

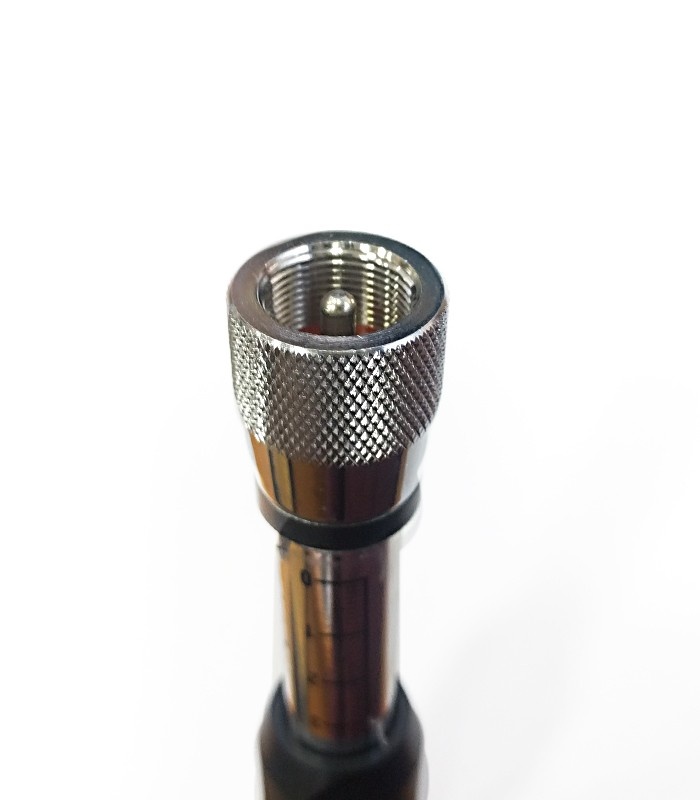

  • Connector: PL-259 (UHF Male)
  • Type: 1/4 wave reduced for HF bands, 1/4 wave on 50Mhz/144Mhz and 5/8 144/430Mhz
  • 144MHz band can be operated at both 1/4 wave and 5/8 wave depending on the lenght of the additional element used.
  • ROS: Less than 1.5: 1
  • Impedance: 50Ω
  • Material: FRP reinforced fiberglass
  • Color : Black or red

Supplied with: Komunica HF-PRO 1 antenna. Available in black or red, choose below.

More details

80,45 € tax excl.

82,94 €

In stock

   10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manuel HF-PRO1 (FR)

307.79k

Data sheet

Komunica HF-PRO 1 antenna is usable in portable, on a magnetic base (with ground plane), in mobile (BUT NOT DRIVING) and requires a good ground plane to work properly.

If a ground plane is not possible, we recommend in this case to use a coaxial cable with a minimum length of 10 meters to act as a counterpoise.

The HF-PRO1 antenna can also be mounted on a metal balcony by ensuring good conductivity and grounding between the antenna and the balcony.

The use of an automatic antenna tuner is recommended with this antenna.
