Omnidirectional vertical antenna for outdoor...

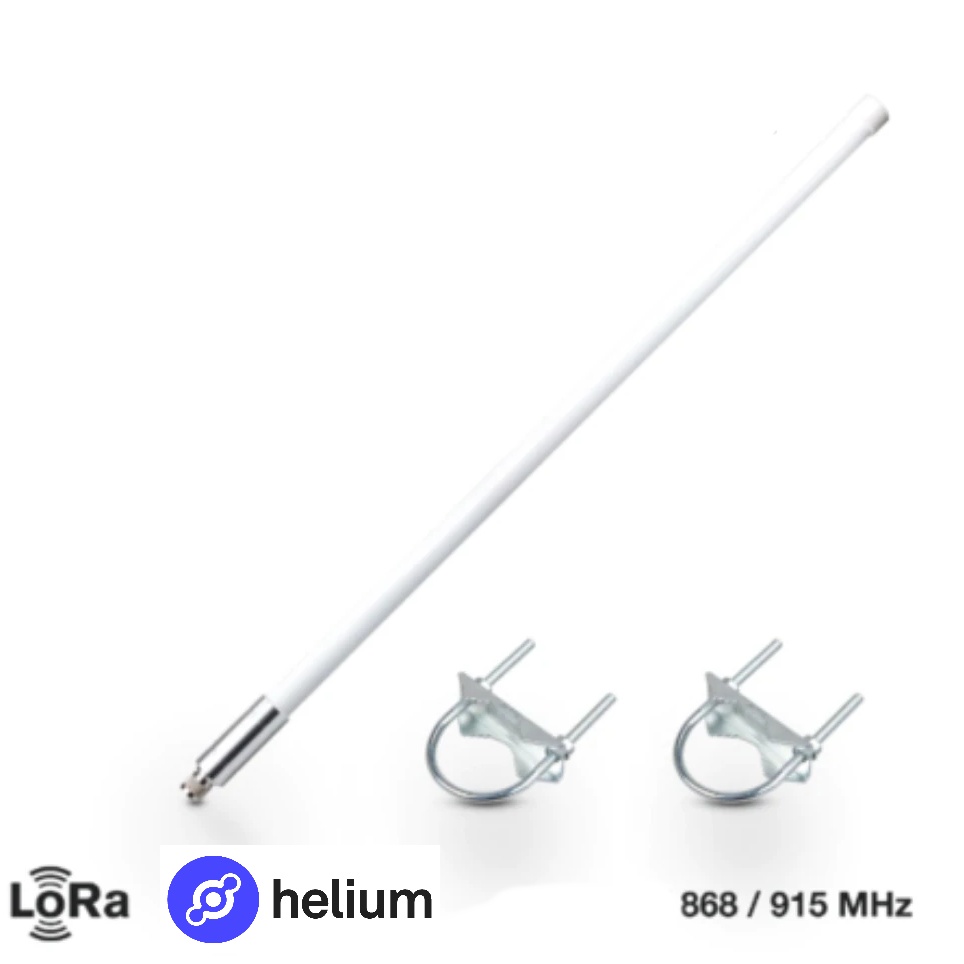

Omnidirectional vertical antenna for outdoor use, for transmission and reception on the ISM 868 MHz band (eg LoRa, LoRawan, Helium hotspot, Sigfox), with a gain of 5.8dBi, length of 50cm and N Male connector.
A mast bracket is included to facilitate installation on a 35-70mm diameter mast.
Supplied with: 1 Nebra fixed antenna for helium hotspot and devices on the 868 Mhz band, with fixing bracket.
Other recommended model for helium hotspot: Tuned HNT antenna 868 MHz 4.4dBi
Compatible frequency: 868 MHz and 915 MHz ISM band
Antenna type: Dipole
UV resistant fiberglass radome
Color: Grey or white depending on availability
Connector: N male
Type of installation: 35-70 mm diameter mast with bracket supplied
Gain: 5.8 dBi (3.65dB)
Length : 50cm
Operating temperature : -40°C to +60°C
Polarization Type: Vertical
Maximum power: 20W
Impedance: 50 Ohms
Compatible: LoRawan (Lora), Sigfox, Zigbee and Helium HNT hotspot networks (Sensecap M1, Nebra, RAK miner, etc.)
2 years warranty
