> Coaxial cables>HYPERFLEX>Extension coaxial 7mm M&P ULTRAFLEX7 with N male connector
7mm M&P coaxial ULTRAFLEX7 with N male connector View larger
Previous Next

Messi & Paoloni

New product

Italy

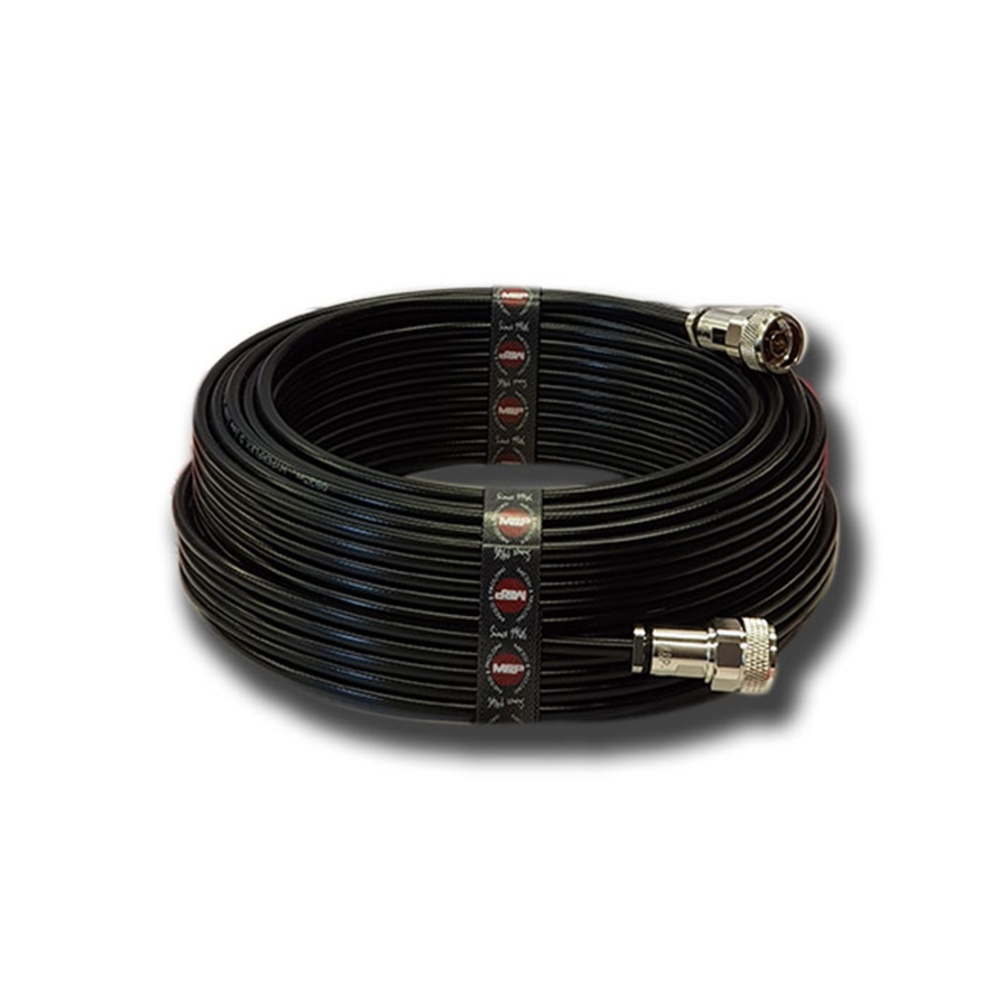

Extension coaxial 7mm M&P ULTRAFLEX7 with N male connector

rating Read the 9 reviews
Average rating: 5/5 Number of reviews: 9

Ready to use extension coaxial cable with N Male connector Messi & Paoloni, 7mm diameter with M&P ULTRAFLEX 7 cable, very flexible and offering excellent performance with lower attenuation compared to RG213 cable.

The N Male connectors are designed to provide perfect protection against water ingress, moisture and condensation.

Available in different sizes: 2m, 5m, 10m and 20m (choose below).

Weight in 2m : 0,239 Kg
Weight in 5m : 0,445 Kg
Weight in 10m : 0,790 Kg
Weight in 20m : 1,500 Kg

Cable manufactured and tested by M&P, class A++, usable from -40°C to +60°C, CE and RoHS standards.

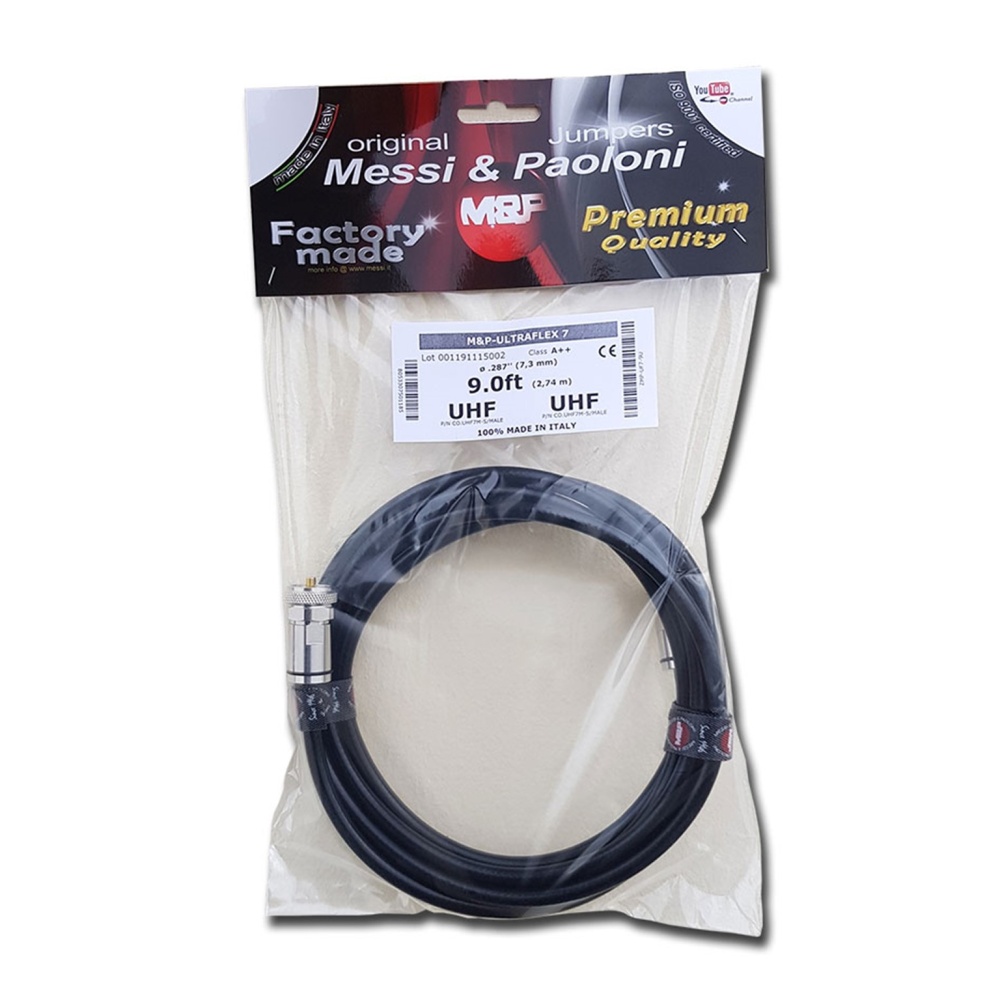

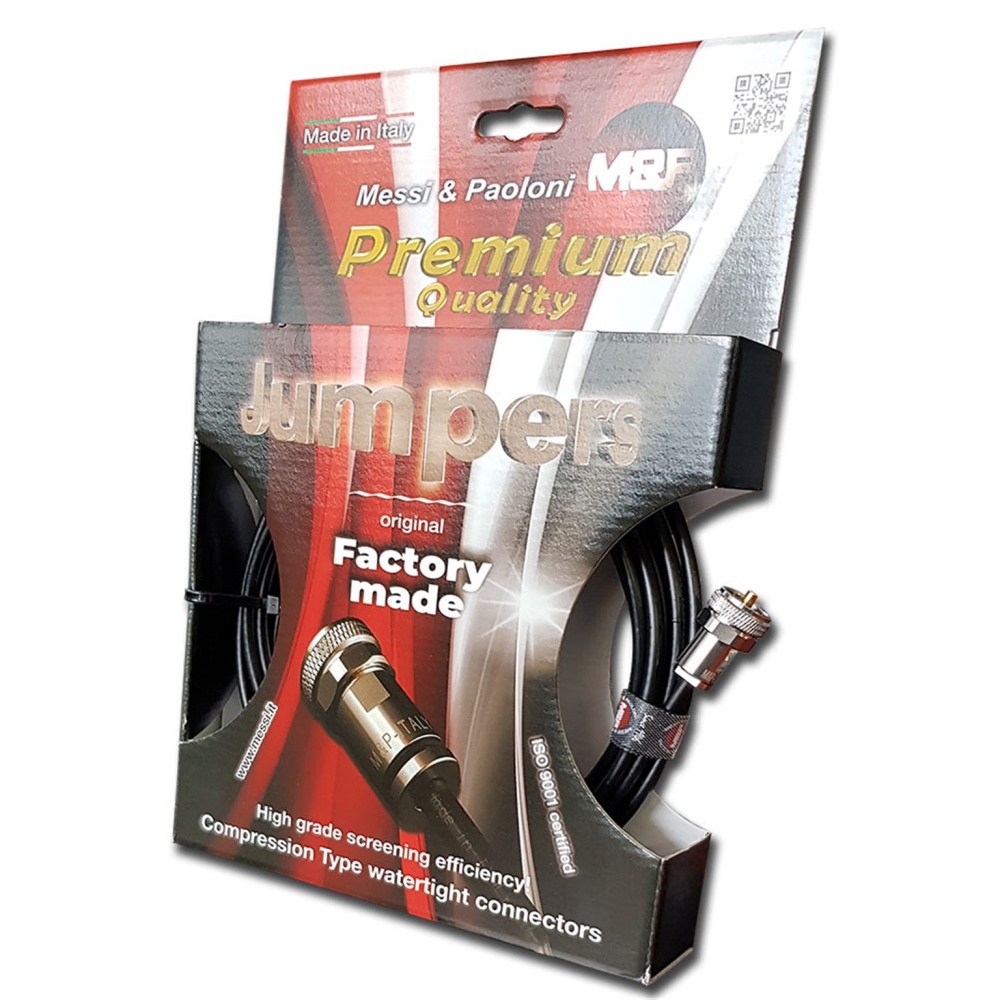

The packaging changes according to the diameter of the cable and the quantity in meters. Images are for demonstration purposes only.

Supplied with velcro fasteners.

More details

37,90 € tax excl.

In stock

   4 Items

  • 2m
  • 5m
  • 10m
  • 20m
  • 30m

Data sheet

Connector 1: N Male
Connector 2 : N Male
Impedance at 200Mhz : 50 Ohms
Minimum bending radius: 34 mm
Operating temperature : -40°C to +60°C
Capacitance: 75 pF/m ± 2
Velocity: 83%.
Class: A++
Internal conductor resistance: 7.3 Ohm/Km
Outer conductor resistance: 9.8 Ohm/Km
Voltage test (spark test) : 4 kV
Maximum peak power: 8000 W
CE and Rohs standards.

Net weight on 100m : 6,9 Kg

Attenuation at 20°C in dB/100m

1.8 MHz 1.1
3.5 MHz 1.3
7 MHz 1,7
10 MHz 1,9
14 MHz 2.2
21 MHz 2.6
28 MHz 3.0
50 MHz 4.0
100 MHz 5.8
144 MHz 6.9
200 MHz 8.2
400 MHz 11.8
430 MHz 12.3
800 MHz 17.1
1000 MHz 19.3
1296 MHz 22.3
2400 MHz 32.3
3000 MHz 36.2
4000 MHz 42.6
5000 MHz 49.3
6000 MHz 55.3
7000 MHz 61.6
8000 MHz 68.4

Maximum power at 40°C depending on frequency

1.8 MHz 4572 W
3.5 MHz 3393 W
7 MHz 2714 W
10 MHz 2286 W
14 MHz 1974 W
21 MHz 1670 W
28 MHz 1448 W
50 MHz 1086 W
100 MHz 749 W
144 MHz 629 W
200 MHz 530 W
400 MHz 368 W
430 MHz 353 W
800 MHz 254 W
1000 MHz 225 W
1296 MHz 195 W
2400 MHz 134 W
3000 MHz 120 W
4000 MHz 102 W
5000 MHz 88 W
6000 MHz 79 W
7000 MHz 71 W
8000 MHz 63 W
