Magnetic base Type N with LMR200 coaxial of 2m in RP-SMA Male View larger
Nebra

NEBRA-EMBASE-MAG-NBR-0038N-1532

New product

Magnetic base Type N with LMR200 coaxial of 2m in RP-SMA Male

rating No review at the moment

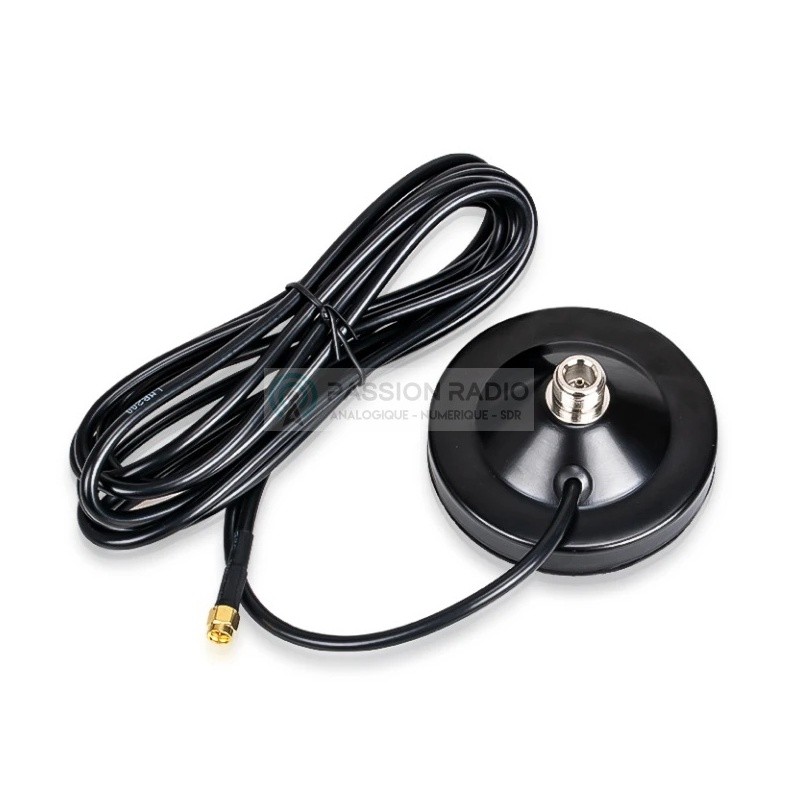

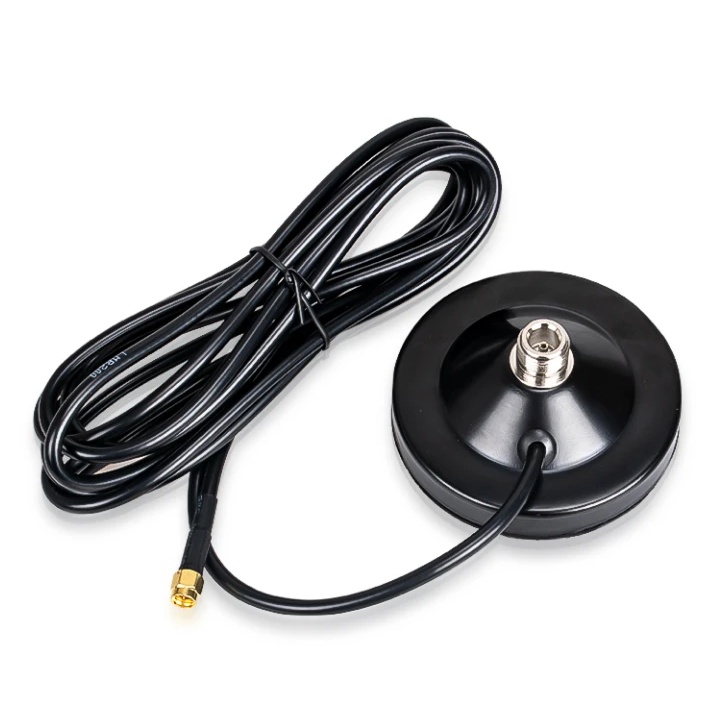

This magnetic base is used to fix an antenna with an N plug on a metal surface. Supplied with 2m LMR200 coaxial cable and RP-SMA male connector .

Frequency: 0 to 6GHz
VSWR: ≤ 2.0
Maximum input power: 2 watts
Impedance: 50 ohms
Coaxial cable type: LMR200
Connector 1: Type N female
Connector 2: RP-SMA male
Operating temperature: -40 ° C to + 65 ° C
Storage temperature: -40 ° C to + 80 ° C
LMR200 coaxial cable length: 2 meters

Supplied with: Nebra type N magnetic base with 2m coaxial cable with reversed SMA connector (RP-SMA Male).

More details

This material is no longer available

Data sheet

This magnetic base is compatible with the Helium 5.8dBi Nebra antenna and the Helium 8dBi Nebra antenna , as well as any antenna with N male connector, and RP-SMA female connector on the hardware side.

Compatible for use on the helium network with a minor HNT hotspot of the brands: Boobcat, Nebra, Sensecap M1, RAK.
