Rpi HAT LoRa Hotspot Helium extension and mounting card for Nebra IP67 box

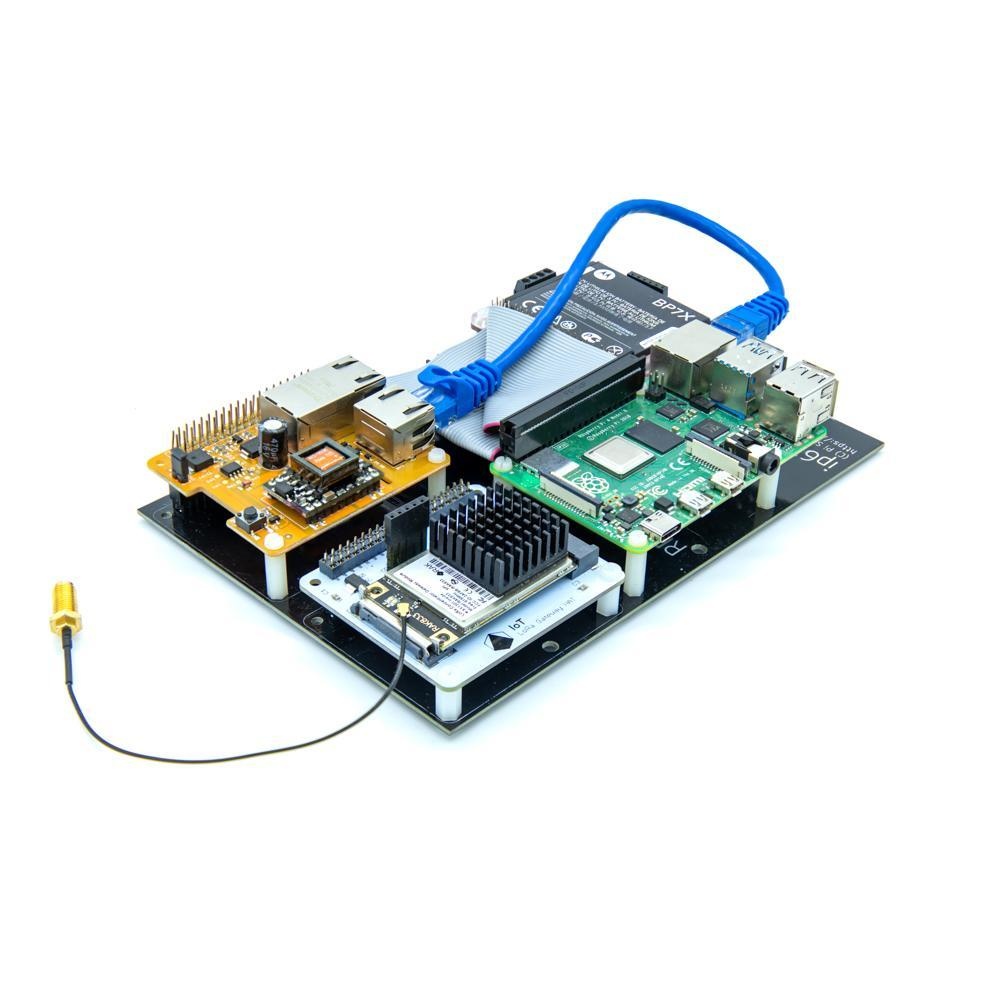

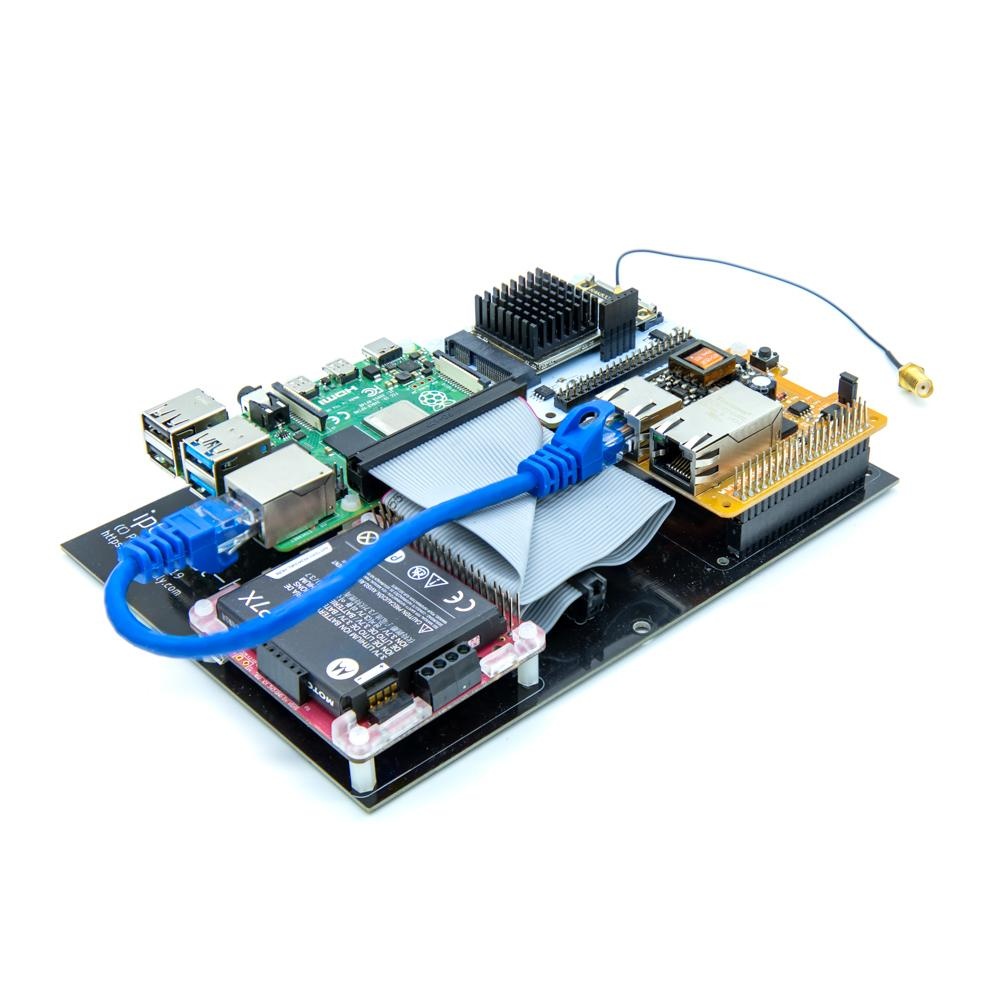

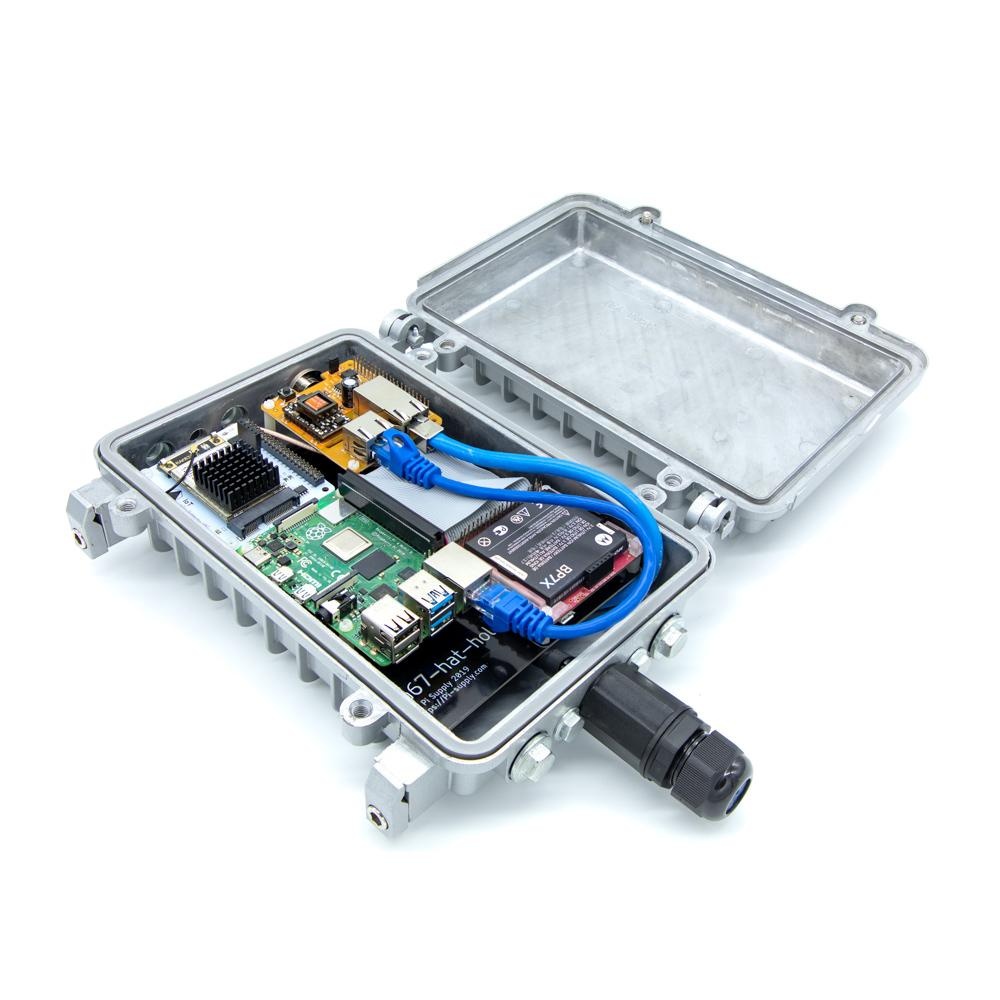

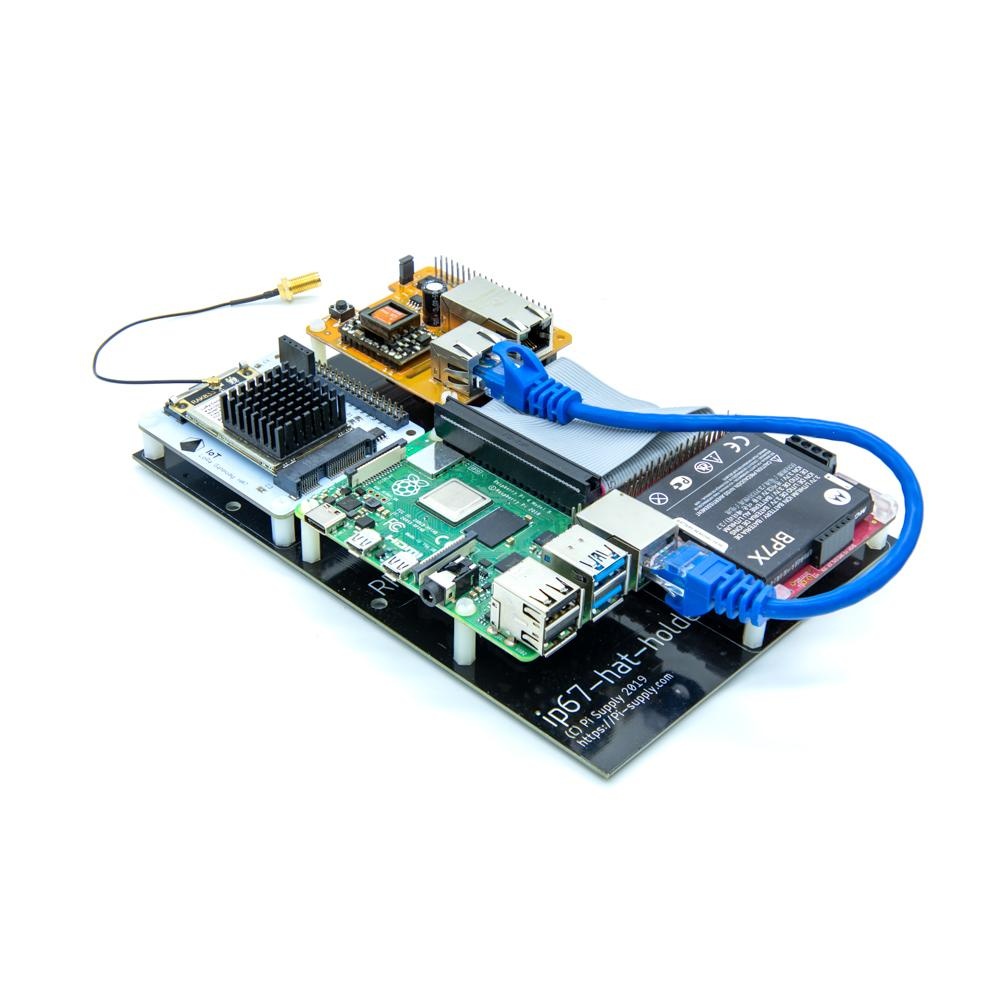

Raspberry Pi and three HATs riser board with this expansion board designed to fit inside the Nebra IP67 RF waterproof enclosure in conjunction with the HAT LoRa Gateway and two other Raspberry Pi expansion boards.

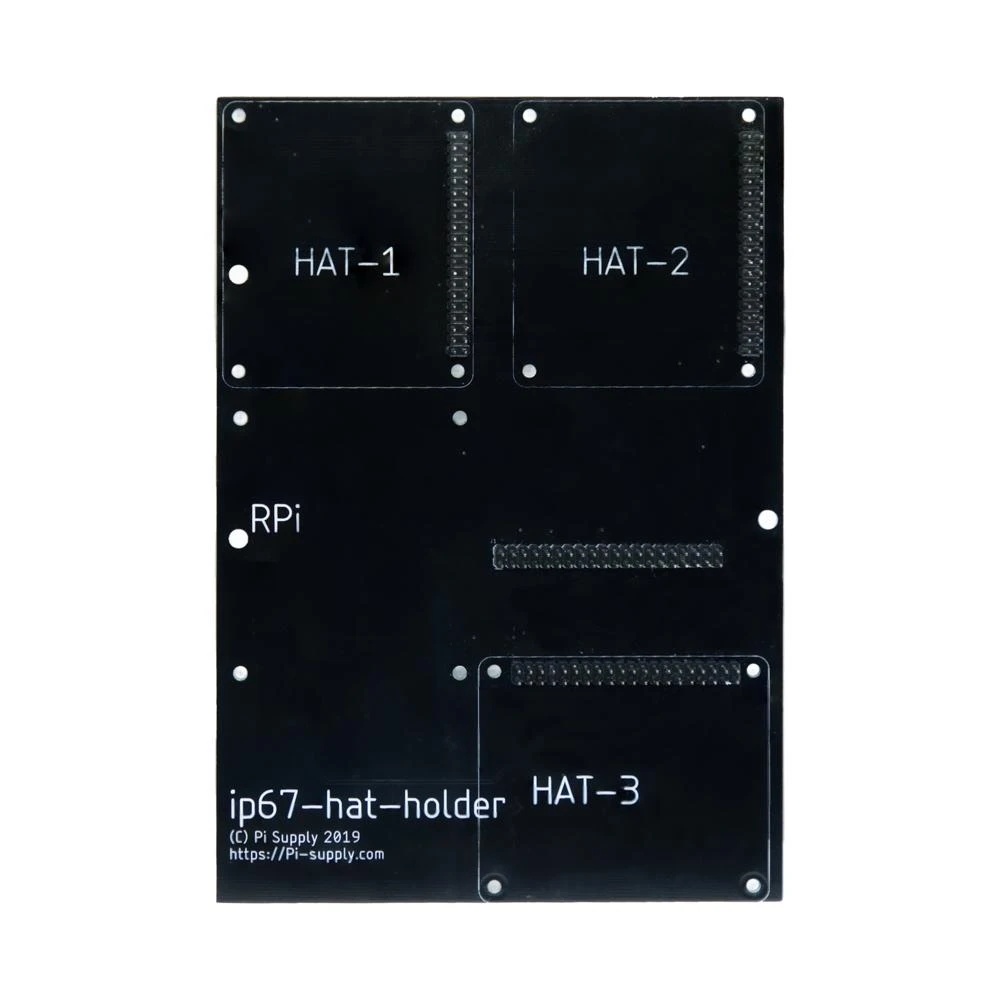

This board can mount up to 4 HATs and has 4 40 pin connectors - the standard connector used on a Raspberry Pi.

3 of them can be used to stack Raspberry Pi HATs and for the fourth you can connect a GPIO ribbon cable from it to the Raspberry Pi.

Dimensions: 18.25 x 12.65 cm (PCB only)
Weight: 95g

Supplied with: 1 Mounting extension card, 1 200mm GPIO ribbon cable, 1 Ethernet cable with 200mm RJ45.

How to assemble your hat holder for the Nebra IP67 enclosure .

More details

Data sheet

Datasheet nRF52840 EBYTE E73

ARM Cortex-M4F processor
1.7 V to 3.6 V operating voltage
1024 KB of flash memory + 256 KB of RAM
Output power +8 dBm (6mW)
RF chip: nRF52840
Bluetooth BLE: 4.2 and 5.0
Dimensions: 13 mm x 18 mm
Rohs, CE and FCC certified
