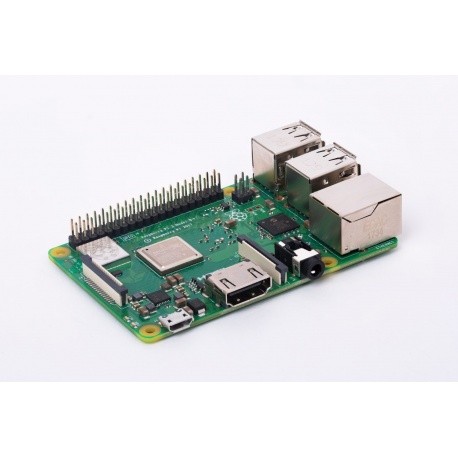

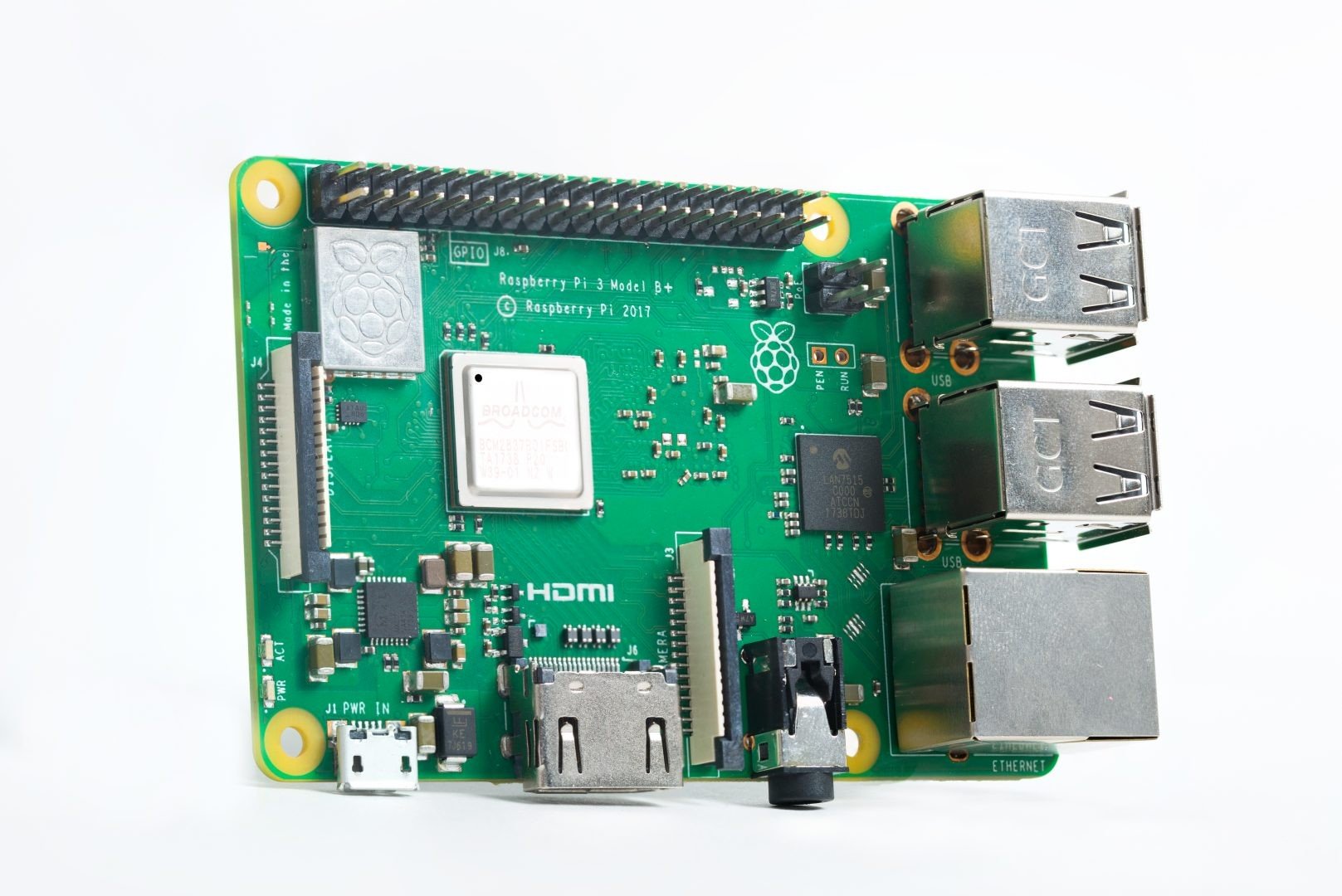

Raspberry Pi 3 B+ PLUS Quad Core 1.4Ghz WiFi Dual Band Bluetooth 1GB Raspberry Pi Raspberry Pi RASPBERRY-PI3-PLUS-09 View larger

Raspberry Pi

New product

United Kingdom

Raspberry Pi 3 B and B+ PLUS Quad Core WiFi Bluetooth 1GO HDMI FullHD Rpitx

rating No review at the moment

The Raspberry Pi 3 model B+ has a Quad Core processor, WiFi and Bluetooth Low Energy (BLE), making it even easier to develop RF radio and IoT applications.

  • 1 GB RAM memory
  • 802.11 Wi-Fi
  • Bluetooth Low Energy
  • 40-pin GPIO
  • 4 USB 2.0 ports
  • Stereo output (3.5mm jack) and composite video port
  • HDMI FullHD socket - VideoCore IV 3D GPU
  • RJ45 socket
  • Camera port, DSI display port for connecting a touch screen
  • Player Micro SD for operating system and data storage (max 64GB)
  • Power supply via micro-USB cable (not included, available as an option)

Officially supported operating systems for download at Raspberrypi.org : Raspbian, Windows 10 Core IoT, OpenELEC, OSMC, Arch Linux, RISC OS, Pidora.

Delivered with : Raspberry Pi 3 Model B or B+ board, choose below.

More details

41,19 € tax excl.

In stock

   3 Items

  • PI 3 model B
  • PI 3 model B+ (plus)

Data sheet

The differences between the Raspberry Pi 3 B and B+

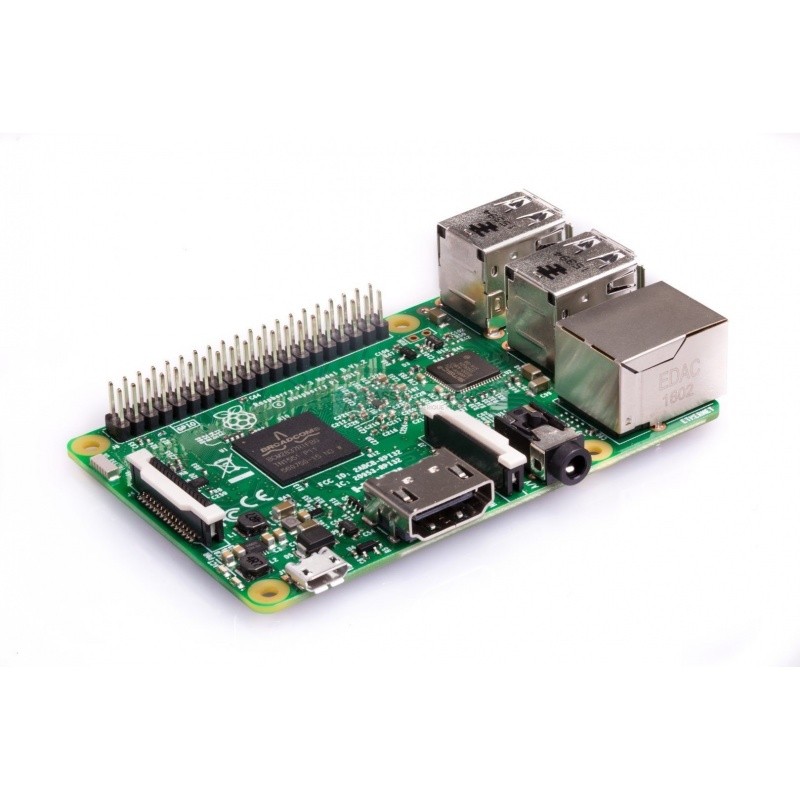

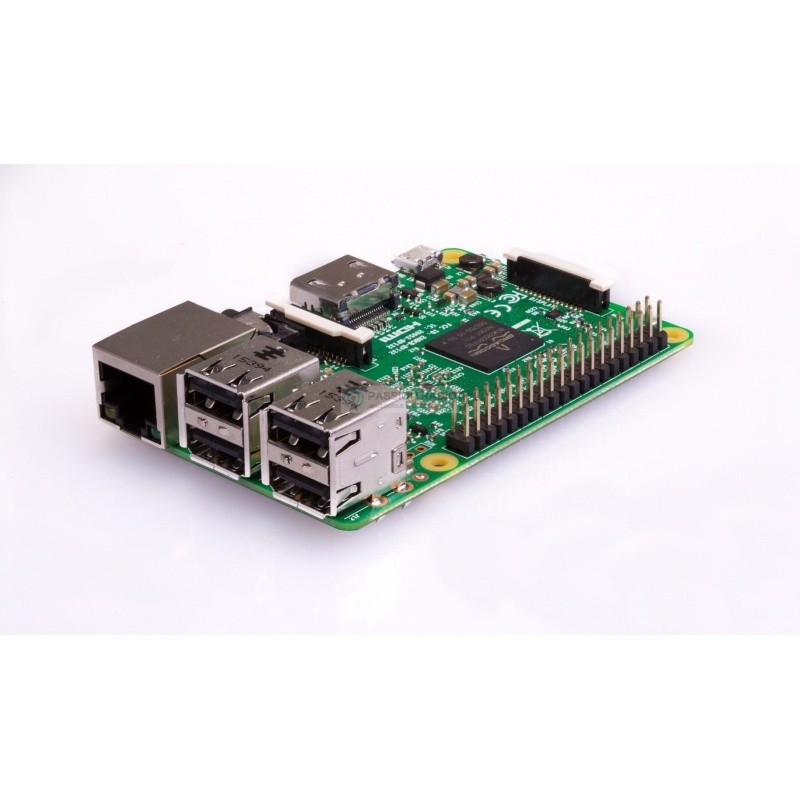

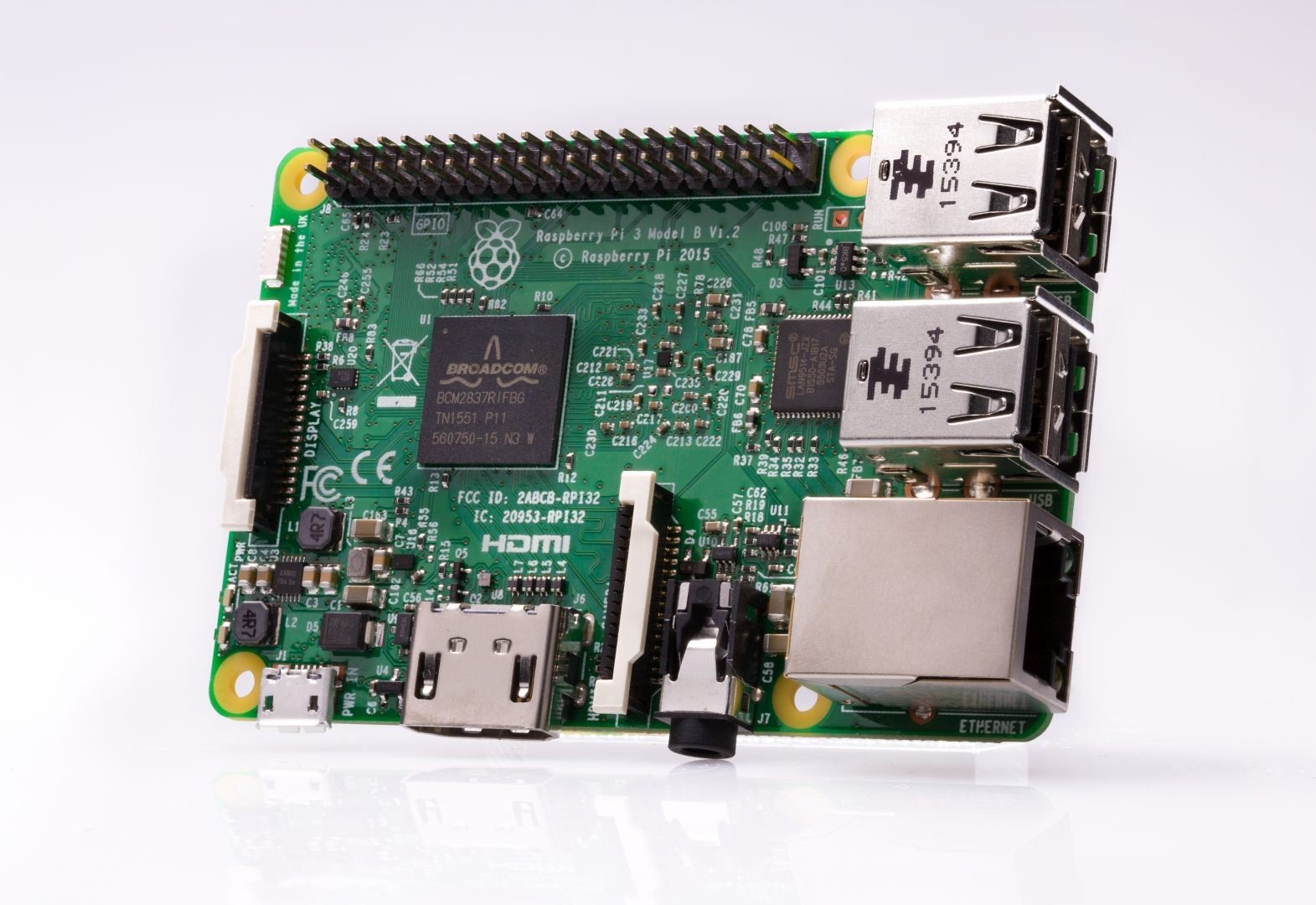

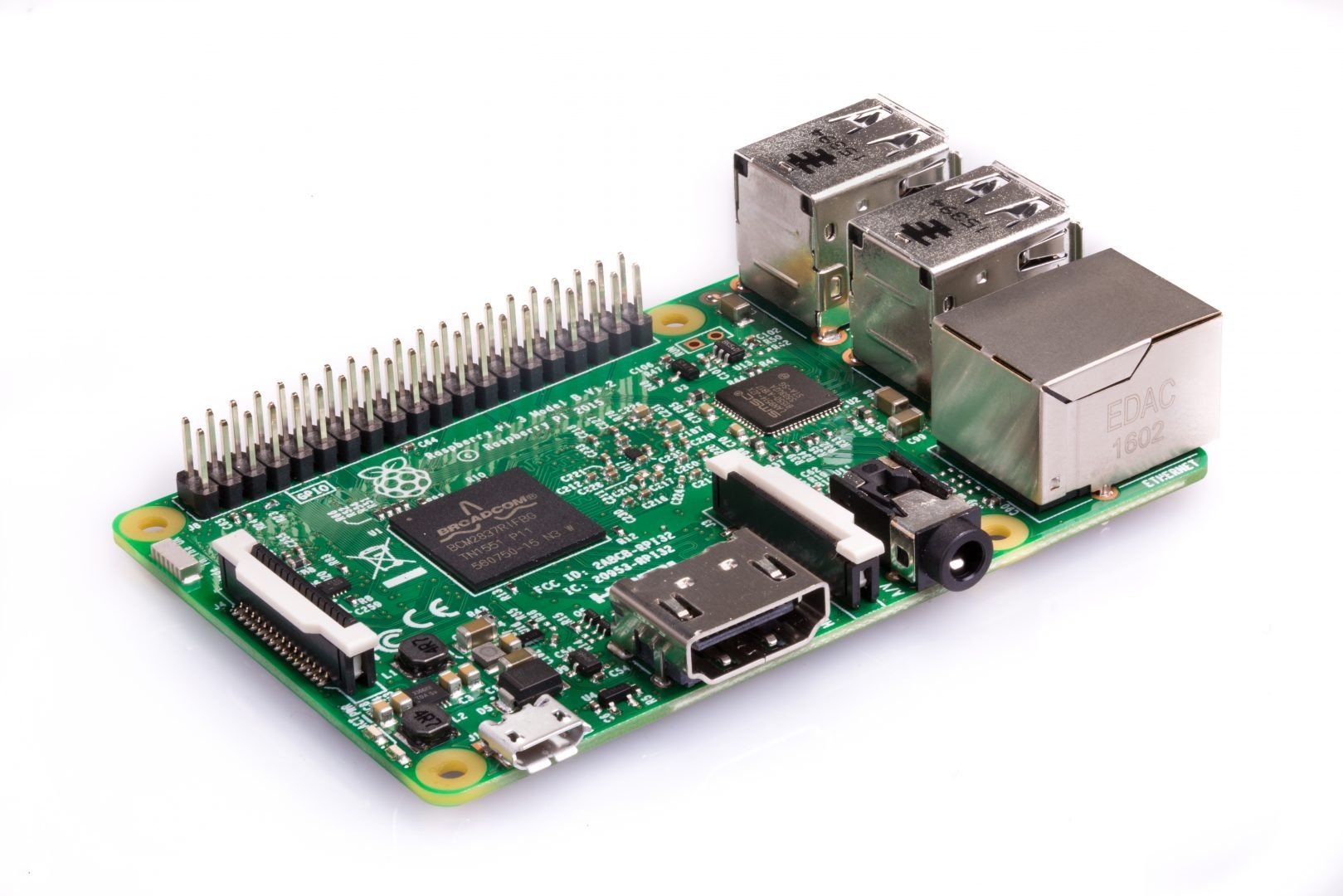

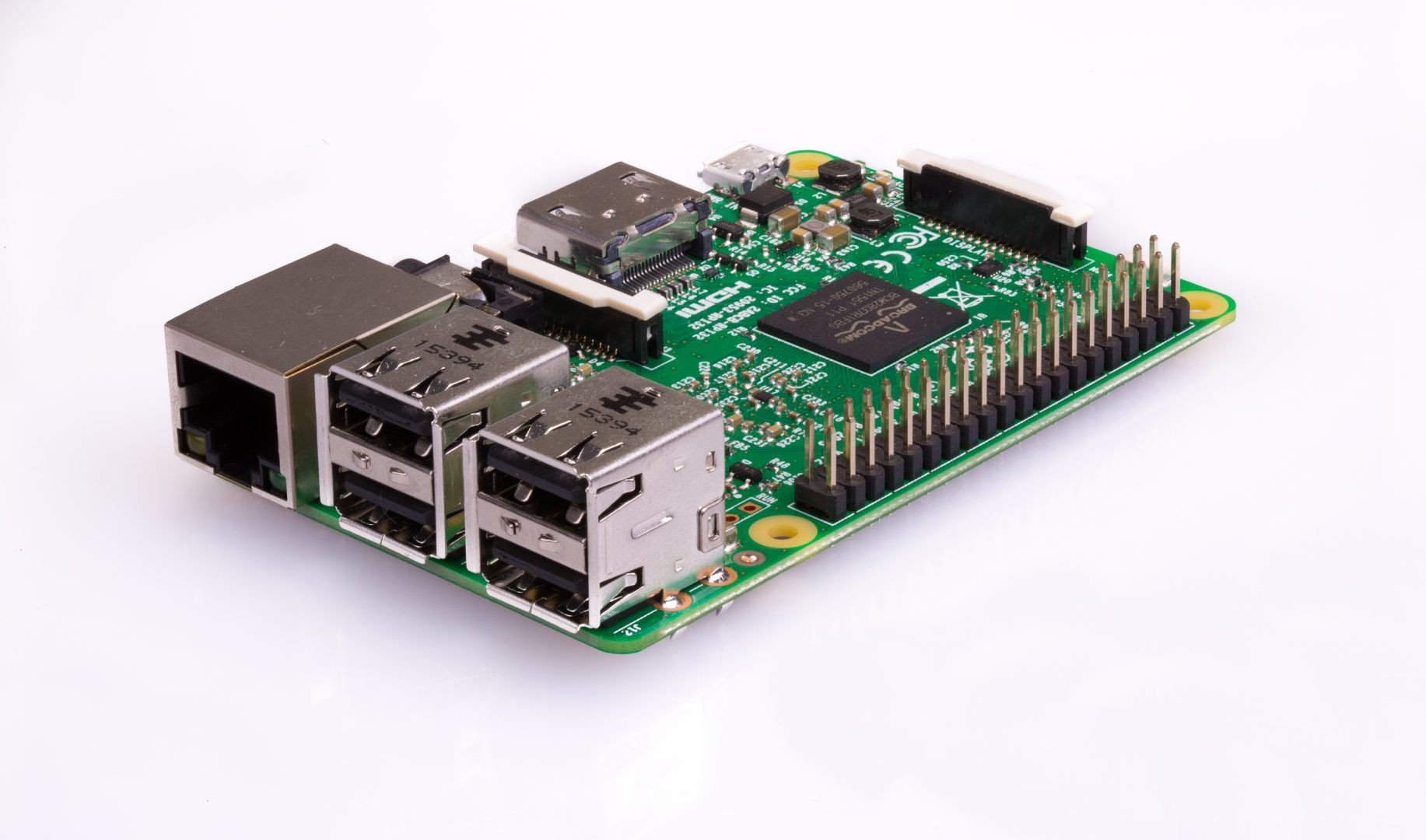

Raspberry Pi 3 B version

  • Quad-Core 1.2 GHz ARM Cortex-A53 CPU
  • WiFi 802.11 b/g/n (2.4GHz)
  • LAN RJ45 10/100 Mbit/s
  • Bluetooth Low Energy 4.1

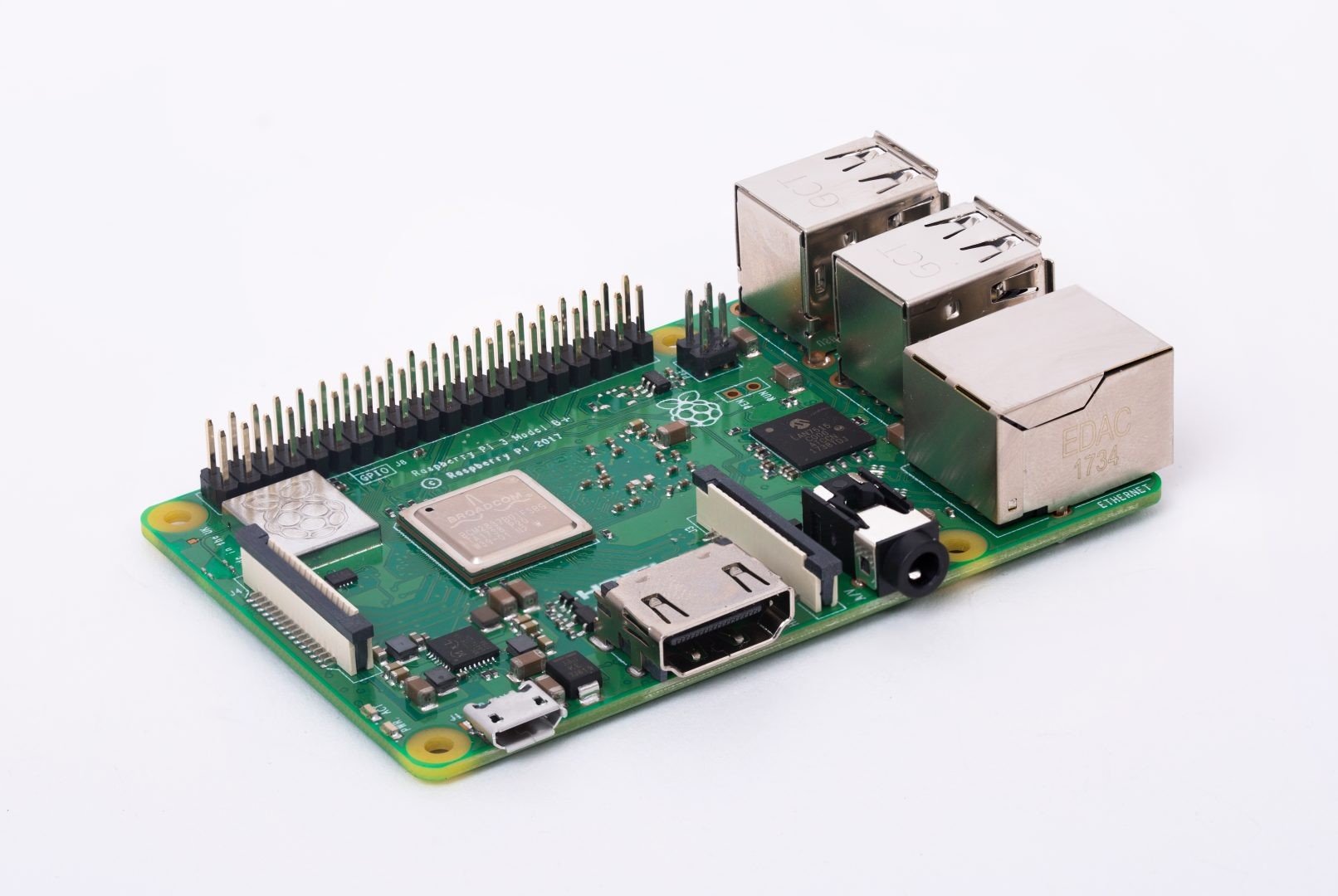

Raspberry Pi 3 B+ (plus) version

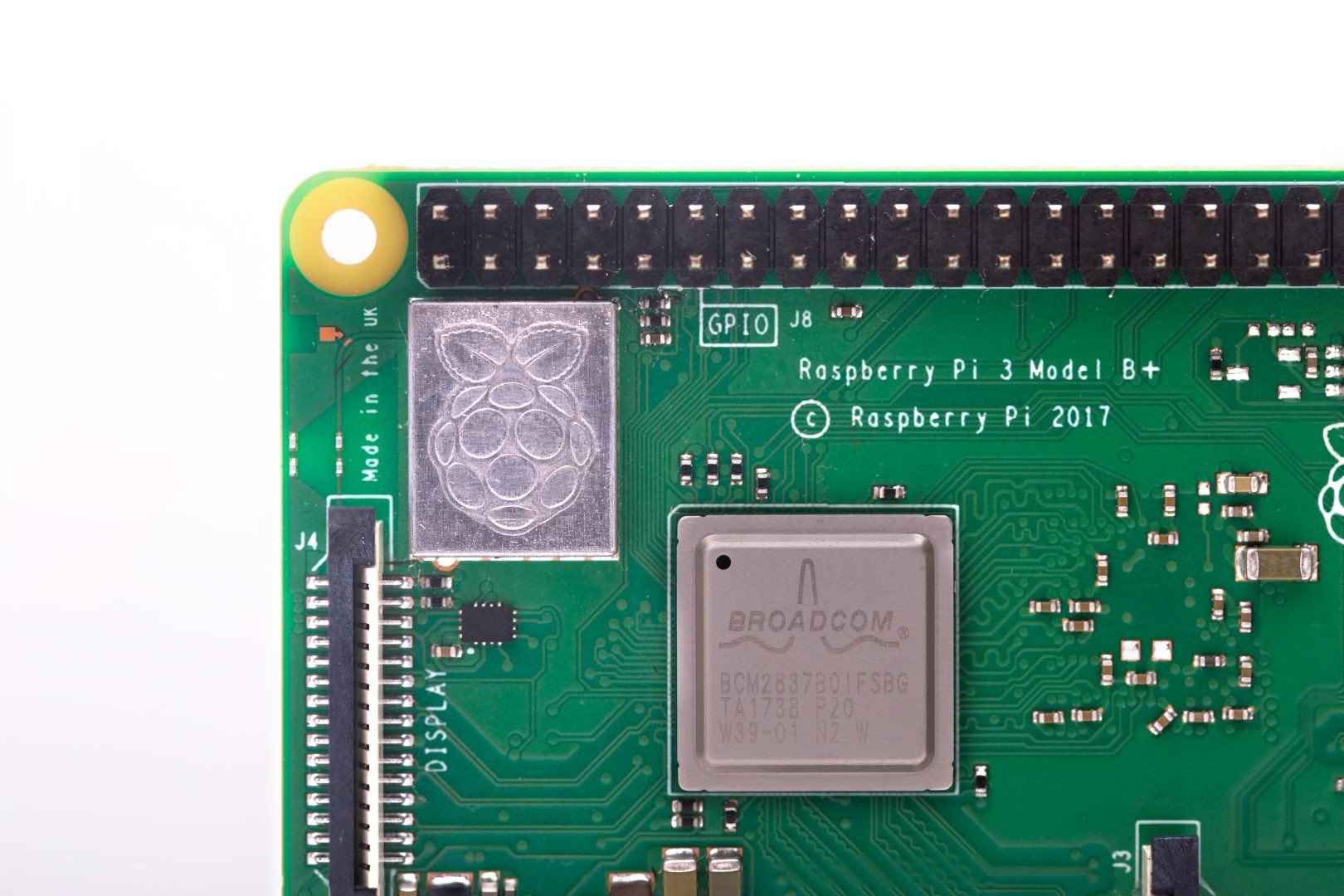

  • CPU Quad Core Broadcom BCM2837B0, Cortex-A53 64-bit 1.4GHz
  • WiFi 802.11 b/g/n/ac (2.4GHz and 5GHz)
  • RJ45 10/100/1000 Mbps LAN (Gigabit LAN USB 2.0 up to 300 Mbps) Power over Ethernet (PoE) compatible with PoE expansion card (optional)
  • Bluetooth Low Energy 4.2

Use a Raspberry PI as a radio transmitter with Rpitx

Thanks to the Rpitx software from F5OEO software, it is possible to use a Raspberry PI to transmit radio signals from 5khz to 500MHz (AM/FM/SSB/FSQ/SSTV), using the GPIO 18 extension (pin 12) to connect a wire that will act as an antenna. The length of the wire will depend on the frequency used for transmission.

Note, however, that the signal generated is not clean and generates numerous harmonics which could be harmful if amplified without filtering.

With the addition of an RTL-SDR stick for reception, it is now possible, for experimental purposes, to create a transceiver using the qtcsdr software from HA7ILM.

As with all radio transmission equipment, use is subject to compliance by the user with the laws in force in the country of use.
