PT-GP1 7 to 54 MHz 20W portable HF antenna

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

HamGeek GP1 7MHz-54MHz Shortwave Antenna HF Antenna for ICOM YAESU XIEGU Q900 HF Transceiver

Description :

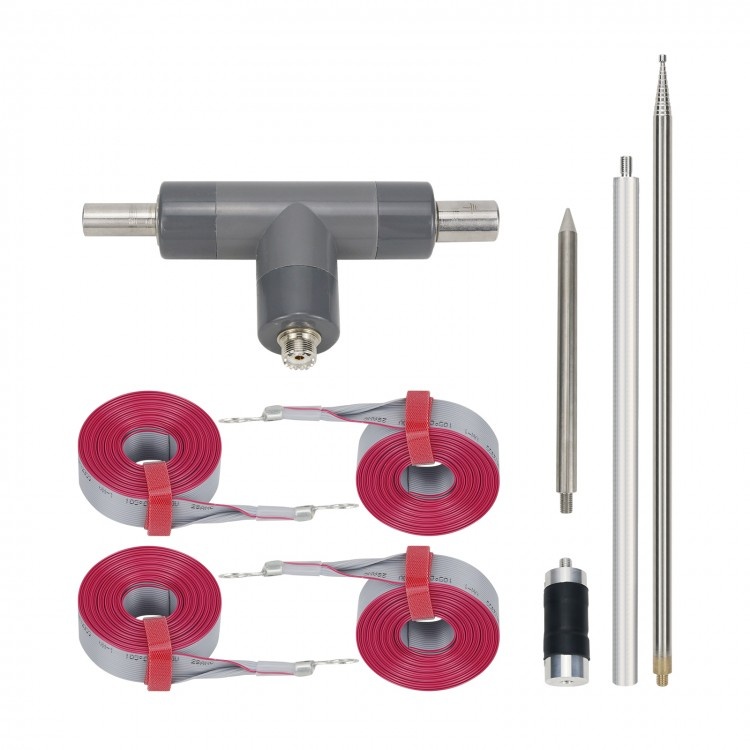

GP1 portable shortwave antenna can work in the frequency range of 7MHz-54MHz. It is a telescopic antenna and you can adjust its length. It weighs only 1.8kg/4lb and its folded length is only 52cm/20.5". allowing easy transportation.

The unique sampling design ensures that the standing wave is less than 1.5 and the radiation efficiency and reception gain are higher in the frequency range used. It is a better choice among broadband portable antennas.

Technical parameters:
- Frequency range: 7MHz-54MHz
- VSWR: ≤1.5
- Folded length: 52cm/20.5"
- Maximum size: 6m/19.7ft
- Net weight: 1.8KG/4LB
- Gain: 3db (horizontal)

90,30 € tax excl.

129,00 €

In stock

   2 Items

Warning: Last items in stock!
