DIAMOND WD-330 T2FD wire antenna View larger
Diamond Antenna

DIAMOND-WD330J-1126

New product

Japan

T2FD wideband HF antenna 2-30 Mhz DIAMOND WD-330J

rating No review at the moment

T2FD design antenna, very wide band from 2 to 30MHz for universal use (transmission / reception): amateur radio, headphones (SWL) and commercial services.

Can be installed in a horizontal position, the WD-330J antenna is then directional like a dipole, or installed in an inverted V and the antenna becomes almost omnidirectional.

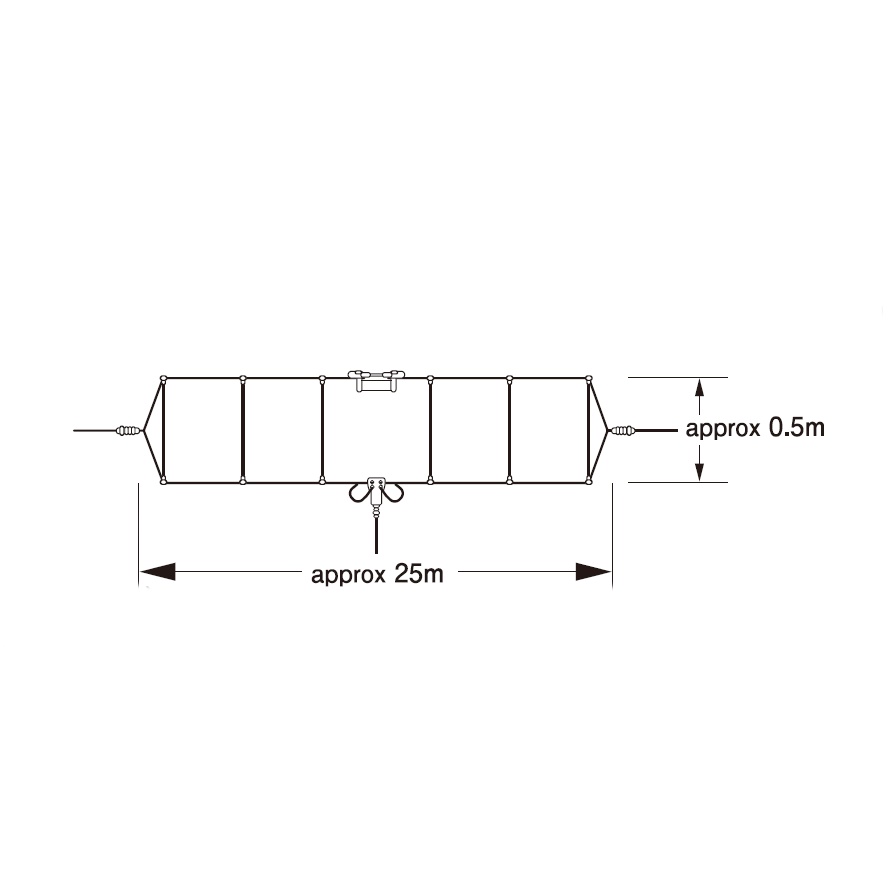

25m long, with a max. of 150W PEP.

The 2-18 MHz SWR is less than 2: 1 and 18-30 MHz is less than 3: 1.

Supplied with: 1 Diamond WD-330 (J), including a 50 Ω balun and isolators, supplied without coaxial cable (optional).

More details

195,00 € tax incl.

162,50 €

tax excl.

In stock

   6 Items

Order it before 10:00 of aujourd'hui and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Data sheet

Antenna type: T2FD dipole
Connector: SO-239 (UHF Female)
Max power: 150 W
Length: 25 m
Supported bands: 10m, 12m, 15m, 17m, 20m, 30m, 40m and 80m
2-18 MHz SWR: Less than 2: 1
18-30 MHz SWR: Less than 3: 1
Weight: 3.10 kg
