OSJ vertical antenna for 156-162MHz marine VHF robust and groundless

rating No review at the moment

The OSJ (Open Stub J-pole) antennas from Arrow Antenna are designed to operate without a ground plane and to be very robust.

This model is intended for use in transmitting and receiving for the VHF marine bands 156 MHz and 162 MHz.

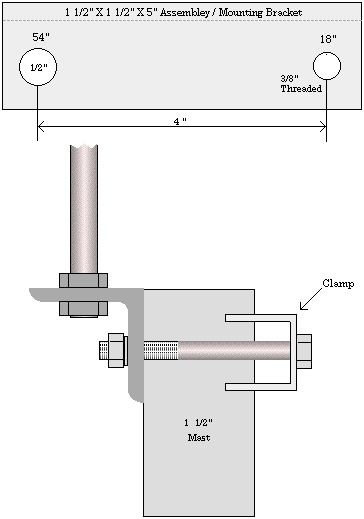

Installation on any type of support. With SO-239 connector (UHF female). Does not require adjustments.

More details

88,00 € tax excl.

In stock

   1 Item

Download

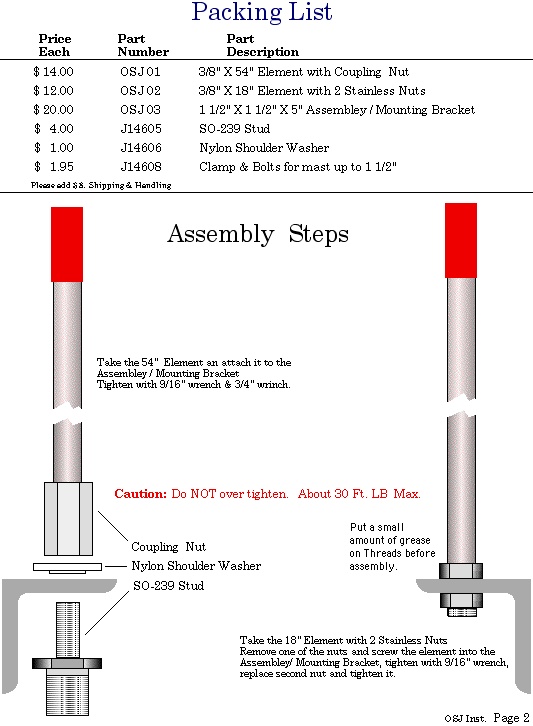

Manual OSJ VHF marine ARROW (EN)

171.12k

Manual OSJ VHF marine ARROW (EN)

In french. 228.82k

Data sheet

Antenna: Omnidirectional
Polarization: Vertical
Receiving frequency : 130-170 MHz
Transmit frequency : 150-162 MHz
Connector : UHF female (SO-239)

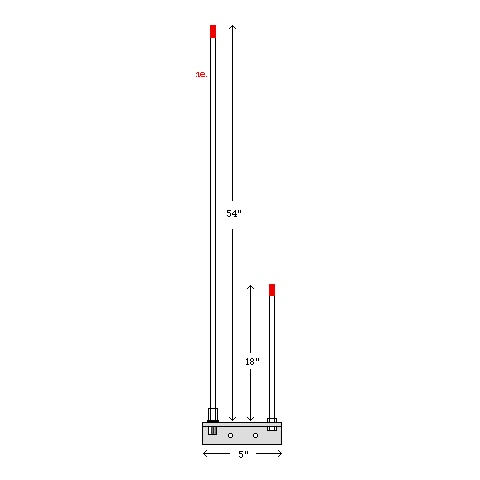

Size of the biggest element: 137cm
Smallest element size: 45cm
Width of the support: 12,7cm
SWR : Less than 2:1
Impedance: 50 Ohms
