RP-SMA Male to N Female Pigtail Cable, 30cm, RG316, LoRa Wi-Fi Meshcore Pigtail View larger
RP-SMA Male to N Female Pigtail Cable, 30cm, RG316, LoRa Wi-Fi Meshcore Pigtail
Previous
  • RP-SMA Male to N Female Pigtail Cable, 30cm, RG316, LoRa Wi-Fi Meshcore Pigtail
  • RP-SMA Male to N Female Pigtail Cable, 30cm, RG316, LoRa Wi-Fi Meshcore Pigtail
  • RP-SMA Male to N Female Pigtail Cable, 30cm, RG316, LoRa Wi-Fi Meshcore Pigtail
  • RP-SMA Male to N Female Pigtail Cable, 30cm, RG316, LoRa Wi-Fi Meshcore Pigtail
Next

Seeed Studio

SEEED-RP-SMAM-N-F-3204

New product

China

Safety Information +

RP-SMA Male to N Female Pigtail Cable, 30cm, RG316, LoRa Wi-Fi Meshcore Pigtail

rating No review at the moment

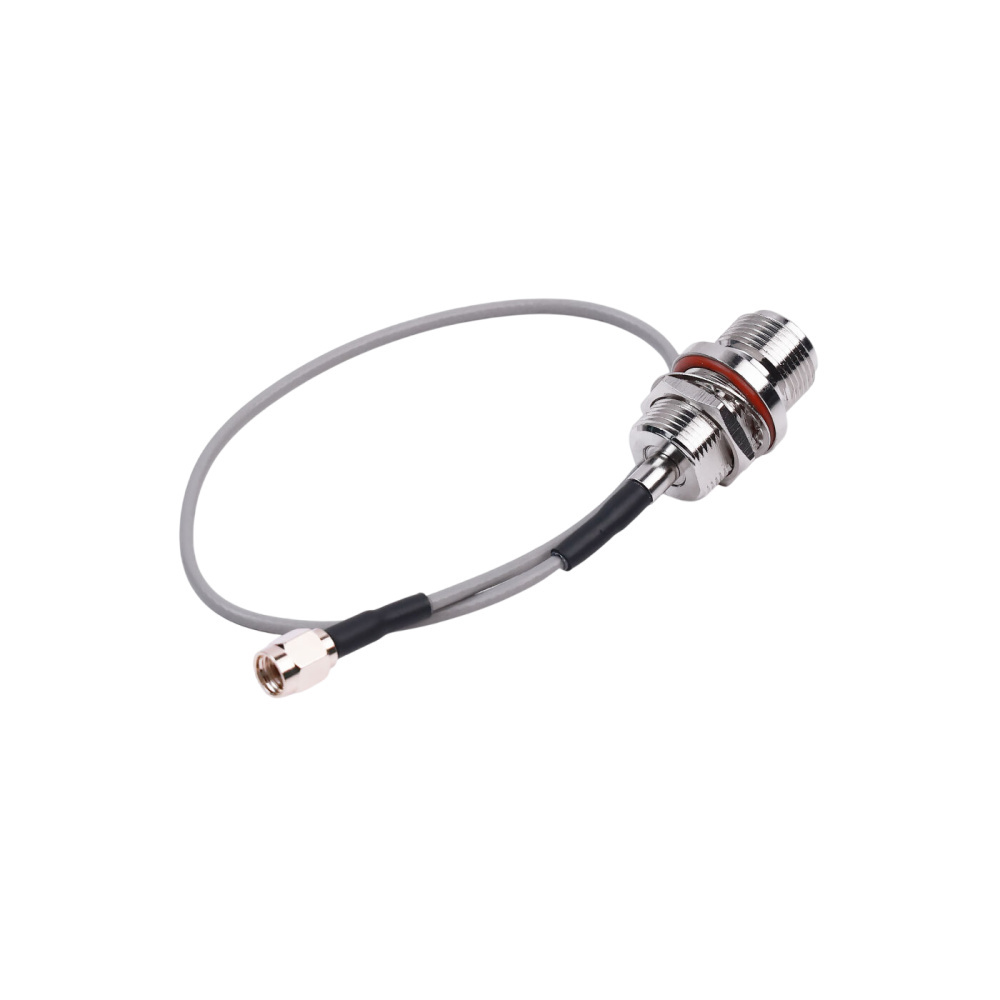

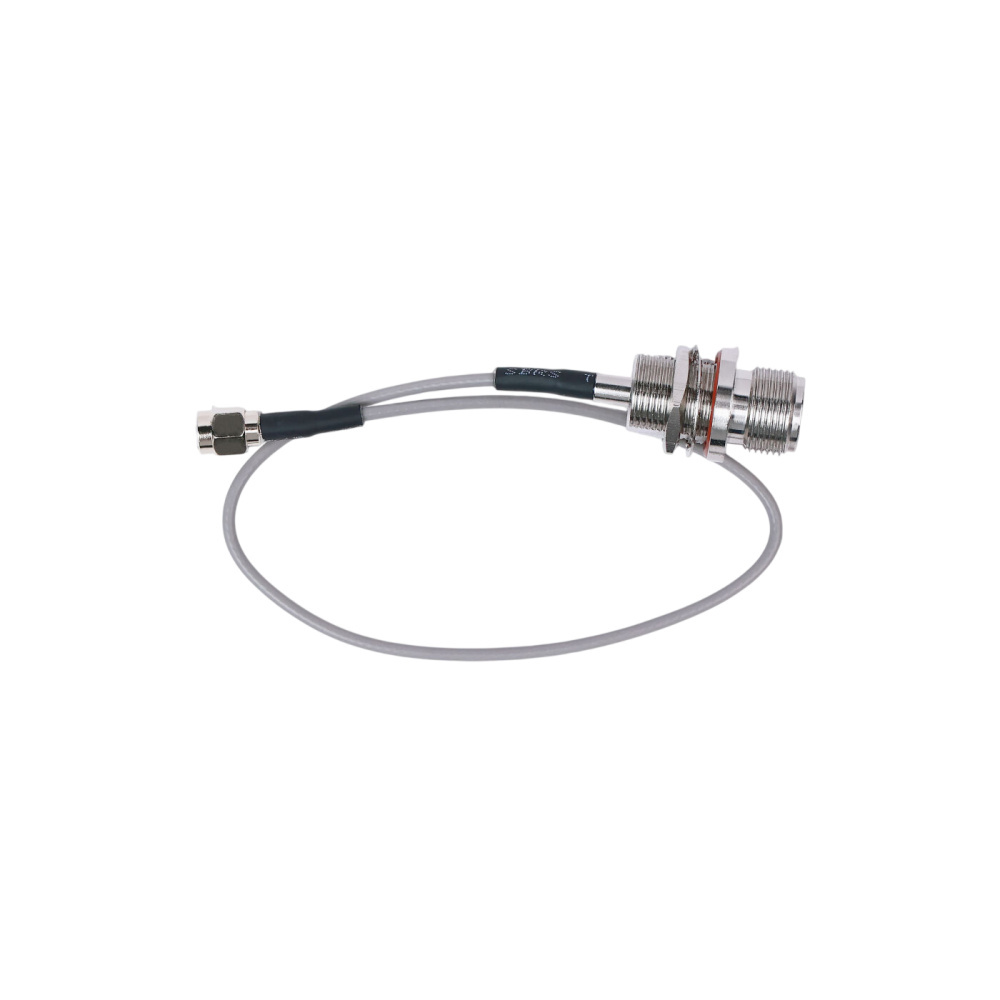

The 30 cm RG316 coaxial RF pigtail cable from Seeed Studio allows you to easily adapt a male RP-SMA connector to a female N-type bulkhead connector. It is designed to connect your radio equipment, LoRaWAN IoT gateways, Meshcore, Meshtastic or Wi-Fi access points to high-performance external antennas.

  • Flexible, low-loss RG316 coaxial cable
  • High-durability FEP jacket for indoor and outdoor use
  • RP-SMA male connector (reverse polarity)
  • Nut-fixed (bulkhead) N-type female connector with seal
  • Standard 50-ohm impedance for RF applications
  • Ideal length of 30 cm (300 mm) for integration into an enclosure

Supplied with: 1x Seeed Studio 30 cm RG316 RP-SMA male to N-type female adapter cable with nut and fixing washer.

More details

6,98 € tax excl.

Out of stock, available in 1 month’s time

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Universal RP-SMA to N adapter: Ideal for connecting electronic boards, SenseCAP gateways or Wi-Fi routers to a professional Type N outdoor antenna.
  • High-quality RG316 coaxial cable: Offers an excellent balance between mechanical flexibility, compact size and controlled RF attenuation.
  • Durable FEP sheath: Withstands a wide range of temperatures and is UV-resistant and weatherproof for outdoor use.
  • Panel mounting (Bulkhead): The female N connector features an integrated threaded connection with a nut and washer for a neat and secure feed-through of a waterproof enclosure or box.
  • Gold-plated contacts: Ensure optimal conductivity and enhanced durability against oxidation.

Technical specifications

  • Manufacturer: Seeed Studio
  • Manufacturer’s part number (SKU): 100007236
  • Cable type: RG316 coaxial
  • Sheath material: Durable FEP (fluoroethylene propylene)

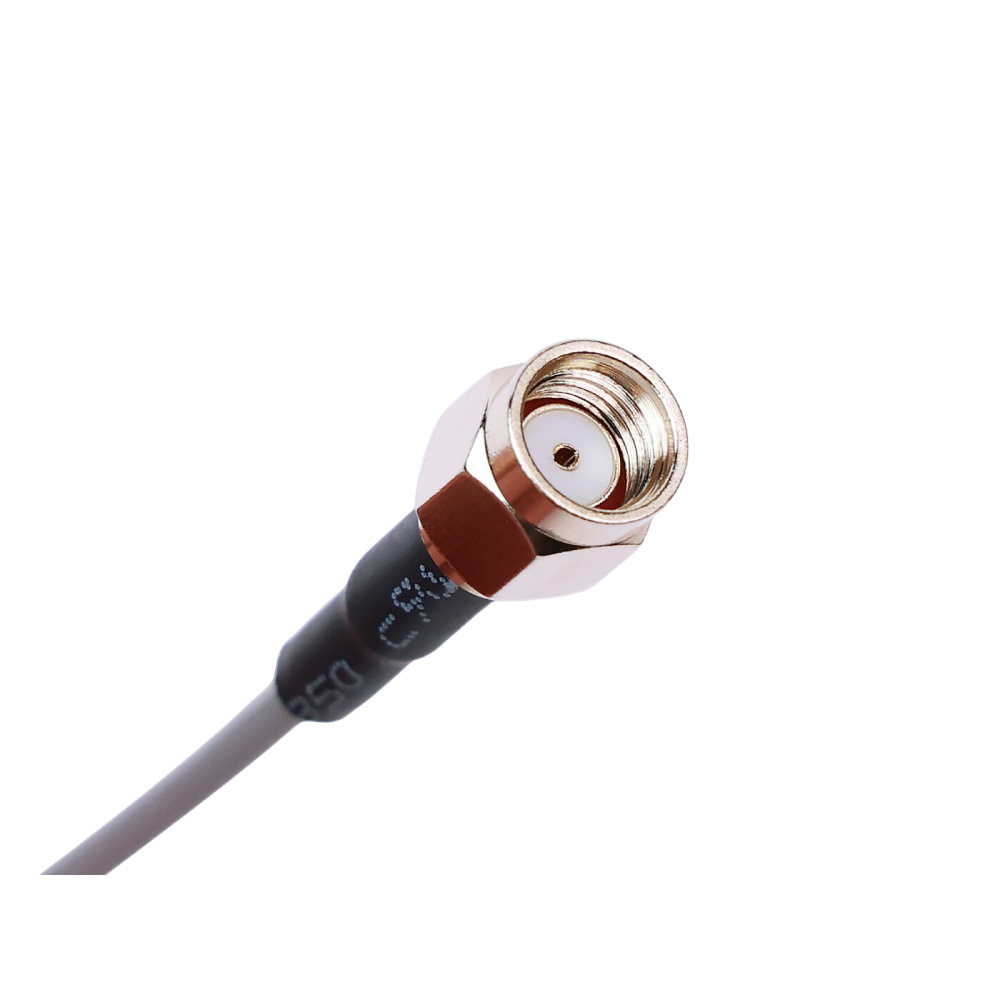

  • Connector A: RP-SMA male (Reverse Polarity SMA male – internal thread, female contact/hole)

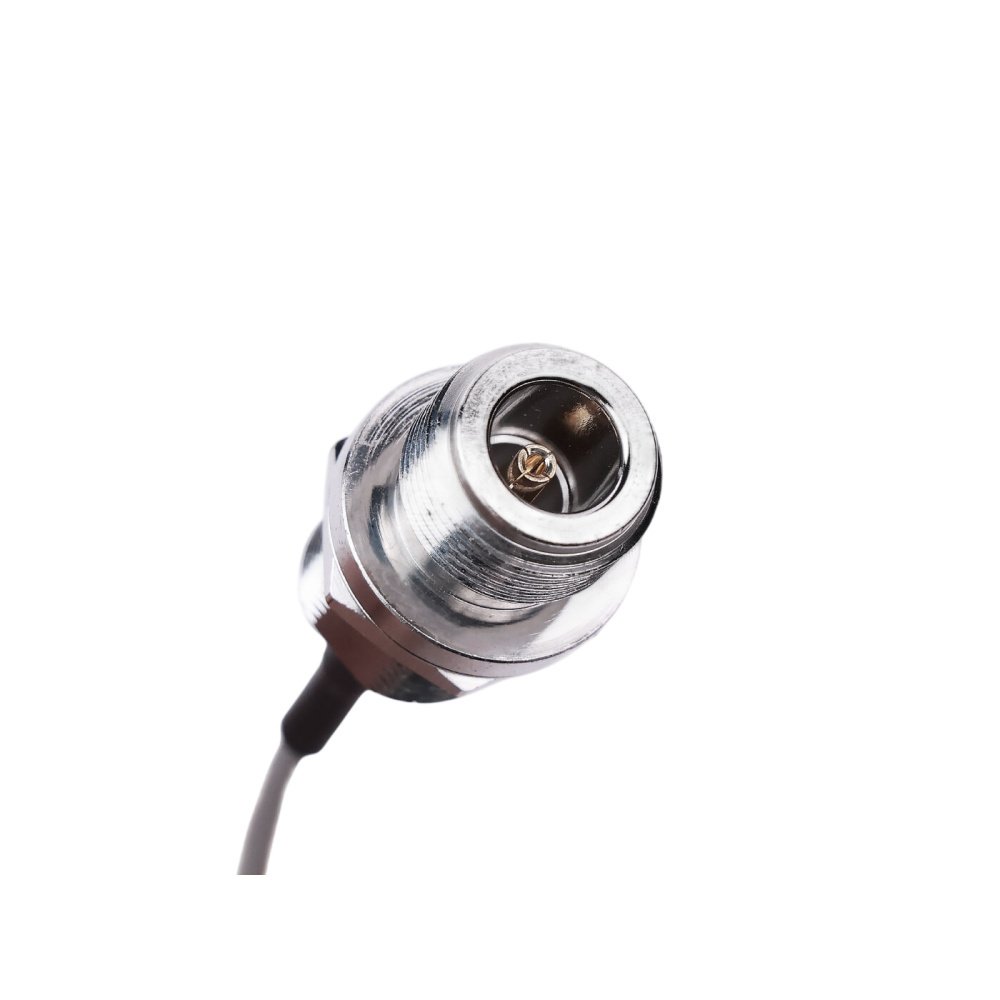

  • Connector B: Type N Female (Bulkhead with nut and clamping washer)
  • Characteristic impedance: 50 ohms
  • Cable length: 300 mm (30 cm / ~11.8 inches)
  • Use: Indoor and outdoor
  • Applications: LoRa, LoRaWAN (Helium, The Things Network), Wi-Fi 2.4 GHz / 5 GHz, SDR, 50Ω RF systems

Compatibility

  • LoRaWAN Meshcore and Meshtastic gateways and equipment fitted with RP-SMA connectors.
  • Wi-Fi & Networking equipment: Routers, access points and Wi-Fi cards fitted with female RP-SMA sockets.
  • Antennas & RF systems: Outdoor omnidirectional or directional antennas fitted with a male N connector or via an N-type feed-through cable.
  • Enclosures & Cases: Ideal for IP67-rated waterproof enclosures with a cut-out for an N-type bulkhead connector.

FAQ

What is the difference between SMA and RP-SMA?

The RP-SMA (Reverse Polarity) connector reverses the centre contact compared to the standard SMA. The RP-SMA male connector has an internal thread with a central receptacle (hole/female contact), commonly used on Wi-Fi equipment and certain IoT gateways.

Is this cable suitable for outdoor installation?

Yes, the RG316 cable features an FEP sheath that is resistant to UV light and temperature fluctuations. To ensure a perfect seal at the enclosure feed-through, make sure the seal on the female N-type connector is correctly positioned.

Does the female N connector allow for a chassis feed-through?

Yes, it is a ‘bulkhead’ type N connector, supplied with a nut and washer to securely fix the connector through the wall of an enclosure or outdoor cabinet.

What is the impedance of this pigtail cable?

The RG316 cable and its connectors have a standardised impedance of 50 ohms, ensuring perfect compatibility with radio and antenna equipment without any harmful impedance mismatch.

Can it be used for 2.4 GHz and 5 GHz Wi-Fi?

The RG316 cable and RP-SMA/N connectors are perfectly suited to the ISM frequencies 868 MHz (LoRa), 2.4 GHz and 5 GHz (Wi-Fi).
