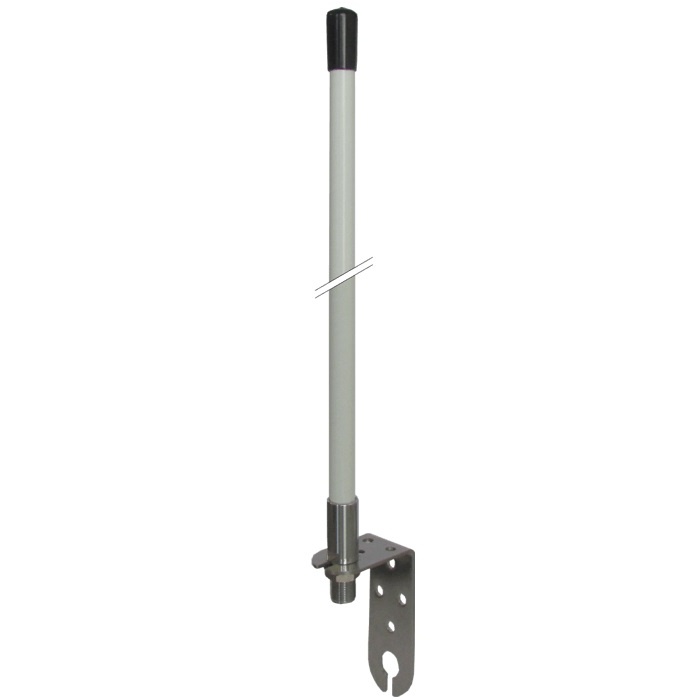

Base Antenna 430-450 MHz 2dBi PMR 446 LoRa 433 MHz Sirio SO 437 N

Sirio SO 437 N antenna for fixed base station for the UHF band 430-450 MHz, omnidirectional antenna with a gain of 2.15 dBi and a maximum power of 20 Watts, with N-Female connector.

For use on the 70cm amateur radio band, the PMR 446 Mhz band, the ISM band, Sigfox and LoRa in 433 Mhz.

Supplied with: Sirio SO 437 N, without coaxial cable, with wall mounting included.

More details

Download

Manuel Sirio SO437N (EN)

1.77M

Data sheet

Antenna type: 1/2 λ wave
Type of radiation: omnidirectional
Polarization: vertical linear
Frequency range: 430 to 450 MHz
Compatible frequency band: amateur radio 70 cm, PMR 446, ISM / SIGFOX / LoRa 433 MHz
Gain: 2.15 dBi (0 dBd)
Maximum power: 20 W
Antenna to ground
Antenna connector: N-Female
Materials: copper, chromed brass, fiberglass
Height: 53cm
Weight: 150 grams
Mounting: through holes, on the wall
Wind resistance: 200 km/h max.
