Receiving antenna 25-2000 Mhz mobile magnetic SCAN STICK 2000 MAG

Read the 2 reviews

Average rating: 5/5 Number of reviews: 2

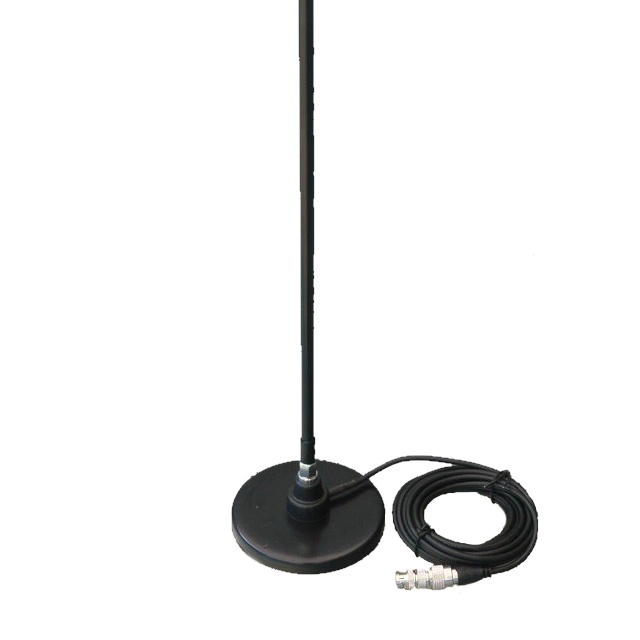

The SCANSTICK 2000 MAG is a magnetic antenna specially designed for reception of frequencies from 25 to 2000 Mhz and for outdoor use with its fiberglass strand coated with aluminum and protected in black PVC resistant to UV.

The antenna measures 71.5cm, the length of the coaxial cable is 4m and the diameter of the magnetic base is 160mm.

This broadband antenna is particularly developed to improve the reception performance of a scanner compared to the original coil antenna, or for reception in SDR and the following frequencies:

26 to 28 MHz
31 to 32 MHz
75 to 108 MHz
108 to 140 MHz
140 to 150 MHz
150 to 180 MHz
400 to 500 MHz
860 to 870 MHz
890 to 910 MHz
930 to 970 MHz

With UHF-Male connector (PL-259) on the coaxial cable, a BNC Male adapter connector is included to connect the coaxial cable of the magnetic base directly to the connector of the receiver in BNC female.

Supplied with: SCAN STICK 2000 MAG antenna, with magnetic base and 4m coaxial cable.

More details

Data sheet

Receiving frequency: 25-2000 MHz (typical 25 to 1000Mhz)
Magnetic base mounting
Diameter of the magnetic base 160 mm
Coaxial cable length: 4m
Coaxial cable connector: UHF-Male (PL-259)
Antenna adapter: BNC Male included
Impedance: 50 ohms

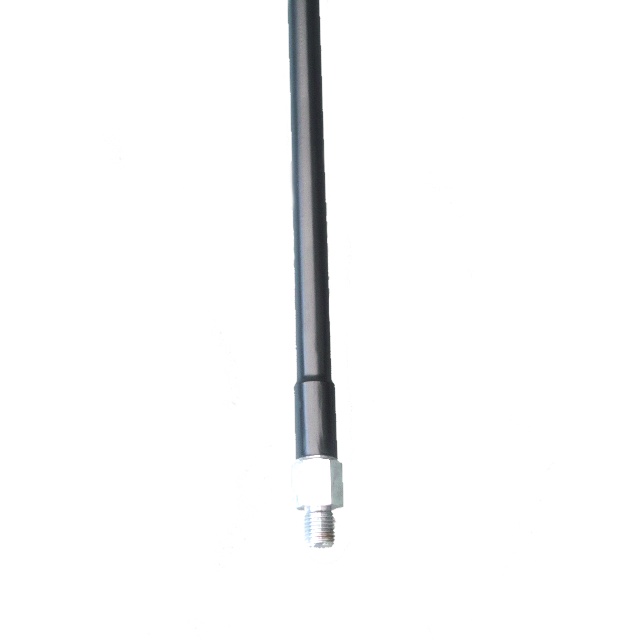

Antenna whip:
- Length 71.5 cm
- 3/8 x 24 thread
- Diameter 9 mm, fiberglass coated with aluminum
- UV resistant black PVC coating
