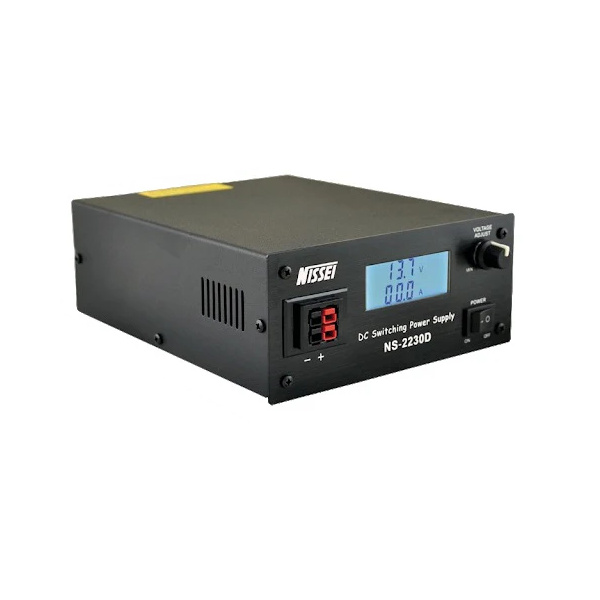

Nissei NS-2230D 30A 9-15V switching power supply with LCD display and Anderson sockets

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

The Nissei NS-2230D is a compact, high-performance switch-mode power supply designed specifically for powering amateur radio and communications equipment. It offers a stable 13.8V or adjustable voltage, while guaranteeing a minimal footprint on your desk.

  • High output power up to 30A peak.
  • Dual LCD digital displays for voltage and current.
  • Voltage adjustable from 9V to 15V or fixed at 13.8V.
  • Dual connectors: high-power rear terminals and Anderson sockets on front panel.
  • 110V/220V input voltage selector for versatile use.
  • Short-circuit and overload protection.

Supplied with: EU/Schuko power cord, user manual.

More details

122,62 € tax excl.

In stock

   2 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

The Nissei NS-2230D power supply is the ideal solution for modern radio stations requiring clean, stable power in a compact format. It's aimed at radio amateurs and CB users looking for the reliability of a recognized brand with practical features like Anderson connectors on the front panel.

Highlights

  • Compact, lightweight format for easy integration into a radio station or transport.
  • Backlit LCD digital display for precise, immediate parameter readout.
  • Unique connection flexibility with front-panel Anderson Powerpole ports for quick connection.
  • Optimized thermal stability thanks to a silent, temperature-controlled fan.
  • High-performance filtering to reduce radio frequency interference (RFI) common to switch-mode power supplies.

Technical specifications

  • Type : Switch mode power supply.
  • Input voltage: 110V or 220V AC (switch selectable).
  • Output voltage: Adjustable from 9 to 15 VDC or fixed at 13.8 VDC.
  • Output current: 28 Amperes continuous, 30 Amperes peak.
  • Ripple and noise : Less than 100mV peak-to-peak.
  • Display: Digital Volt/Ampere LCD.
  • Front connectors: Anderson-type terminals.
  • Rear connection: Screw terminals (Binding Post).
  • Dimensions: 155 x 70 x 205 mm.
  • Weight: Approx. 1.5 kg.

Compatibility

  • HF transceivers (ICOM, YAESU, KENWOOD) requiring 13.8V.
  • High-power VHF/UHF CB and mobile sets.
  • Laboratory equipment and radio accessories operating at 12-13.8V.
  • Accessories using Anderson Powerpole standard.

FAQ

Is it possible to lock the voltage at 13.8V?

Yes, a dedicated switch allows you to toggle between the adjustable mode (9-15V) and the fixed mode locked at 13.8V to avoid any false manipulation.

Does the fan run continuously?

No, the fan is thermoregulated, it only comes on when the load or internal temperature requires it, guaranteeing silent operation at rest.

Do the front-panel sockets support 30A?

Anderson-type connectors on the front panel are designed to withstand high currents, but for prolonged use at 28A/30A, we recommend using the screw terminal blocks on the rear.

Is the power supply protected against reverse polarity?

It incorporates short-circuit, overload and overvoltage protection to protect your radio equipment.

Can it be used in the USA or Japan?

Yes, thanks to its input voltage selector located inside or at the rear, it can operate on 110V AC.

Why choose the Nissei NS-2230D?

  • Proven reliability from one of the world leaders in radio power supplies.
  • Best-in-class compactness/power ratio for a clean station.
  • Native integration of Anderson sockets, now a standard among radio amateurs.
  • A clear digital display that replaces older, less accurate needle galvanometers.
