> RF Measuring Instruments>RF tools>PCB RF attenuator from -10dB to -30dB max. power 200mW (23dBm)
Reduced price!

-30%

PCB RF attenuator from -10dB to -30dB max. power 200mW (23dBm) SDR accessories XLA-PCB-ATTENUATOR-1011 View larger
Previous Next

RF KONNECT

RFKONNECT-PCB-ATTENUATEUR-1011

New product

China

PCB RF attenuator from -10dB to -30dB max. power 200mW (23dBm)

rating No review at the moment

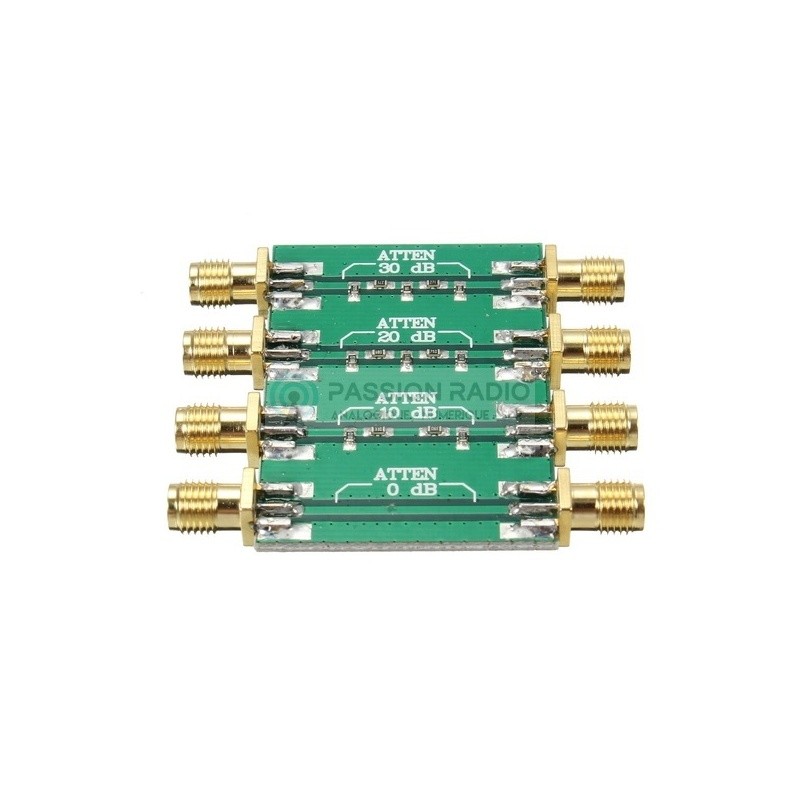

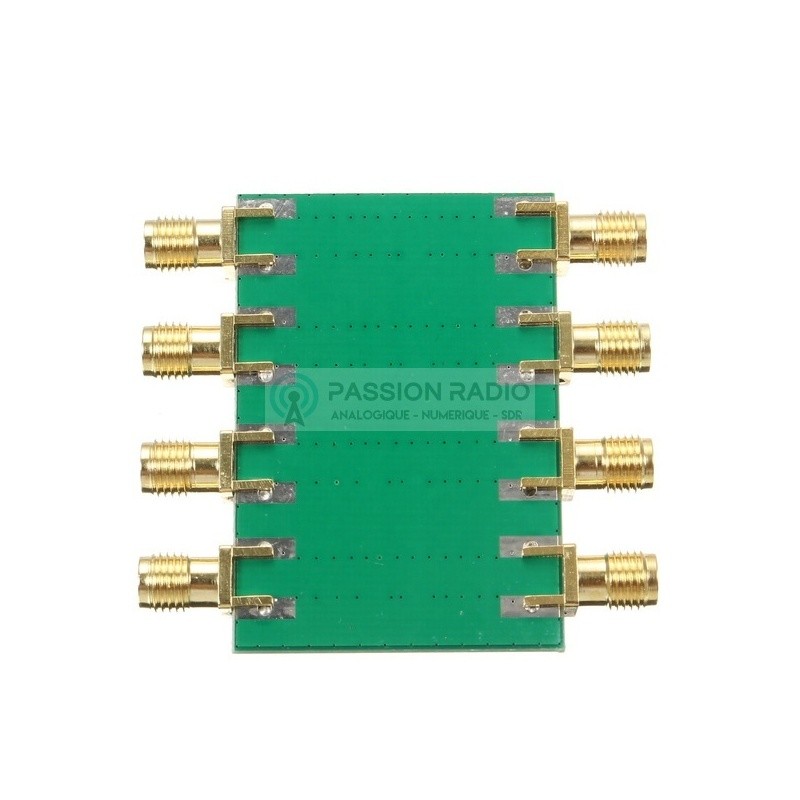

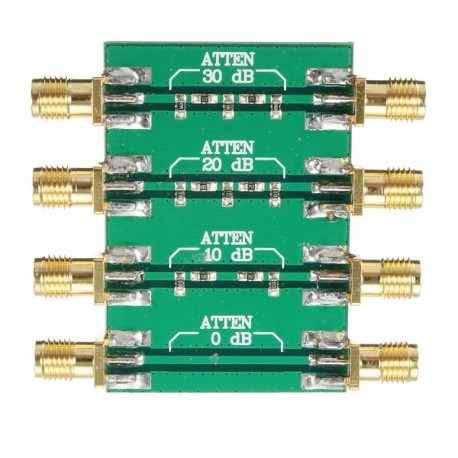

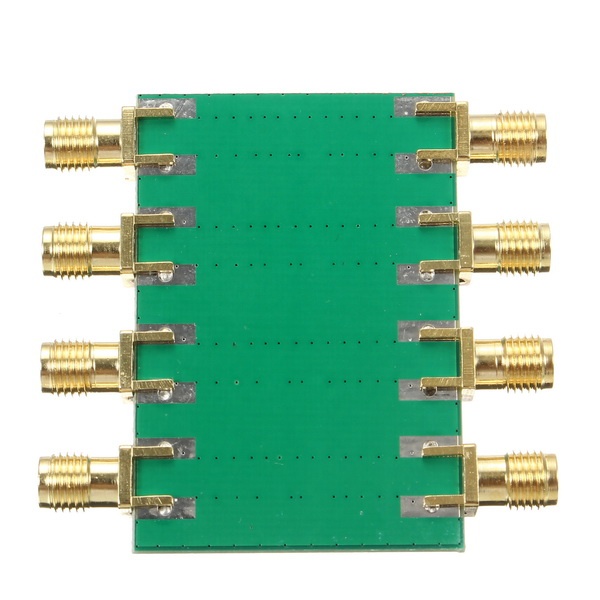

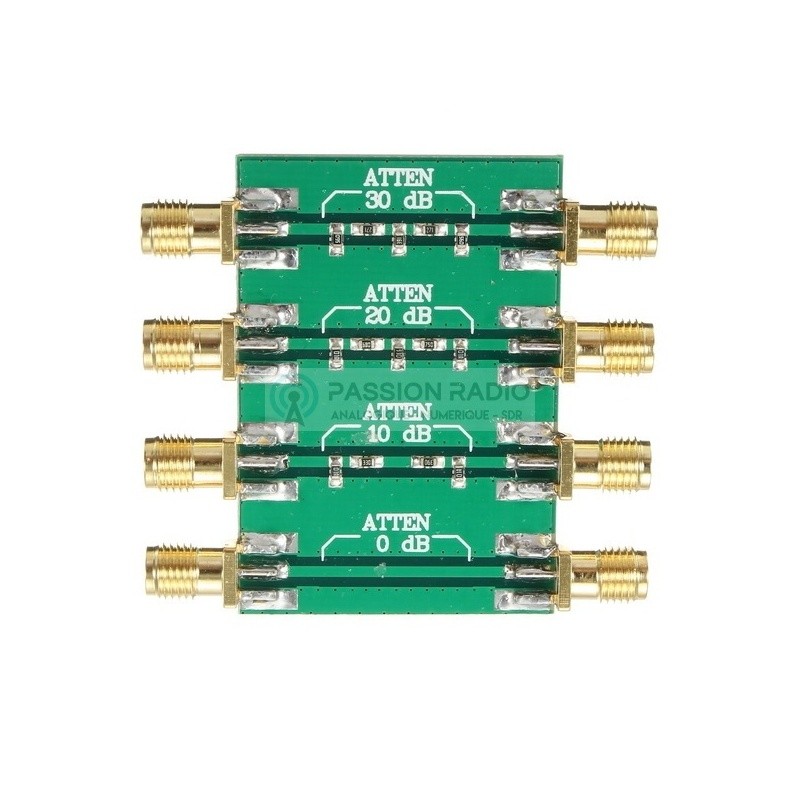

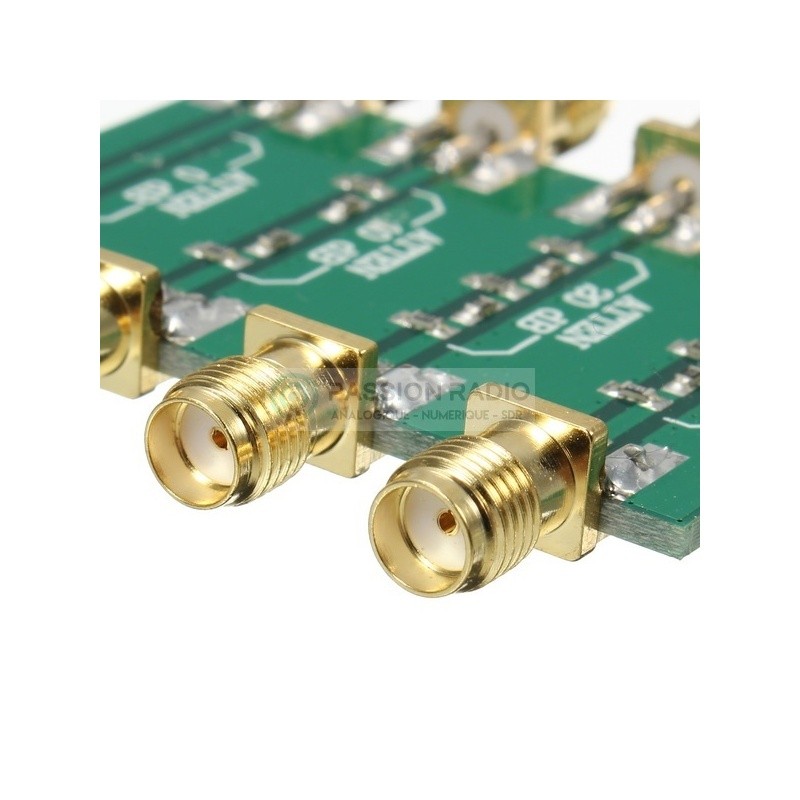

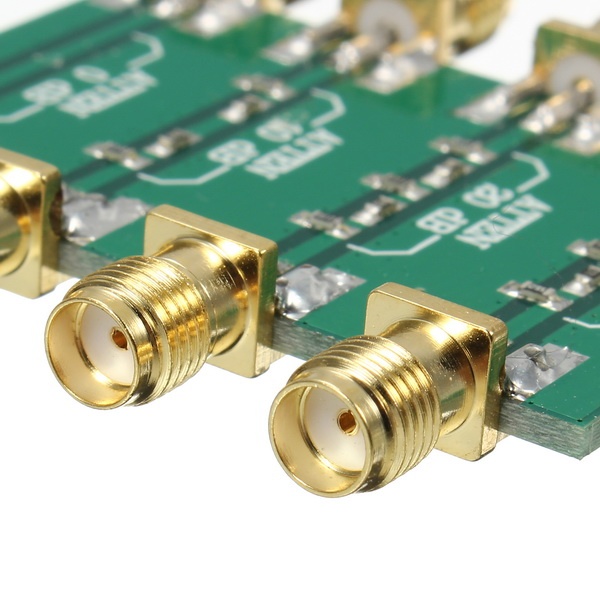

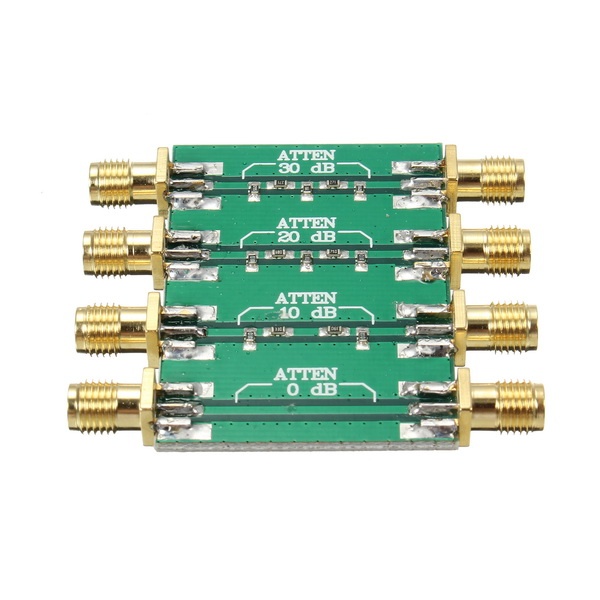

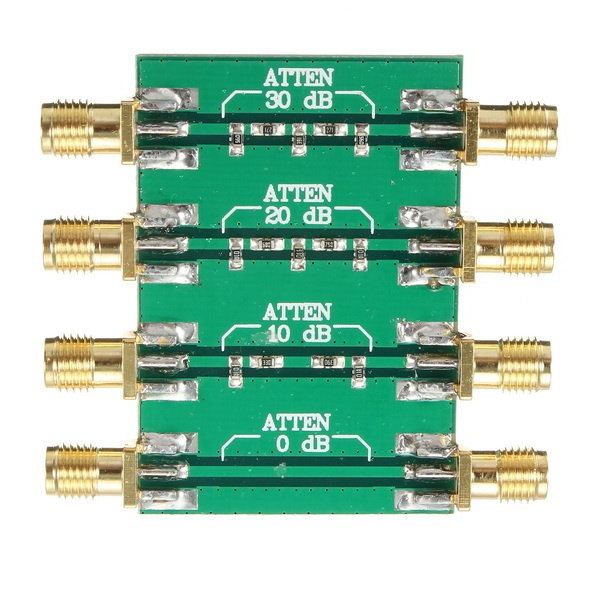

This PCB-based RF attenuator module reduces the power of a radio signal by -10 to -30dB, with a maximum input power of 23dBm (200Mw), with female SMA connector, for use from 0 to 4000Mhz (4Ghz).

Supplied with: 1 PCB RF Splitter 2-channel module.

More details

QuantityPriceYou Save
2 7,19 € Up to 0,45 €
5 7,05 € Up to 1,85 €
10 6,97 € Up to 4,45 €
20 6,82 € Up to 11,87 €
50 6,68 € Up to 37,08 €
100 6,30 € Up to 111,25 €

5,19 € tax excl.

7,42 €

In stock

   More than 10 Items

Data sheet

RF attenuator PCB specifications

Frequency: 0 Mhz to 4000 Mhz
Maximum input power: 23dBm (200mW)
Connector: SMA female
Attenuation: Direct: 0dB (reference)
Level 1: -10dB ± 0.8 dB
Level 2: 20dB ± 1.1 dB
Level 3: -30dB ± 1.5dB
Impedance: 50 ohms

Warranty 2 years* *.

* The warranty does not cover damage resulting from incorrect installation, incorrect antenna adjustment (VSWR), maximum input power not respected, short-circuit of the power supply or coaxial line and damage due to electrostatic discharge.
