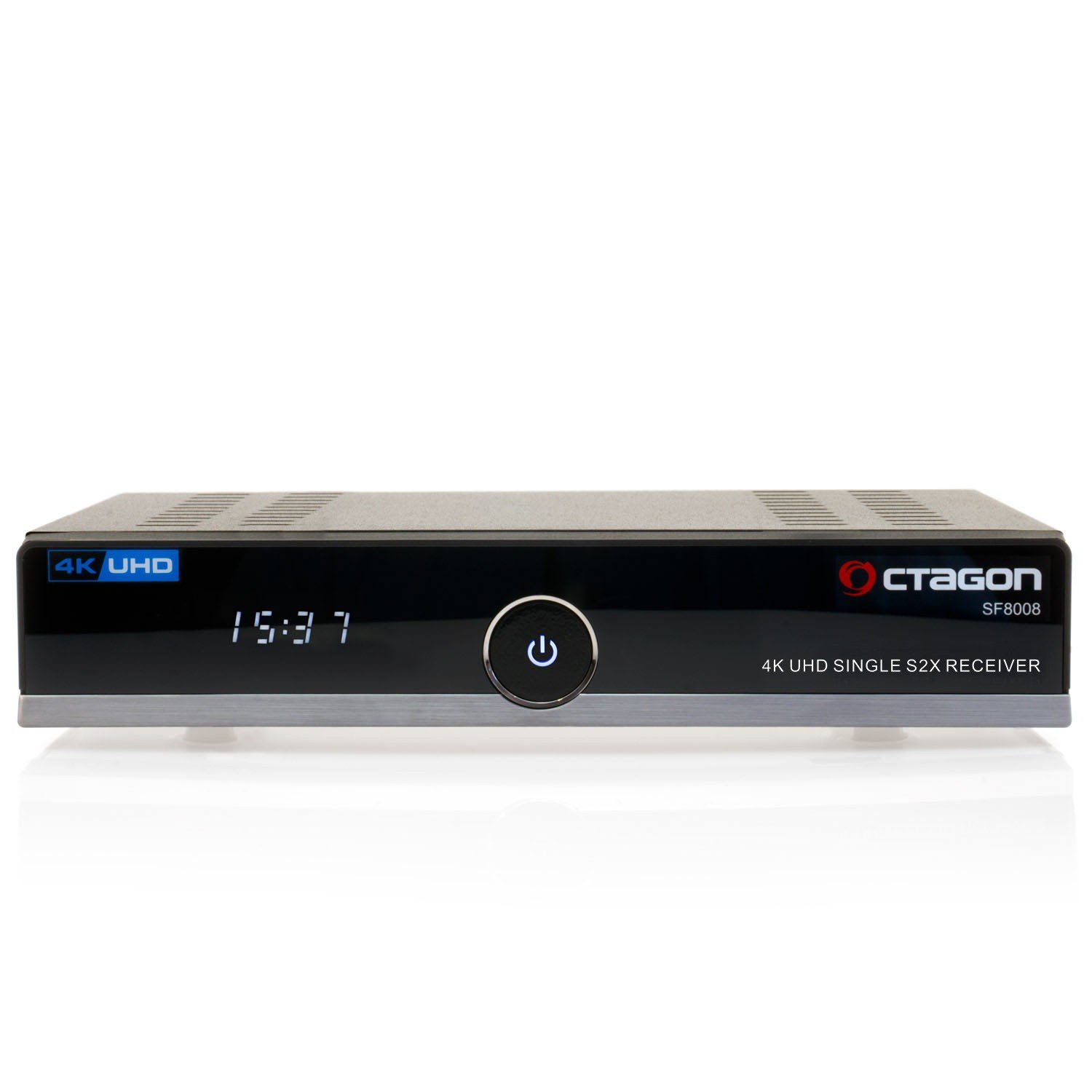

OCTAGON SF8008 DVB-S2X satellite receiver, operating with Linux, for 4K UHD E2 2160p H.265 TV reception.
The tuner is equipped with the new standard DVB-S2X, a USB 3.0 port, a LAN port and H.265, HDMI 2.0 digital audio outputs, AV (audio and video), S / PDIF and is able to read the signals with a symbol rate (SR) between 100 and 80000.
Available in 2 versions:

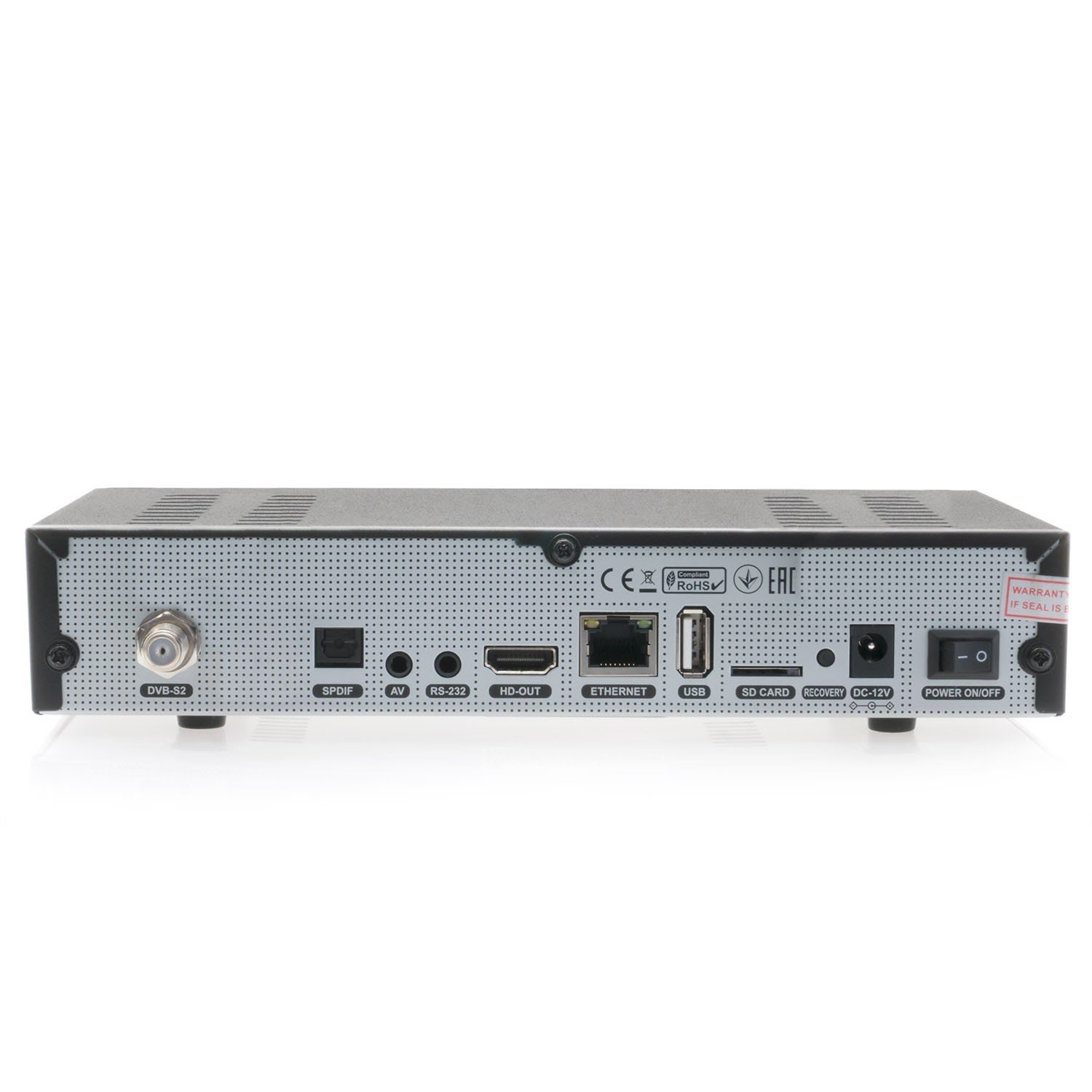

Single: With 1 LNB antenna input

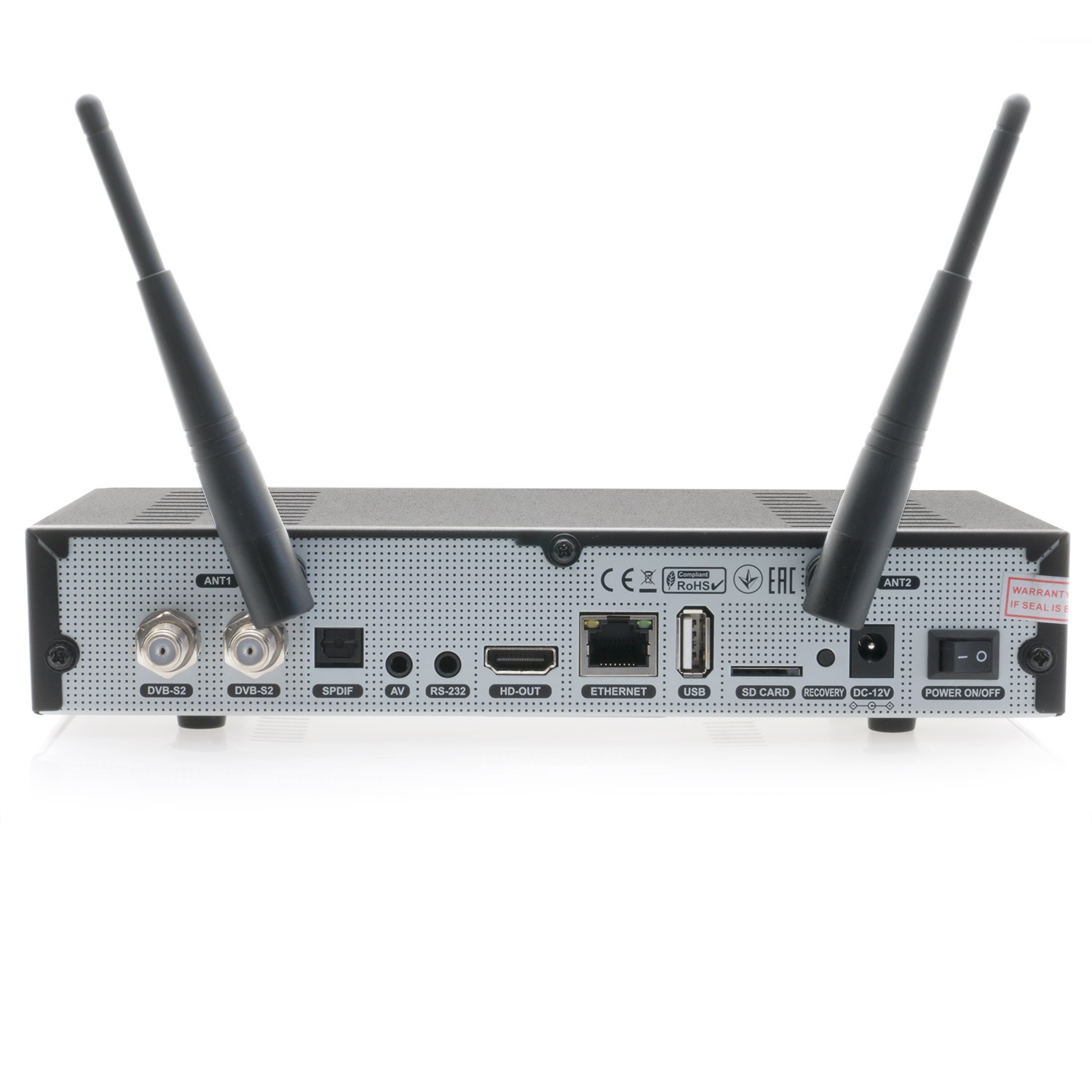

Twin: With 2 LNB and WIFI antenna inputs (double antenna)
Supplied with: 1 OCTAGON SF8008 receiver (Single 1 input or Twin 2 inputs), 1 remote control, 1 user manual (German and English), 1 HDMI cable and 1 220V / 12V power supply unit.
- Hisilicon Hi3798MV200 Huawei
- Quad Core 64 Bit (4x 1.6 GHz) 15000 DMIPS
- 8 GB eMMC Flash
- 1 GB RAM DDR4
- Gigabit Ethernet LAN (1000 Mbps)
- SD card reader
- DVB-S2X Tuner and multistream
- Symbol Rate: 100 minimum to 80000 maximum
- HDMI 2.0 and USB 3.0
- HDMI CEC support
- Dual operating system (dual OS): Enigma2 Linux OS and OCTAGON Linux OS SX
- DVB-S2X 4K UHD
- HD PIP & UHD (picture in picture)
- HDR 10bit & HLG
- Multi transcoding and multiroom
- USB stick for IP client and V-tuner
- Blindscan (blind search)
- HW multiboot
- Multimedia playback 2160P H.264 and H.265
- Updates by firmware
- 1 LNB input (single version)
- 2 LNB inputs (twin version)
- WIFI (twin version only)
- Dolby S-PDIF
- AV - Audio Video Jack - Jack to RCA
- RS-232 socket
- HDMI 2.0a output
- USB 2.0 port
- Gigabit LAN network (1000 Mbps)
- MicroSD Slot
- DC-12V power supply
- Dimensions (WxDxH) 220mm x 125mm x 40mm
- DC power supply: 12V-2A
- CE standard and 2 years warranty
