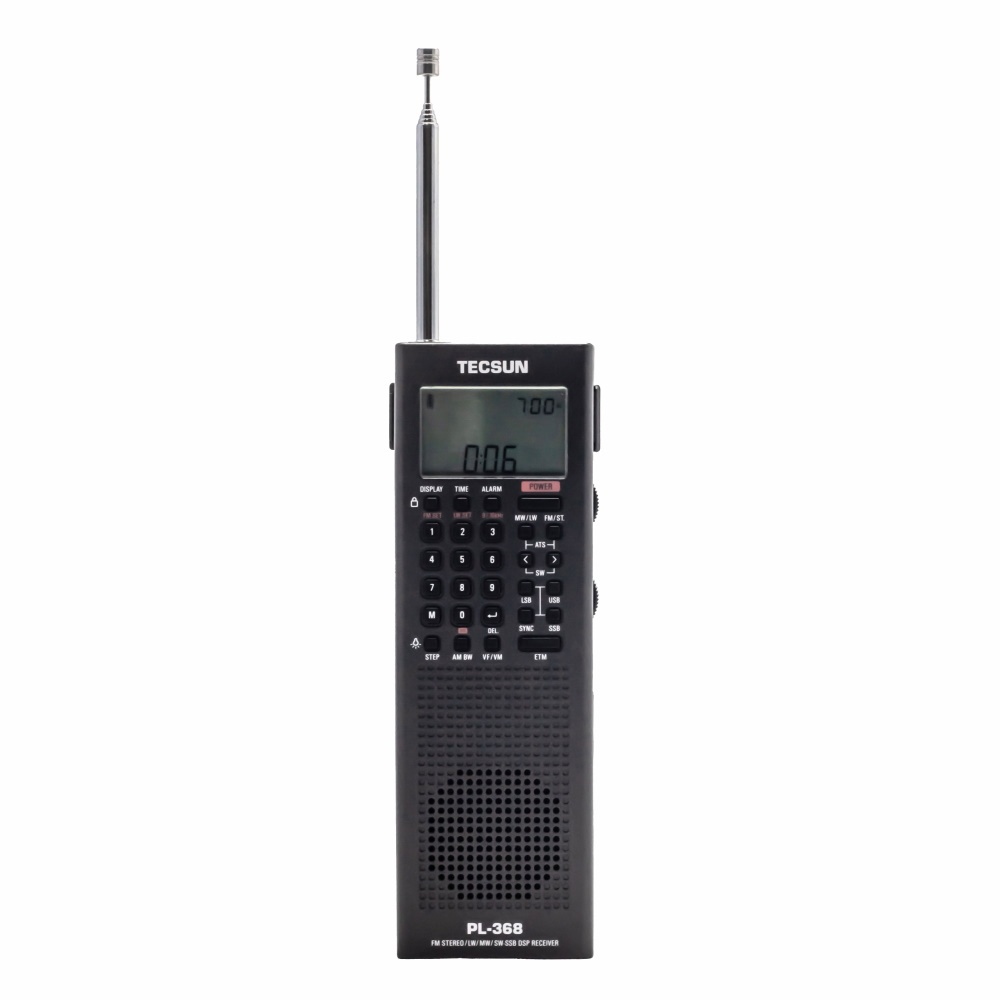

Tecsun PL-368 Portable HF AM FM SSB Radio Receiver 0-30MHz & 64-108MHz

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

The Tecsun PL-368 portable HF SSB radio receiver is the latest 2021 version of the famous PL-360 and PL-365.it has analog AM, FM and SSB (SSB) modes, it has a Jack 3.5mm socket for connecting an external antenna and covers from 150KHz to 30MHz as well as the 64-108MHz wide FM band.

The main evolutions of the PL368 compared to the PL365 are :

- New keyboard with numeric keys for direct frequency entry
- Synchronous detection function (SYNC) to improve shortwave reception
- Rechargeable BL-5C Li-ion battery with USB-B type charging cable (220V <> USB 5V charger not included)

Frequency range:

- LW: 153-513 kHz (longwave)
- MW: 520-1710 kHz / 522-1620 kHz (medium wave)
- SW: 1711-29999 kHz (shortwave)
- FM: 64-108 / 76-108 / 87-108 / 88-108 MHz

Allows you to listen to AM and FM radio stations, HF amateur radio bands, aeronautical HF bands, and HF commercial activity.

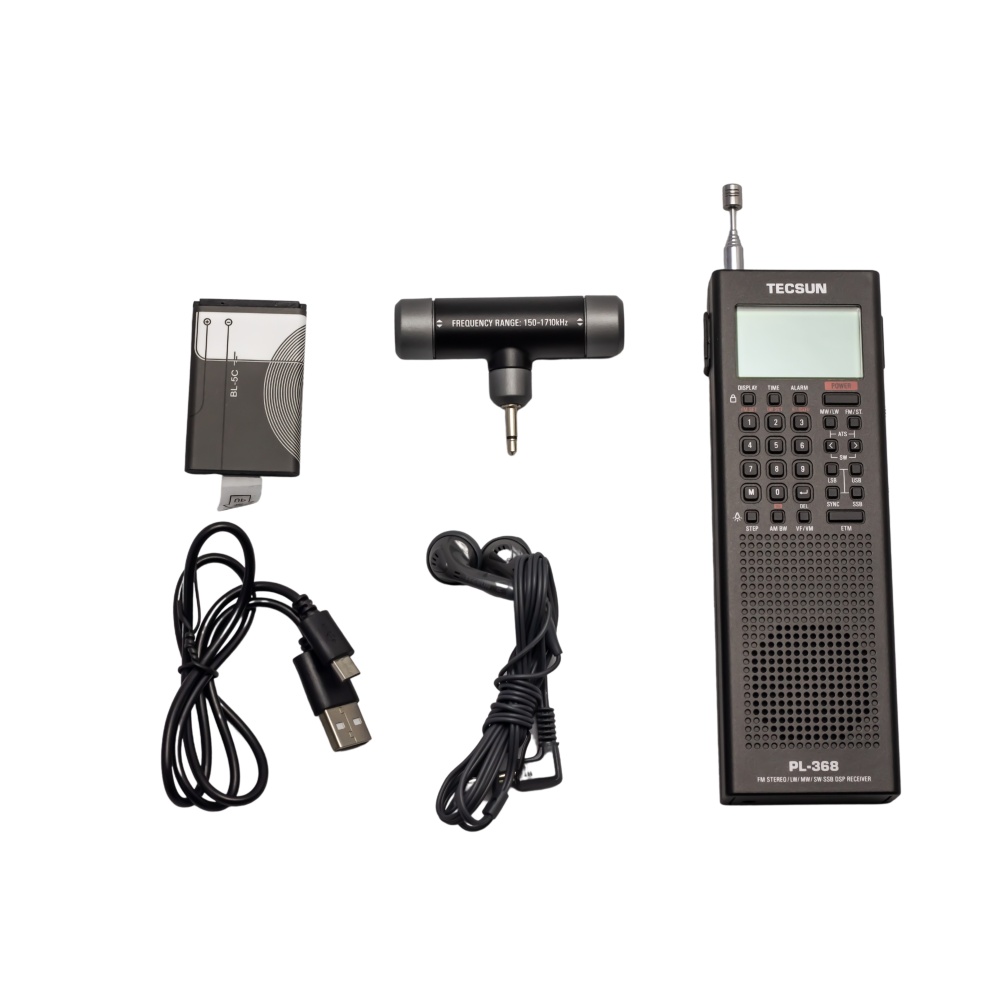

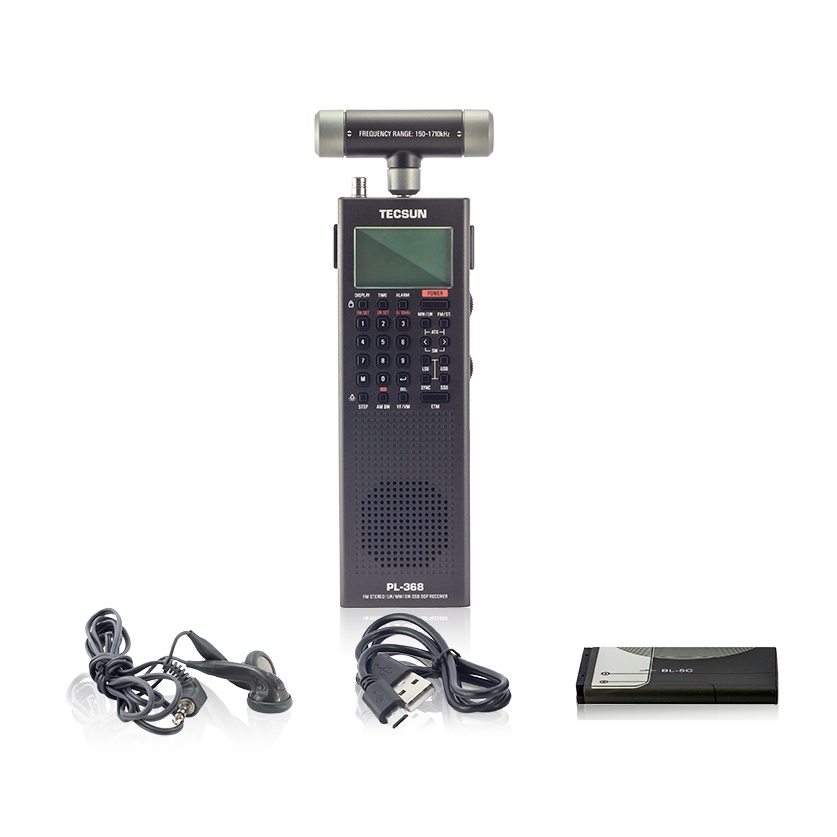

Delivered with: 1 Tecsun PL-368 radio, 1 high sensitivity AM antenna, 1 stereo headset, 1 Li-ion BL-5C battery, 1 USB-B charging cable, (220V USB 5V charger not included), 1 carrying bag and 1 English user manual.

More details

74,79 € tax excl.

77,10 €

In stock

   5 Items

Download

Manual Tecsun PL-368 (EN)

413.19k

DOC CE RED PL368

194.37k

Data sheet

Direct frequency entry from the keyboard
ETM+ search function (time-specific search)
TTY search function
SSB mode with a minimum frequency step of 10 Hz
850 memories in all modes

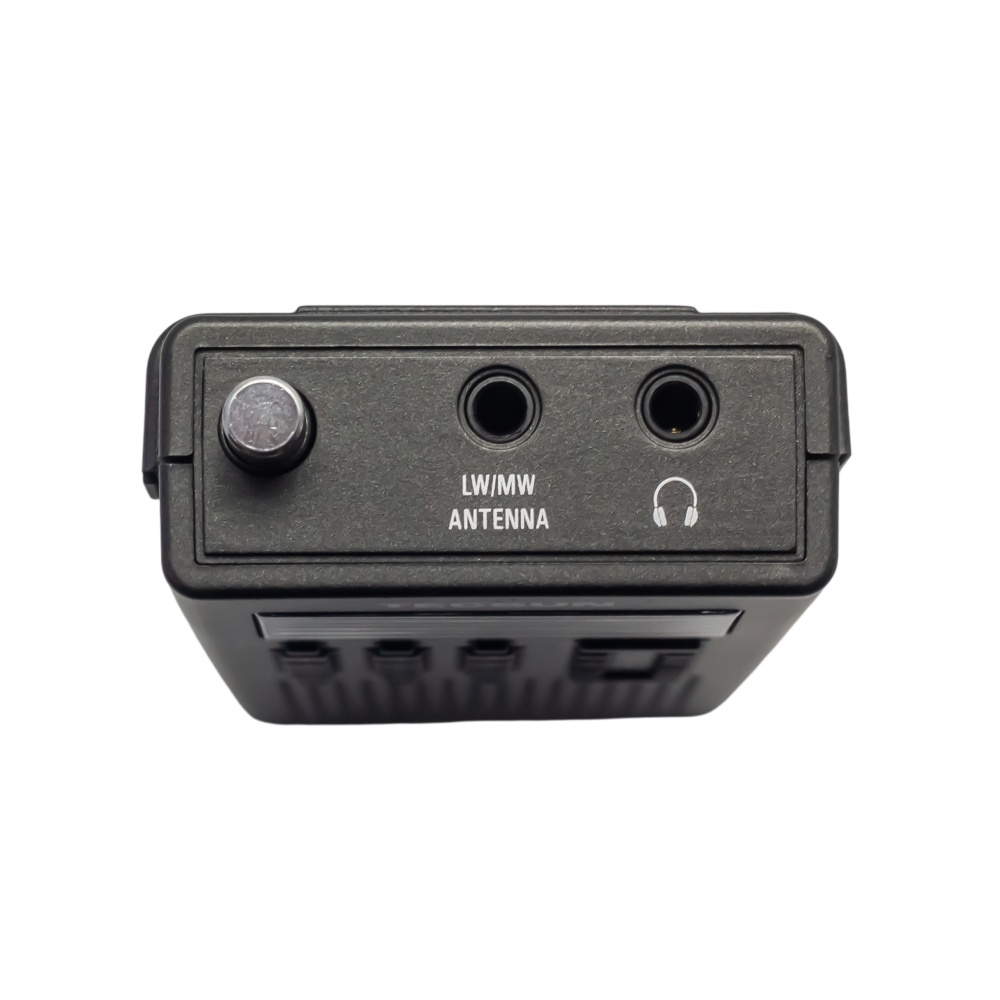

External antenna socket (Jack mono 3.5mm) for MW and SW
Multifunctional LCD display for: field strength, S/N ratio, temperature, load indicator, time
Wide band FM coverage: 64-108 mHz
DSP demodulation technology for improved sensitivity, selectivity and S/N
Lithium battery powered (BL-5C battery)
Smart display backlighting.
Memory Auto: Sort frequencies in duplicate and organize memories in order from low to high frequencies.

Specifications of the Tecsun PL-368 handheld SSB HF radio receiver:

LW: 153-513 kHz, MW: 520-1710/522-1620 kHz, SW: 1711-29999 kHz, FM: 64-108/76-108/787-108/88-108 MHz
Sensitivity for 26dB S/N: LW 10mV/m, MW: 1mV/m, SW: 20uV, FM (for 30dB S/N) 3uV
Sync detection lock range: 1 kHz
IF DSP frequency: AM 45 kHz, FM 128 kHz
Frequency memories: LW: 100, MW: 150, SW: 300, FM: 100, SSB: 100, Sync: 100.
FM stereo 3.5mm Jack stereo
Loudspeaker: diameter 40 mm, impedance 16 ohms, nominal power 0.5 W.
Headphone impedance: 32 ohms
Power supply: 5 V DC USB Micro Type B. Integrated BL-5C battery
Current consumption: FM: 25 mA, MW and SW: 45 mA. Standby: 90 uA
Dimensions: 162 x 53 x 26 mm
Weight: 130g

Frequency range:
- LW: 153-513 kHz
- MW: 520-1710 kHz / 522-1620 kHz
- SW: 1711-29999 kHz
- FM: 64-108 / 76-108 / 87-108 / 88-108 MHz

Step LW frequency setting:
- AM broadcast: 9 kHz / 1 kHz
- SSB: 9 kHz / 1 kHz / 10 Hz
- Synchronous detection: 9 kHz / 1 kHz / 100 Hz

Step frequency setting MW 520-1710 kHz:
- AM broadcast: 10 kHz / 1 kHz
- SSB: 10 kHz / 1 kHz / 10 Hz
- Synchronous detection: 10 kHz / 1 kHz / 100 Hz

Step frequency setting MW 522-1620 kHz :
- AM broadcast: 9 kHz / 1 kHz
- SSB: 9 kHz / 1 kHz / 10 Hz
- Synchronous detection: 19 kHz / 1 kHz / 100 Hz

Step SW frequency setting:
- AM broadcast: 5 kHz / 1 kHz
- SSB: 5 kHz / 1 kHz / 10 Hz
- Synchronous detection: 5 kHz / 1 kHz / 100 Hz

Step FM frequency setting: 100 kHz / 10 kHz

Station memories (excluding ETM+):
- LW: 100
- MW: 150
- SW: 300
- FM: 100
- SSB : 100
- SYNCHRONIZATION : 100

Noise limit sensitivity :
- LW (S/N = 26dB): <10mV/m
- MW (S/N = 26dB): <1mV/m
- SW (S/N = 26dB): <20uV
- FM (S/N = 30dB): <3uV

Selectivity:
-LW: > 60 dB
- MW : > 60 dB
- SW : > 60 dB
- FM : > 60 dB
