1290–1310 MHz 70 element 23.2 dBi Low Noise Super Yagi EME Antenna 23cm70DXP (AA)
No review at the momentThe largest ever made commercial 1296 MHz – 23 cm Yagi EME antenna 70 elements 23cm70DXP

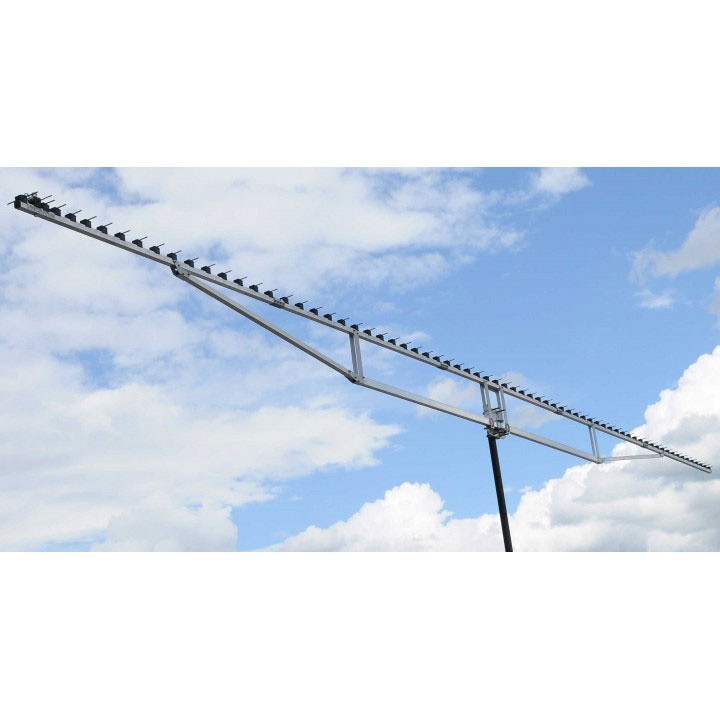

70 Elements Super Yagi antenna on the 6 meter long boom! Gain 23.2 dBi.

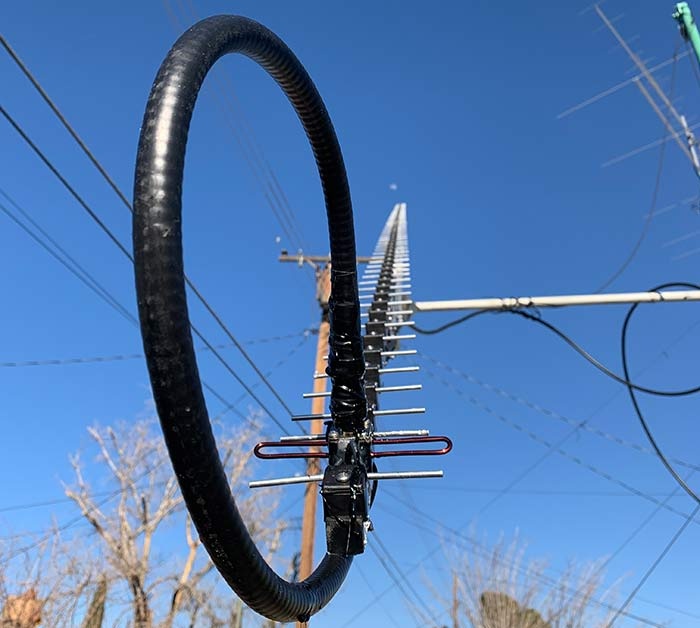

Wide-band operation 1290 – 1310 MHz. Balun is made of UT-141 or similar semi-rigid teflon cable.
Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.
Data sheet
Highest performance, nice looking, biggest ever made 1296 MHz antenna. 6 meter long boom.
70 elements provide maximum gain ever made on 23 cm band.
| Electrical Specifications: | |
| Frequency Range: | 1290 – 1310 MHz |
| Free Space Forward Gain: | 23.2 dBi |
| Front to Back Ratio: | 37 dB |
| 3 dB Horizontal Beamwidth: | 13.2° |
| 3 dB Vertical Beamwidth: | 13.4° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 300 |
| Matching Method: | Voltage balun. UT141 or similar Teflon cable |
| Connector: | “N” |
| Mechanical Specifications: | |
| Number of Elements: | 70 |
| Element Diameter: | 4 mm Aluminum rod |
| Dipole Diameter: | 3 mm Copper |
| Longest Element: | 120 mm |
| Element Mounting Position: | Above the Boom |
| Balun and Connector: | Included |
| Boom Length: | 5.9 m |

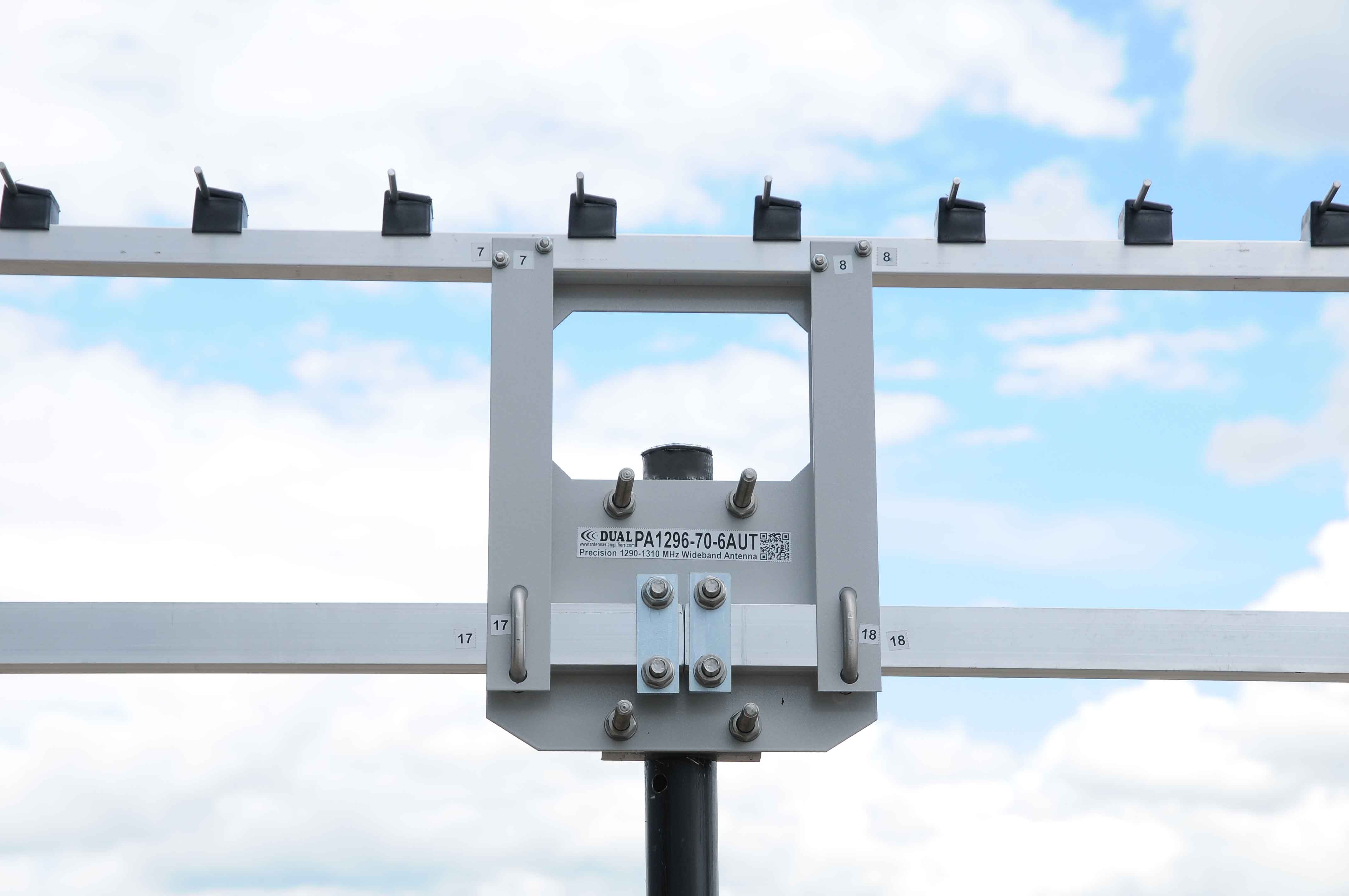

| Boom Size: | 20 x 20 mm + 20 x 30 mm support |
| Number of Boom Pieces: | 5 + 4 |
| Guy rope support: | No |
| Mounting Mast Diameter: | 30 – 50 mm 1-1/4 – 2″ OD |
| Survival Wind Speed: | 120 km/h |
| Net Weight: | 6.7 kg |
| Gross Weight: | 8.7 kg |
| Transportation Length: | 1.19 m (Airplane Checked Baggage Length) |
Antenna free space gain 23.2 dBi.
With good amplifier and preamplifier you can work EME with this single Yagi antenna.
| Vertical Stacking Distance: | |
| 2 antennas for F/S< -13.6 dB | 96 cm |
| Gain: | 26 dBi |
| Horizontal Stacking Distance: | |
| 2 antennas for F/S< -13.6 dB | 96 cm |
| Gain: | 26 dBi |
Floyd K5LA just made EME QSO with single 23cm70DXP and 375 watts with a Beko amp
Pointed at the Moon K5LA 23cm70DXP 23cm EME Single Yagi QSO with OK1DFC.
23cm EME QSO OK1DFC-K5LA Single Yagi Antenna 23cm70DXP
