10.3mm HYPERFLEX 10 M&P flexible & low loss coaxial cable

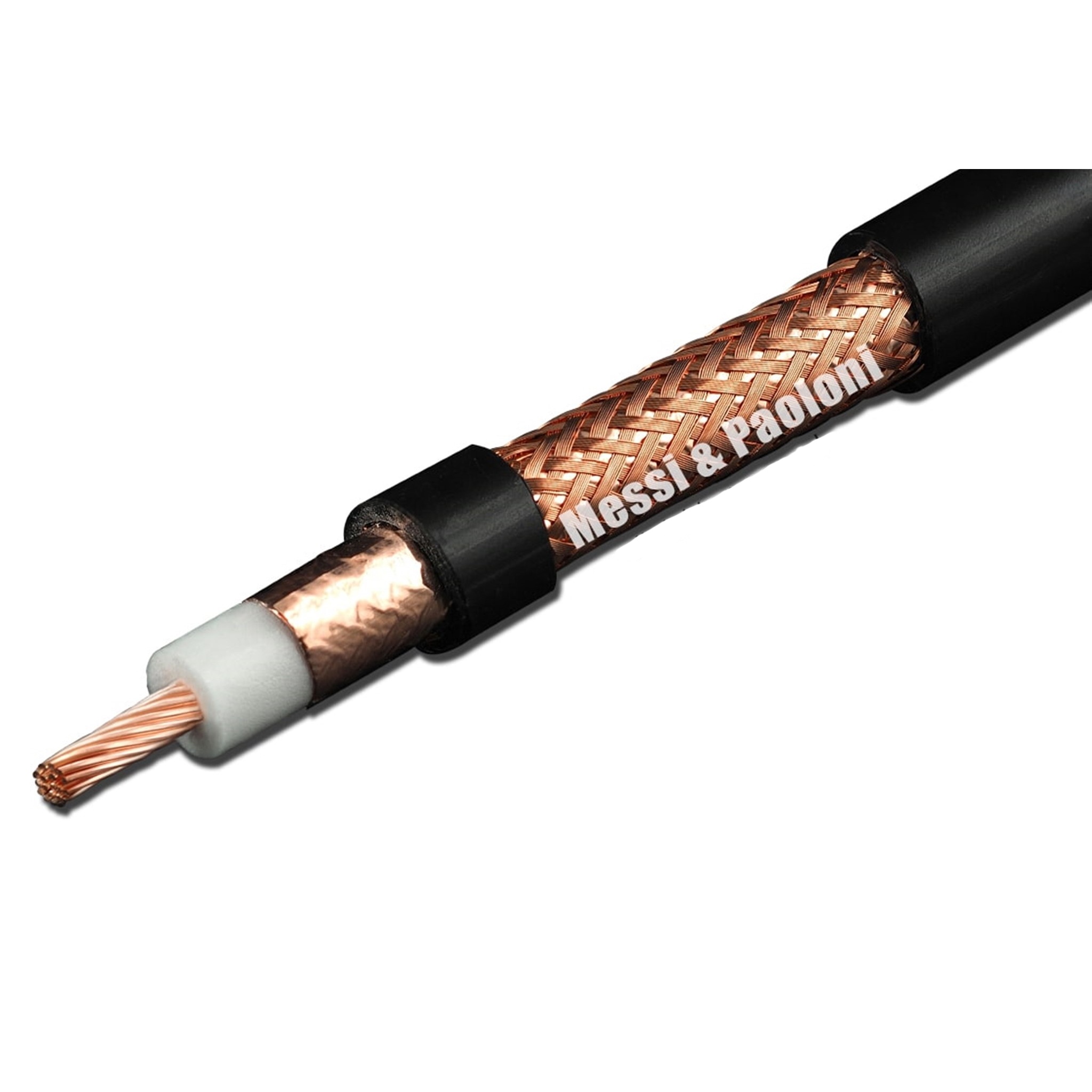

Messi & Paoloni coaxial cable, with a diameter of 10.3 mm, M&P HYPERFLEX 10, flexible, lightweight and offering better performance and lower attenuation compared to RG-213 coaxial cable.

Available in different sizes: 30m, 50m, 100m and 200m (to choose below).

Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 40 mm
Operating temperature: -40°C to + 60°C
Capacitance: 78 pF / m ± 2
Velocity: 87%
Class: A++
Internal conductor resistance: 3.6 Ohm/Km
Resistance of outer conductor: 12 Ohm/Km
Voltage test (spark test): 8 kV
Maximum peak power: 13 000 W
CE and Rohs standards.

Net weight over 100m: 11.2 Kg

PL259 (UHF-Male) or N-Male compatible connector, available as an option, below.

Price per meter from: 2.975 € including tax (2.48 € excluding tax) for 200m.

More details

99,00 € tax incl.

In stock

  • 30m
  • 50m
  • 100m
  • 200m

Download

Data sheet

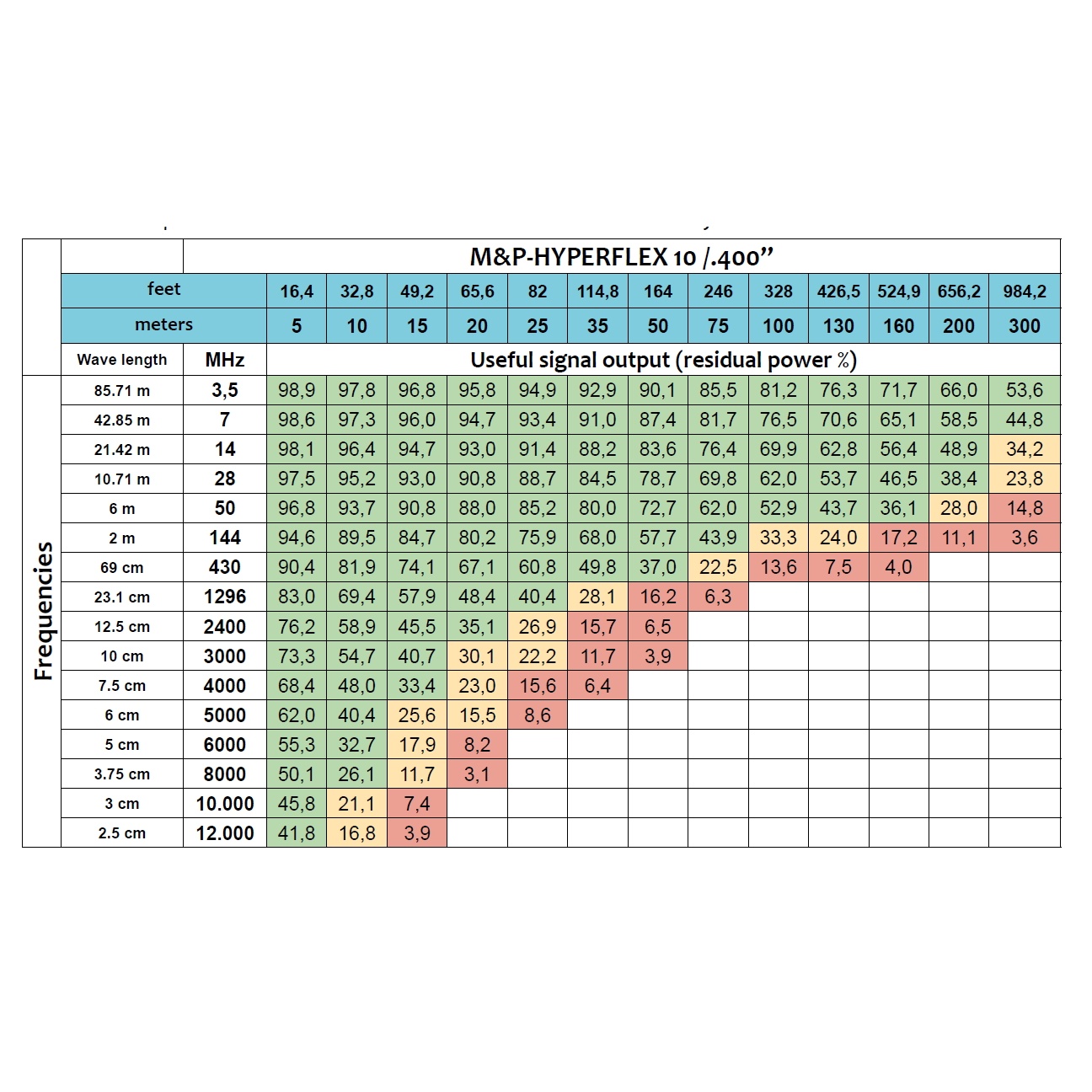

Attenuation at 20°C in dB/100m

1.8 MHz 0.8dB
3.5 MHz 1.0dB
7 MHz 1.1dB
10 MHz 1.3dB
14 MHz 1.5dB
21 MHz 1.8dB
28 MHz 2.0dB
50 MHz 2.7dB
100 MHz 3.9dB
144 MHz 4.7dB
200 MHz 5.6dB
400 MHz 8.3dB
430 MHz 8.6dB
800 MHz 11.9dB
1000 MHz 13.4dB
1296 MHz 15.4dB
2400 MHz 21.8dB
3000 MHz 24.6dB
4000 MHz 29.1dB
5000 MHz 33.1dB
6000 MHz 36.9dB
7000 MHz 40.7dB
8000 MHz 44.2dB
9000 MHz 47.5dB
10,000 MHz 50.7dB

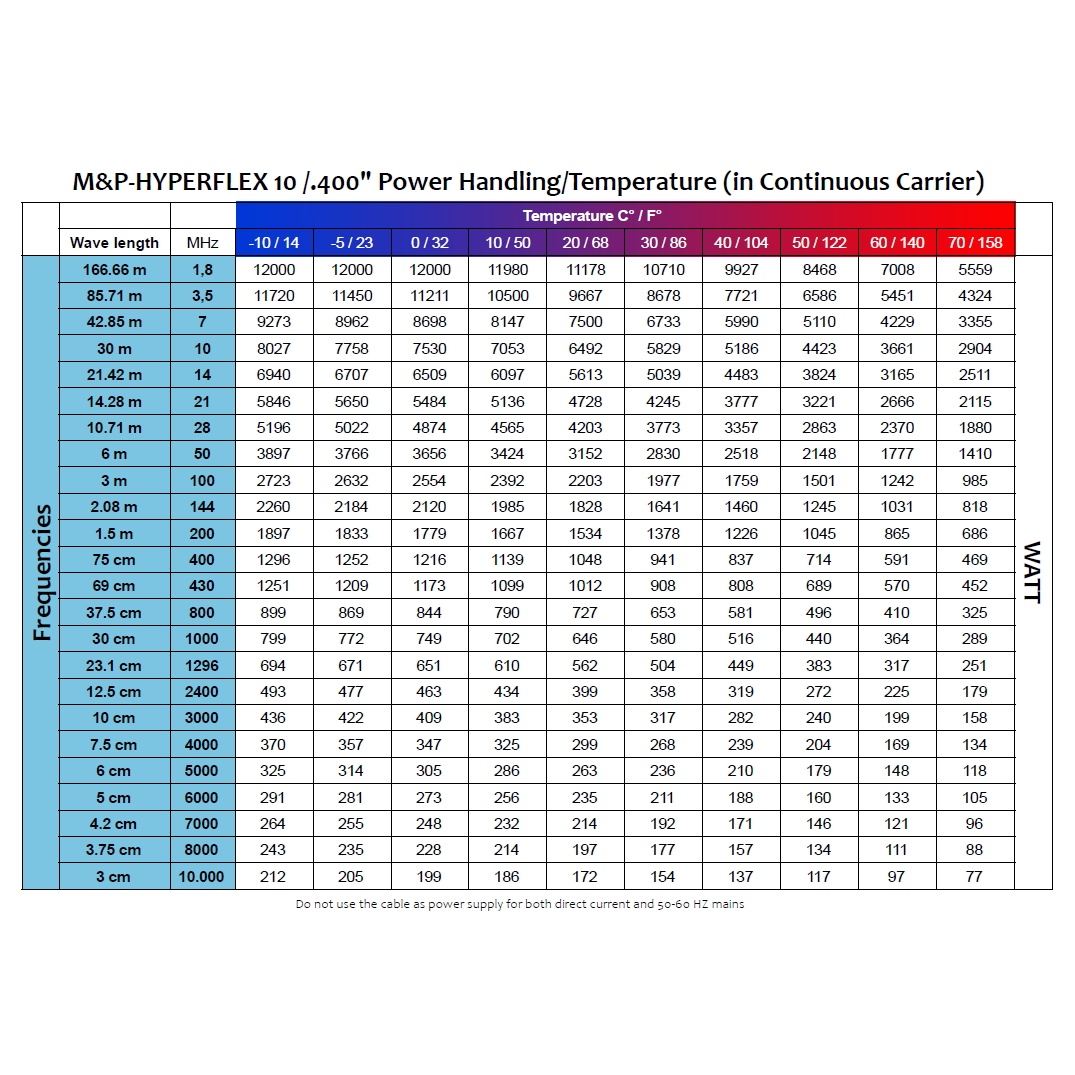

Maximum power at 40°C depending on frequency

1.8 MHz 9927 W
3.5 MHz 7721 W
7 MHz 5990 W
10 MHz 5186 W
14 MHz 4483 W
21 MHz 3777 W
28 MHz 3357 W
50 MHz 2518 W
100 MHz 1759 W
144 MHz 1460 W
200 MHz 1226 W
400 MHz 837 W
430 MHz 808 W
800 MHz 581 W
1000 MHz 516 W
1296 MHz 449 W
2400 MHz 319 W
3000 MHz 282 W
4000 MHz 239 W
5000 MHz 210 W
6000 MHz 188 W
7000 MHz 171 W
8000 MHz 157 W
10000 MHz 137 W
