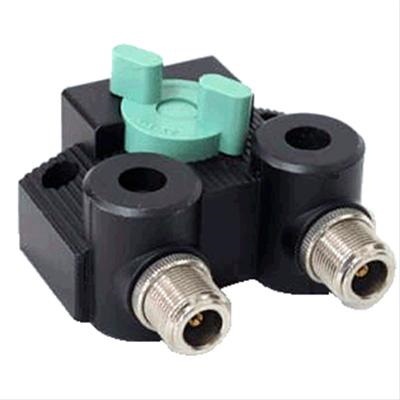

Diamond CX-210N 2-position antenna switch View larger
Diamond Antenna

DIAMOND-CX210N-1741

New product

Japan

Diamond antenna switch CX-210N 2 positions N plug

rating No review at the moment

Diamond CX-210N 2-position antenna switch with female N-plug connector, offering very low loss and high isolation, for frequency use from 0 to 3000 Mhz (3 Ghz).

This rugged antenna switch operates up to 3000 MHz and 1500 watts at HF. It uses N-type connectors for input and output.

Supplied with: 1 CX-210N switch, original warranty.

More details

91,80 € tax excl.

Out of stock, available within 1 to 2 months

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Frequency: 0-3 000 MHz
  • Power 0- 30 MHz: 1500 watts CW
  • Power 30- 150 MHz: 1000 watts CW
  • Power 150- 500 MHz: 500 watts CW
  • Power 500-1 000 MHz: 250 watts CW
  • Power 1 000-3 000 MHz: 150 watts CW
  • Insertion loss 0- 500 MHz: 0.05 dB
  • Insertion loss 500-1000 MHz: 0.1 dB
  • Insertion loss 1000-2000 MHz: 0.15 dB
  • Insertion loss 2000-3000 MHz: 0.2 dB
  • Isolation 0-200 MHz: 70 dB
  • Isolation 200-1 000 MHz: 60 dB
  • Isolation 1 000-2 000 MHz: 55 dB
  • Isolation 2 000-3 000 MHz: 50 dB
  • Impedance: 50 ohms
  • Connector: N female for input and outputs
