> Pro equipment>VHF Air Band>Yaesu FTA-850L Radio aero Aviation VHF AM 8.33 khz GPS ILS VOR Bluetooth
aero Yaesu FTA-850L VHF AM 8.33 khz View larger

YAESU

YAESU-VERTEX-FTA850L-1525

New product

Japan

Yaesu FTA-850L Radio aero Aviation VHF AM 8.33 khz GPS ILS VOR Bluetooth

rating Read the 7 reviews
Average rating: 5/5 Number of reviews: 7

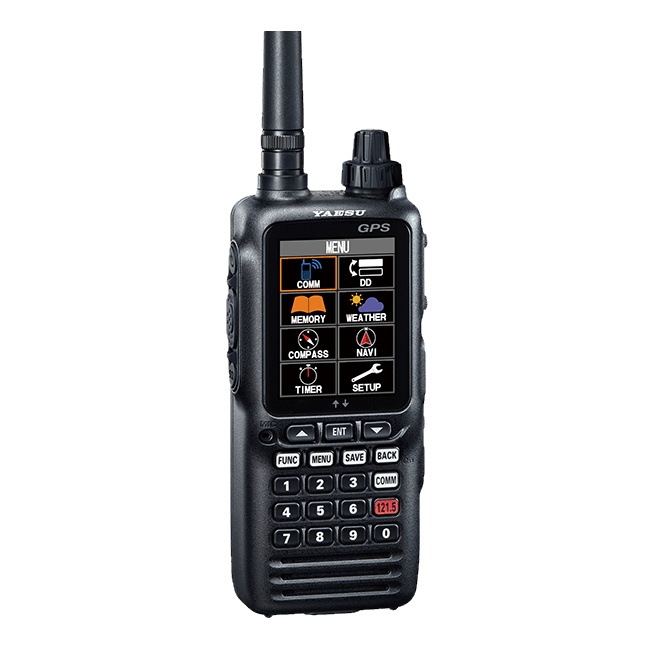

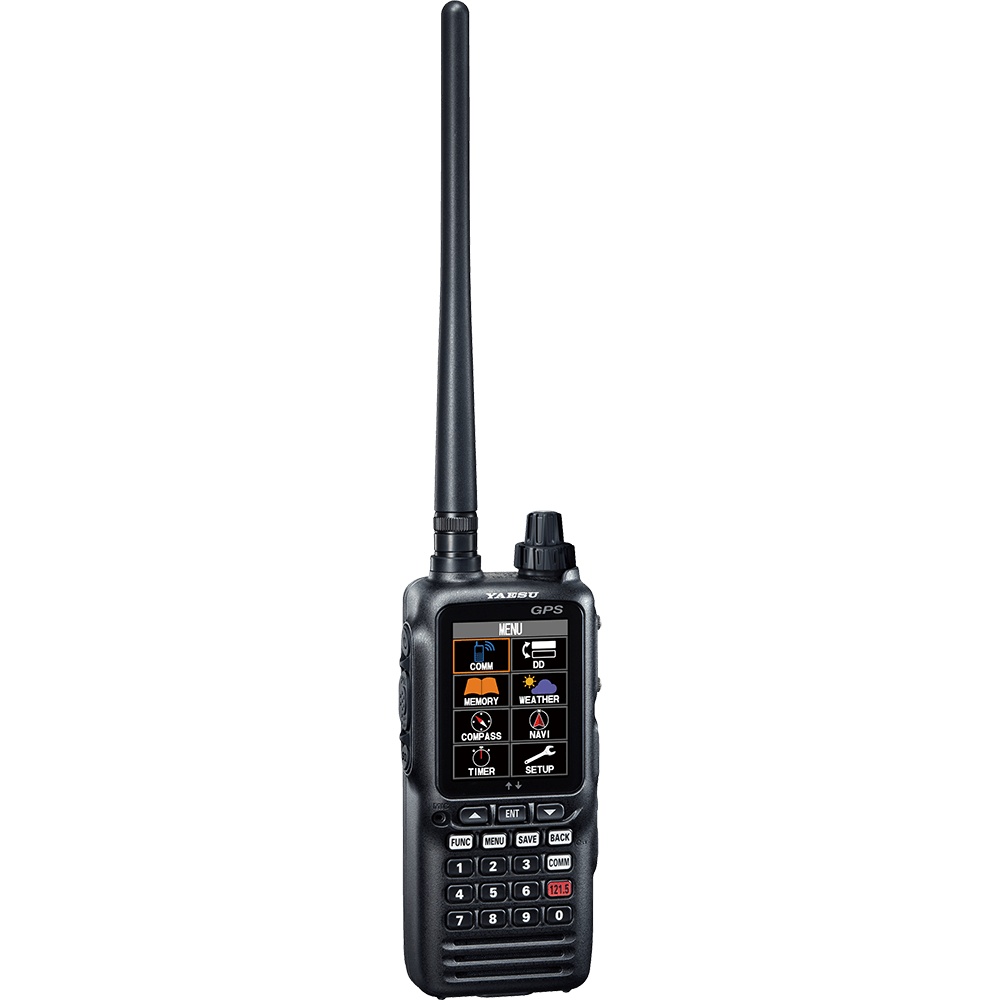

The Yaesu FTA-850L is a walkie-talkie for the 118-136MHz (VHF AM 8.33KHz) aviation band.

  • 2.4 "color TFT display
  • ILS, VOR and GPS navigation functions
  • 400 channel memory
  • Compatible with a commercially available Bluetooth headset, or with the optional Yaesu SSM-BT10 headset
  • Heavy-duty polycarbonate housing, IPX-5 waterproof rating and stringent MIL-STD-810H standards

Includes Yaesu SCU-42 adapter to connect aviation headset with 6.3mm (PJ-055) and 5.23mm (PJ-068) plug.

Supplied with: 1 FTA-850L, 1 AA battery box x6, 1 2200 mAh SBR-39LI lithium-ion battery, 1 100-220V desktop charger, 1 BNC antenna, 1 belt clip, 1 SCU-42 adapter for aviation headset, 1 cigarette lighter power cable and 1 USB programming cable for the YCE46 software to download below.

More details

459,00 € tax excl.

In stock

   2 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manual FTA-850 (FR)

17.77M

Manual FTA-850 (EN)

18.07M

Manual FTA-850 (DE)

18.02M

Manual FTA-850 (ES)

17.74M

Yaesu Aviation Handheld Guide

Comparative portable aviation radio aero Yaesu FTA series 5.19M

Certification CE RED FTA-850L

45.7k

Certification CE RED FTA-850L

45.7k

Data sheet

Handheld Walkie Talkie Frequency Range:
RX 108MHz to 136.9916 MHz (NAV and COM)
RX 161.650 to 163.275 MHz (NOAA)
RX 329.150 to 335.000 MHz (Glide Slope)
TX 118,000 to 136.9916 MHz
Channel spacing: 25 kHz and 8.33 kHz
Output power: 6W (PEP), 1.8W (carrier power) @ 7.2V DC
Speaker power: 800mw
Large LCD display
VOR and ILS display
GPS coordinates display
Bluetooth
IPX5 waterproofing (Resists spray, sustained water jet and low pressure)
MIL-STD-810F military standard
Antenna connector: BNC Female
Housing dimensions: 60 x 132 x 34 mm (without antenna)
Weight: 395g without battery
5 years Yaesu warranty
CE RED and Rohs standards

Since January 1, 2018, all aircraft have the obligation to use the new 8.33khz standard , instead of 25 kHz on the VHF aviation band AM 118-137Mhz and for all air-ground communications below FL 195 in Europe.

Certification of the Yaesu FTA-850 in flight

OSAC response thanks to the contact via the DGAC:

"It is a portable aero radio of" leisure "to discuss between two planes or two gliders or an aircraft and a man on the ground. As it concerns portable equipment, the OSAC indicates that this equipment does not require to be on the LSA. This radio can be used on board as well as on the ground, and it is up to the pilot to determine if the portable VHF AM is interfering with some of these on-board instruments and to use it or not. may not be used as radio equipment on the LSA and in areas where control requires 8.33khz radio equipment. "

From the CAA UK side, this portable radio is LA3 approved, and can be used as a secondary radio (on board or on the ground) but not as a primary radio in areas that require it.

The Yaesu aero FTA-850 does not come with a JAA FORM ONE form.
