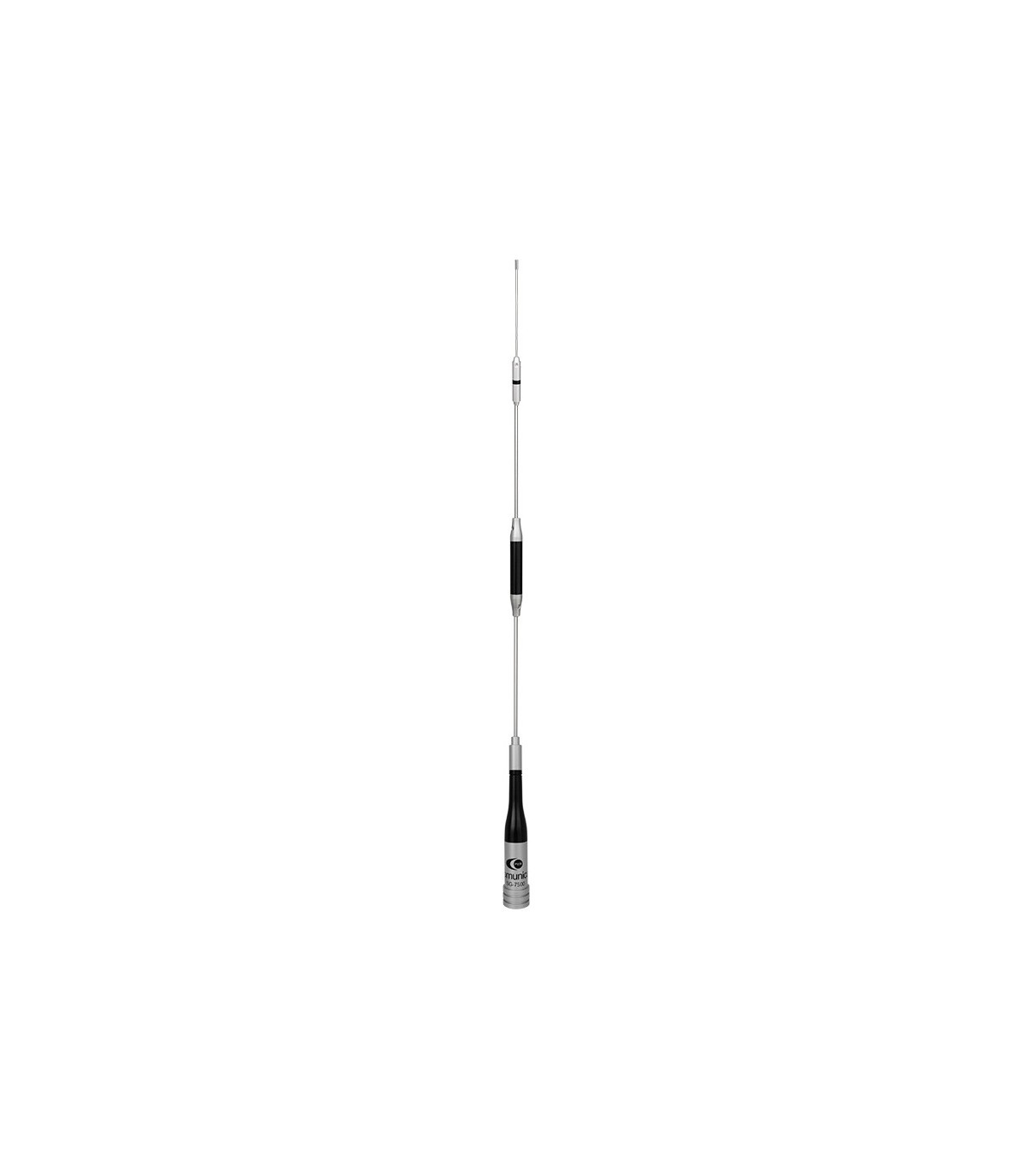

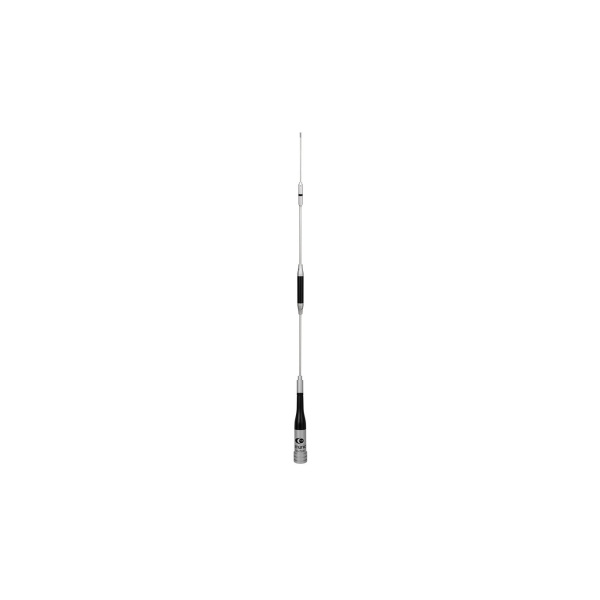

Komunica PWR-SG-7500 Mobile Dual-Band VHF/UHF 144/430MHz 150W PL-259 Antenna
Read the reviewThe mobile antenna Komunica PWR-SG-7500 is a high-performance dual-band model designed for demanding radio amateurs. It offers exceptional gain on VHF and UHF bands while supporting high powers up to 150W.
- Frequency bands: 144 MHz (VHF) and 430 MHz (UHF)
- High gain: 3.5 dBi (144 MHz) and 6.0 dBi (430 MHz)
- Maximum power: 150W (SSB/CW)
- Ground plane-free design (Radialless) for flexible installation
- Quick flip system (Flip-up) for parking access
- Sturdy PL-259 (UHF-Male) connector
- Total length of 1.05 meter
Included with: 1 Komunica PWR-SG-7500 antenna, wrench.
Data sheet
The Komunica PWR-SG-7500 antenna is the ideal choice for mobile installations requiring superior performance on the 2m and 70cm amateur radio bands. Combining robustness and high gain, it is aimed at users seeking maximum range without compromising on strength.
Key Features
- Increased Performance: Thanks to its 1/2 wave architecture in VHF and 2x5/8 wave in UHF, it offers a gain of 6 dBi in UHF for long-distance connections.
- Easy Installation: Its 'Radialless' design allows optimal operation even without a perfect ground plane, ideal for trunk or roof rack mounts.

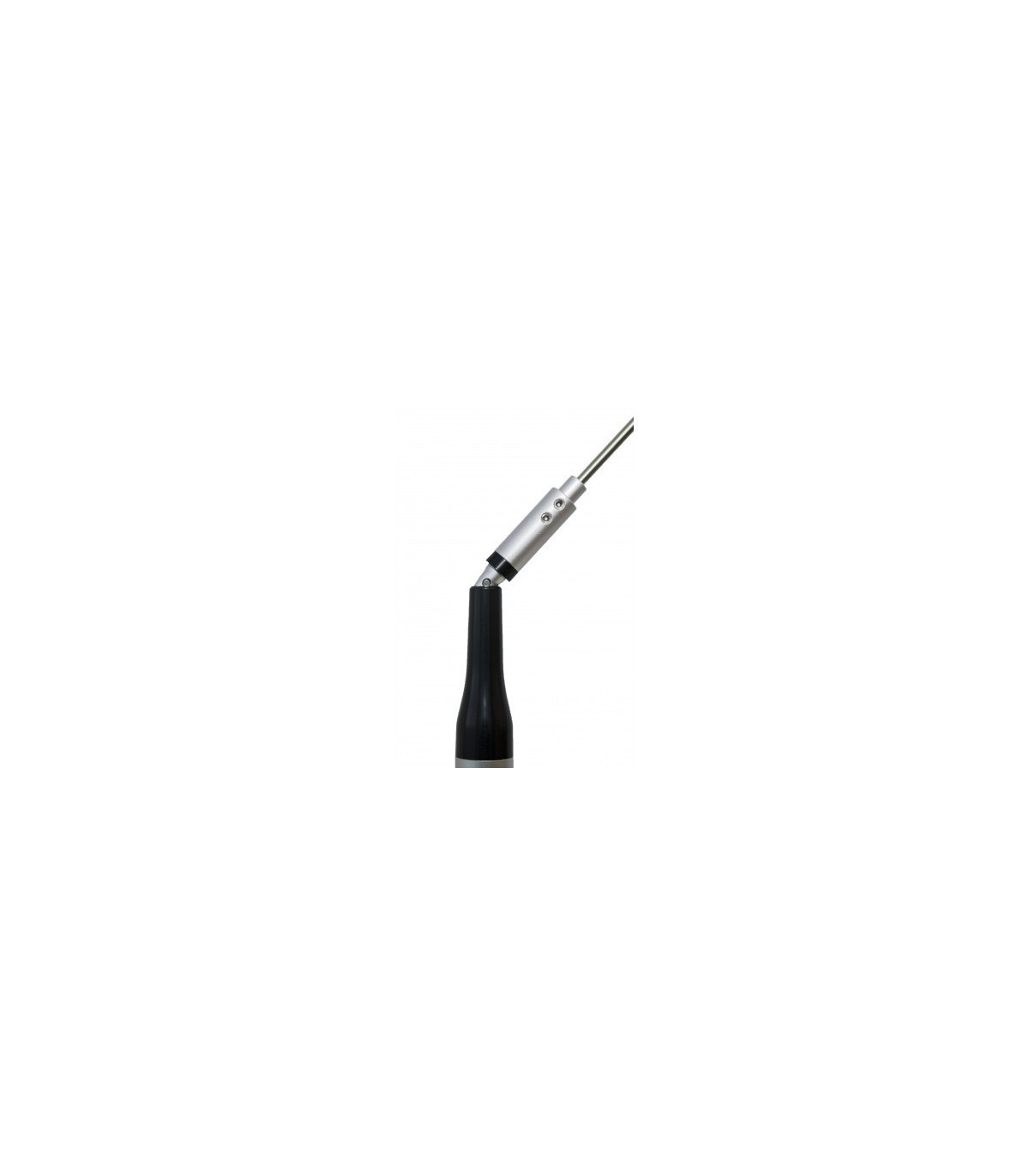

- Practicality in Everyday Life: The folding ball joint system allows the antenna to be folded instantly to enter a garage or underground parking lot.
- High Power: Capable of supporting up to 150 Watts, it is compatible with most mobile transceivers on the market.
- Manufacturing Quality: Weather-resistant materials and gold pin PL-259 connector for maximum conductivity.
Technical Specifications
- Model: PWR-SG-7500
- Brand: Komunica
- Frequencies: 144 - 146 MHz / 430 - 440 MHz
- VHF Type: 1/2 wave C-Load
- UHF Type: 2 x 5/8 wave C-Load
- Gain: 3.5 dBi (144 MHz) / 6.0 dBi (430 MHz)
- Max Power: 150 Watts
- SWR (ROS): Less than 1.5:1
- Impedance: 50 Ohms
- Length: 105 cm
- Weight: 330 g

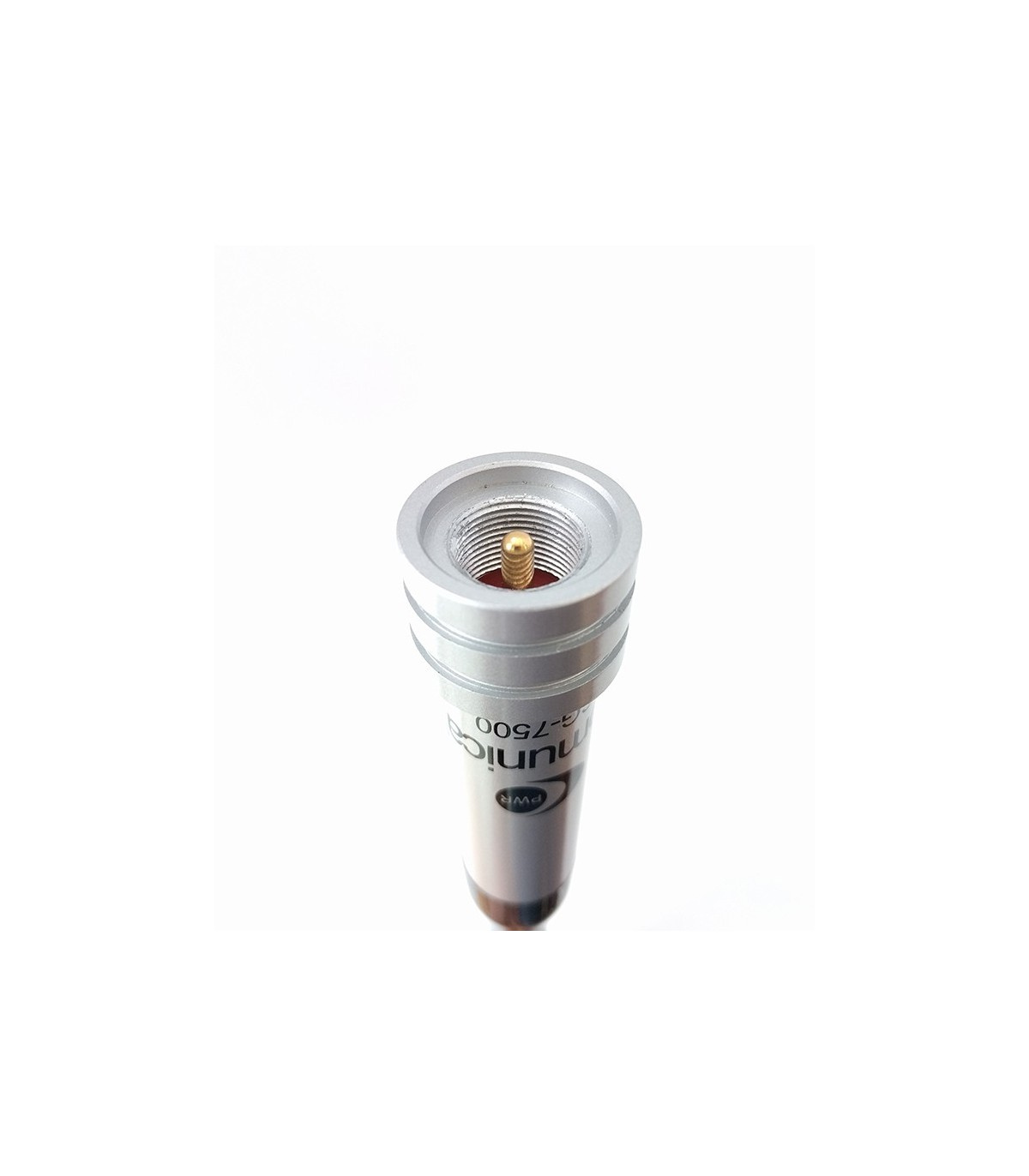

- Connector: PL-259 (UHF-Male)
- Color: Chrome and black
Compatibility
- Transceivers: Compatible with all VHF/UHF mobile stations (Yaesu, Icom, Kenwood, Anytone, CRT, Dynascan) equipped with an SO-239 output.
- Supports: Installs on all PL bases (magnetic base, trunk mount, gutter mount or fixed drilling).
FAQ
Does the antenna require SWR tuning?
The antenna is pre-set at the factory for amateur radio bands. However, fine adjustment is possible via the clamping screws if the installation environment requires it.
Can it be used on a magnetic base?
Yes, its ground plane-free (radialless) design makes it particularly effective on magnetic bases of sufficient diameter (minimum 12cm recommended for mechanical stability).
Is the whip removable?
Yes, the whip can be removed from its base for transport or to prevent theft during prolonged parking.
Why choose the Komunica PWR-SG-7500?
- Excellent gain/size ratio: With only 1m05, it competes with much bulkier antennas in terms of reception.
- Komunica reliability: A brand recognized for the durability of its RF components and the quality of its finishes.
- Extreme versatility: Whether for local traffic or via relay, its omnidirectional directivity is optimized for mobile use.
- Sleek design: Its chrome finish and aerodynamic profile blend perfectly with any type of vehicle.
