DualBand 6m & 2m Yagi Antenna 6m2m12DXA-2C Antennas Amplifiers View larger

Antennas Amplifiers

AA-0210-6m2m12DXA-2C-2344

New product

Serbia

DualBand 6m & 2m Yagi Antenna 6m2m12DXA-2C Antennas Amplifiers

rating No review at the moment

6m and 2m Dual Band Yagi Antenna 6m2m12DXA-2C

12 Elements Yagi Antenna on 3 meter Boom. 4 elements on 6 meter and 8 elements on 2 meter.

Engineered solution to work on two most popular VHF bands through one antenna!

The best ham radio antenna for 6 meter and 2 meter bands on the single 3 meter boom.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

270,83 € tax excl.

Available on backorder only, within 10 to 15 days

Data sheet

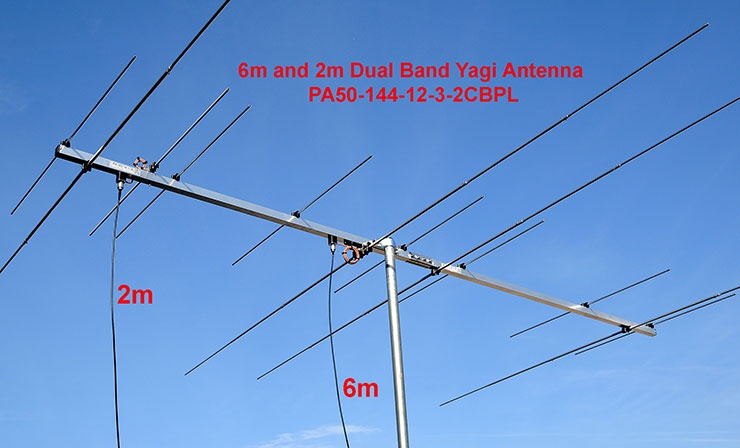

6m-2m-Dual-Band-Yagi-Antenna-PA50-144-12-3-2CBPL-Low-Noise-50MHz-144MHz-Competition-Yagi

This two band 6 meter and 2 meter Yagi antenna is ideal for poles where the space is a problem.

Excellent solution for smaller poles as well as a day in the field.

The antenna could be assembled quickly. Strong construction withstands high wind speeds.

Since the antenna has two connectors, it is possible to work with two radio stations through one antenna with added band pass filters.

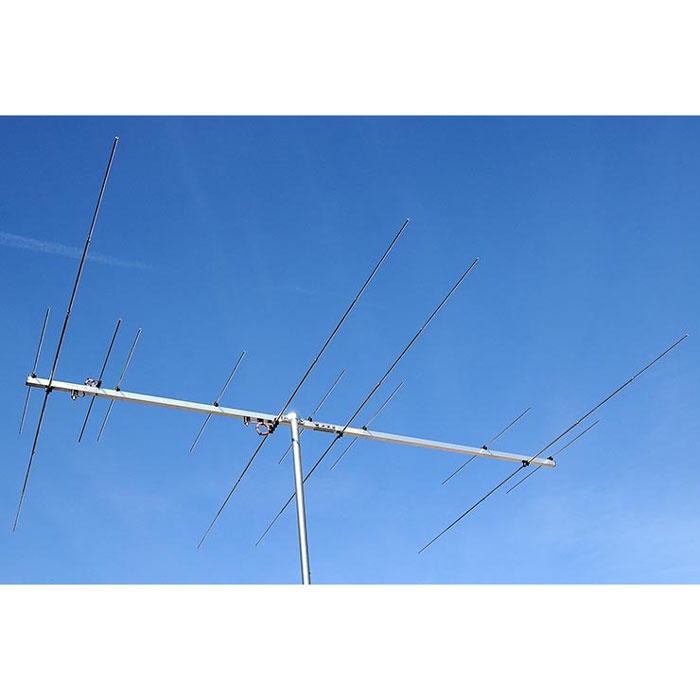

6m-2m-DualBand-Yagi-Antenna-PA50-144-12-3-2CBP-50MHz-144MHz band

Specifications for 6 meter and 2 meter dual band antenna 6m2m12DXA-2C. 6 meter section:

Electrical Specifications 6 m
Frequency Range:50 – 50.5 MHz
Free Space Forward Gain:8.5 dBi
Front to Back Ratio:21 dB
3 dB Horizontal Beamwidth:TBA°
Polarization:Horizontal or Vertical
Nominal Input Impedance:50 Ohms
SWR Across Entire Band:< 1.2
Maximum Power Input:1000 W, 1500 W available
Matching Method:Direct feed through common mode balun
Input Connector:“N”
Mechanical Specifications 6 m
Number of elements:4
Element Diameter:12 mm, 10 mm and 10 mm Aluminum tube
Dipole Diameter:12 mm, 10 mm and 10 mm Aluminum tube
Longest element:3.1 m
Element Mounting Position:Below the Boom
Balun and Connectors:Included
Boom Length:2.92 m
Boom Size:30 x 30 mm
Number of Boom Pieces:2
Guy rope support:Not necessary. Strong boom
Mounting Mast Diameter43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed:150 km/h
Transportation Length:1.49 m
Antenna Net Weight:4.7 kg
Specifications for dual band 50 MHz and 144 MHz Yagi Antenna 6m2m12DXA-2C 2 meter section:
Electrical Specifications 2 m
Frequency Range:144 – 145 MHz
Free Space Forward Gain:12.1 dBi
Front to Back Ratio:27 dB
3 dB Horizontal Beamwidth:TBA°
Polarization:Horizontal or Vertical
Nominal Input Impedance:50 Ohms
SWR Across Entire Band:< 1.2
Maximum Power Input:More than 500 W, 1500 W available
Matching Method:Direct feed through common mode balun
Input Connector:“N”
Mechanical Specifications 2 m
Number of elements:8
Element Diameter:8 mm Aluminum tube
Dipole Diameter:8 mm Hard Copper tube
Longest element:1040 mm
Element Mounting Position:Below the Boom
Balun and Connectors:Included
Boom Length:2.92 m
Boom Size:30 x 30 mm
Number of Boom Pieces:2
Guy rope support:Not necessary. Strong boom
Mounting Mast Diameter43 – 70 mm 1-1/4″ – 2-3/4″
Survival Wind Speed:150 km/h
Transportation Length:1.49 m
Antenna Net Weight:4.7 kg

Former reference : PA50-144-12-3-2CAP.
