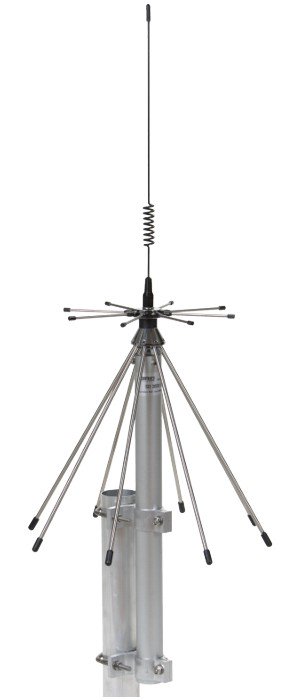

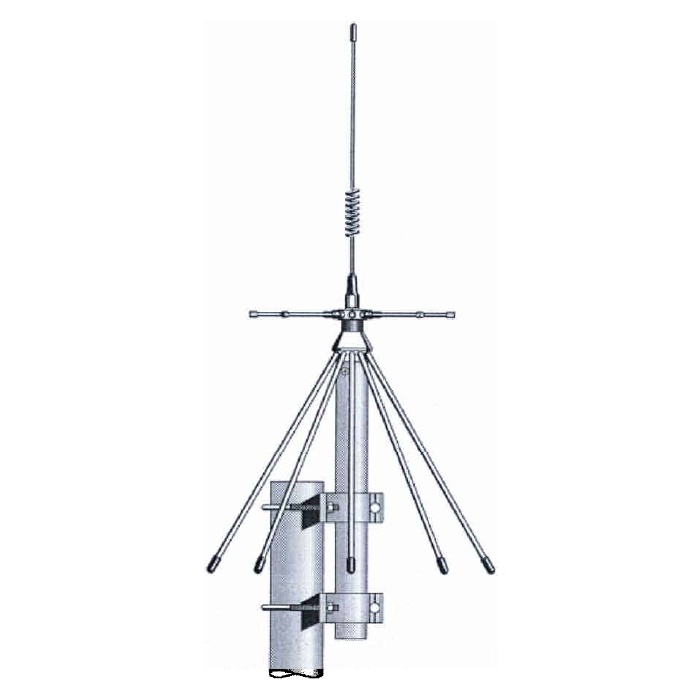

Discone antenna 300-3000 Mhz SIRIO SD 3000 N

SIRIO SD 3000 N/U discone antenna, wide band covering all frequencies in reception from 300 to 3000 Mhz and the amateur radio bands 70cm, 23cm in transmission, with N female connector on the SD3000N version or UHF female connector (SO-239) on the SD3000U version, and a compact size of 72.5cm height and 27cm circumference.

- Reception from 300 to 3000 MHz
- Transmitting on 430-440/1200/2400 MHz
- Compact and lightweight antenna

More details

Download

Manual Sirio SD 3000

86.61k

SIRIO Discone comparison

Comparison of SIRIO discone antennas: SD-1300 U/N, SD-2000 U/N and SD 3000 U/N. 1.4M

Data sheet

Length: 725mm
Radians circumference: 270 mm
Weight: 830g
Gain: 0dB (2dBi)
Impedance: 50 Ohms
Connector: N Female (SD-3000N) or UHF Female (SD-3000U)
Maximum power: 200W
SWR: Less than 2
Adjustable transmit (TX): 340-535, 545-960, 1180-1380, 1660-1910 and 1980-3000 MHz
Accepted mat Diameter: 25mm to 54mm
Wind resistance: 150 Km/h
