> LPWAN & IoT>WIFI>LILYGO T-BEAM SUPREME SX1262 433 MHz Meshtastic LoRa WiFi BT5 GPS

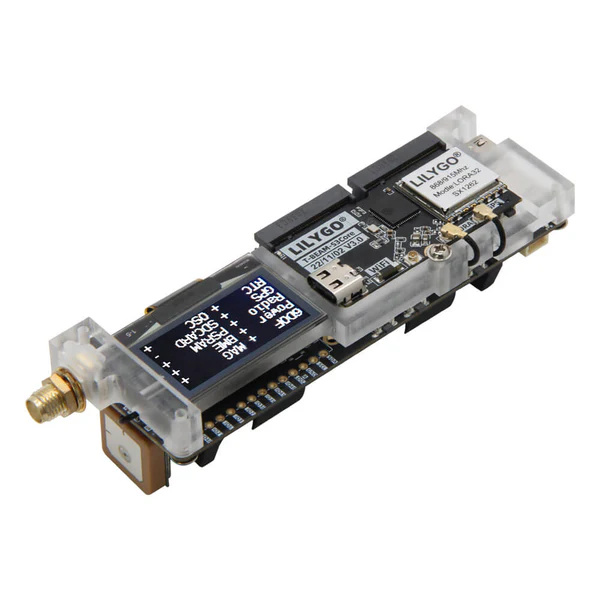

New TTGO T-BEAM SUPREME 3.0 SX1262 Meshtastic LoRa 433 MHz ESP32 WiFi BT5 GPS View larger
TTGO by LilyGO

TTGO-TBEAM-SUPREME-433-H664-2825

New product

China

LILYGO T-BEAM SUPREME SX1262 433 MHz Meshtastic LoRa WiFi BT5 GPS

rating No review at the moment

Evolution of the LILYGO TTGO T-BEAM SUPREME Meshtastic, IoT development board for the LoRa 433 MHz ISM band, with 802.11 b/g/n WIFI connection , Bluetooth/BLE 5, soldered 2.4cm OLED screen, L76K GPS module and battery holder (battery not included). With Meshtastic firmware installed.

Supplied with: 1 LILYGO TTGO T-BEAM Supreme 3.0 Meshtastic module, 1 433 MHz antenna, 2 headers (soldered), 1 OLED screen (soldered). Battery and USB cable not included.

More details

69,00 € tax excl.

In stock

   More than 10 Items

Data sheet

  • Microprocessor : ESP32-S3FN8 dual-core LX7
  • LoRa module : SX1262
  • ISM frequencies: 433 MHz
  • Max. transmission power +20dBm - 100mW
  • Frequency stability: +/- 15KHz
  • Interface: SPI
  • Operating temperature: -40° / +85° (-40° / +85°)
  • RSSI digital function
  • Automatic frequency correction
  • Automatic gain control
  • Fast wake-up and frequency hopping
  • Data packet manager
  • Antenna connector: SMA female
  • GPS modules L76K
  • With integrated ceramic GPS antenna
  • Bluetooth 5 module
  • WIFI module: 2.4 GHz
  • EEPROM configuration data backup
  • LED signal indicator
  • Battery management
  • Power supply: 3V-5V
  • Power supply: Micro-USB or 18650 battery (not included)
  • Serial chip: CH9102
  • Preloaded firmware : Meshtastic
  • TTGO T-BEAM version: SUPREME
  • Flash memory: 8MB
  • PSRAM memory: 8MB
  • 3 buttons : Power+IO38+Reset
