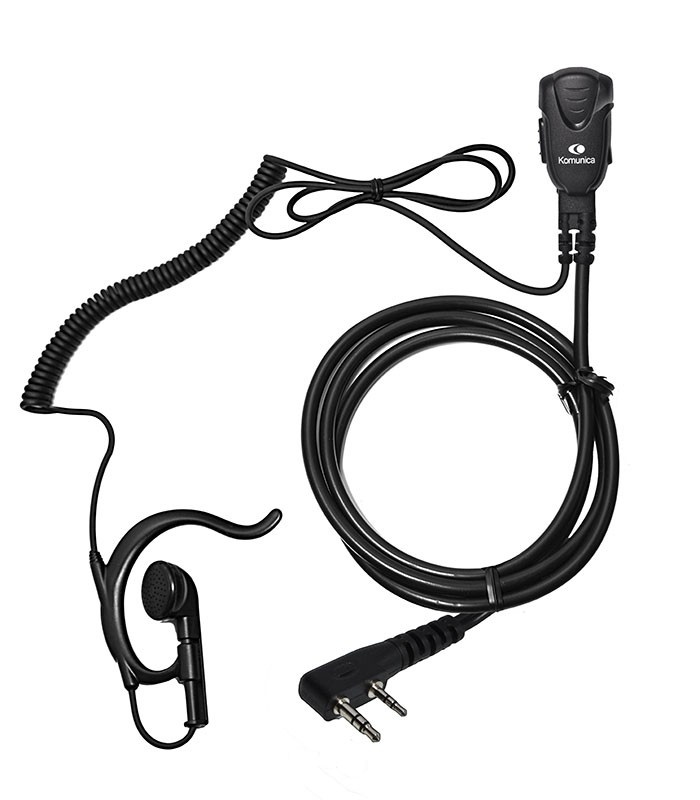

Micro-earphone with sprirale cord compatible KENWOOD WOUXUN BAOFENG

Compatible with: BAOFENG, WOUXUN, KENWOOD:

TK-3701D, TK-272G/372G, TK3130 Pro-Talk XLS, XLS, TK-3301/3131 Free-Talk XLS, Serie: 60, 70, 160, 170, 202, 3201, 302, , 360, 312, 000, NX Digital, D40 TK-2000, TK-2302, TK-2312, TK-2360, TK-3000, TK-3301E, TK-3302,TK-3312, TK-3360  TK-3401E,  TK-3501E.

NX-220E, NX-320E, NX-220E2, NX-320E2, NX-220E3, NX-320E3

HYTERA: TC Series: TC-265, TC-268, TC-268S, TC-270, TC-278, TC-365, TC-366, TC-368, TC-368S, TC-370, TC-380.

Wouxun, Zodiac,  TYT, Intek MT/KT/DX, Midland CT 210/410/710/890/ BR03

Microphone Unit

• Type of Element: Non-directional -Electric condenser
• Sensitivity: -38dB (1V/ 1Pa)
• Output Impedance: 2k ohms
• Microphone size: 32·16·15 mm

Earphone Unit

• PWR-EH5 is supplied as standard
• Diameter: 15 mm
• Out Level: 94 dB/0.05 Watt. 0.01 Meter. (Artificial Ear IEC-318)
• Input Power: 0.1W
• Max Input Power: 0.2W
• Output Impedance: 32 ohms
