basic micro-earphone compatible with Kenwood (2Pin) View larger
Previous Next

Komunica

KOM-KP-2202-1180

New product

Spain

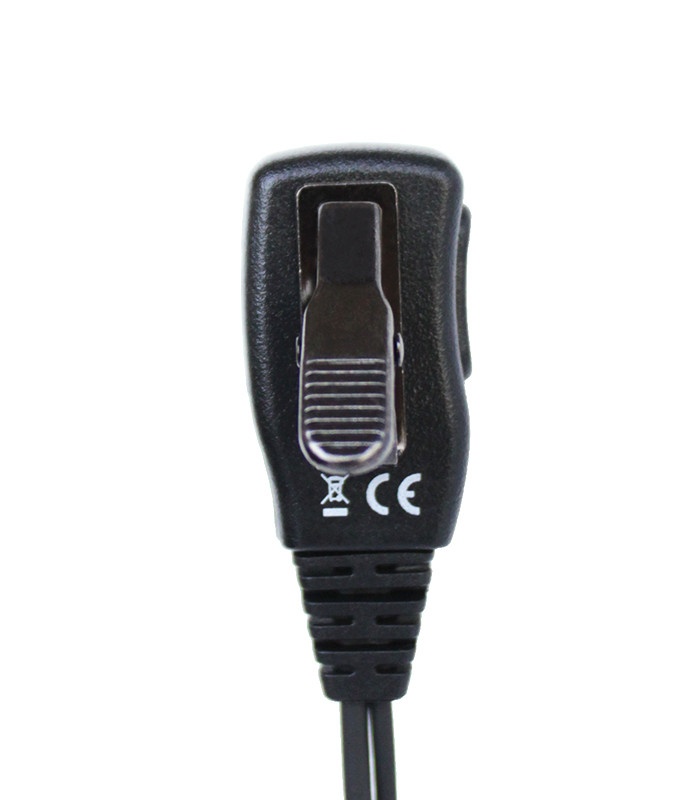

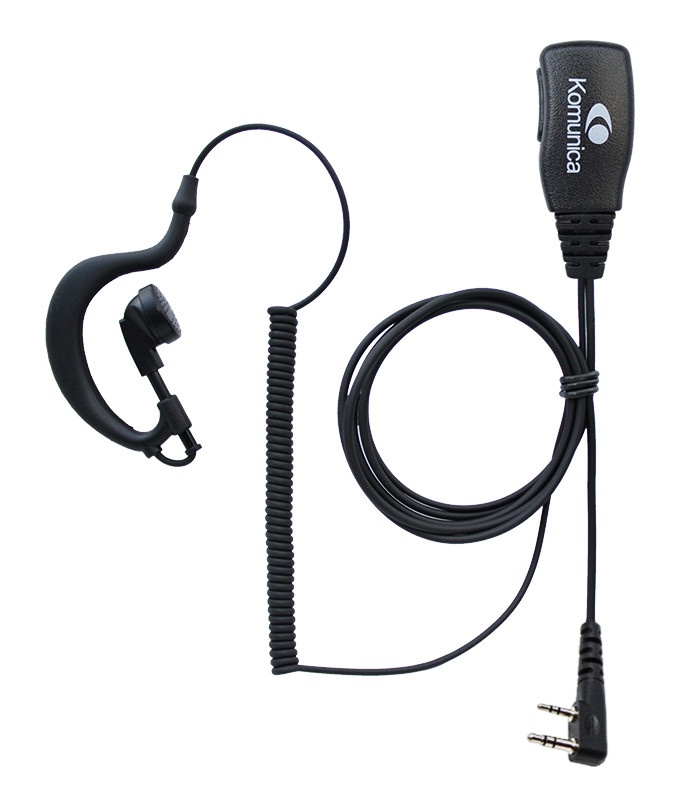

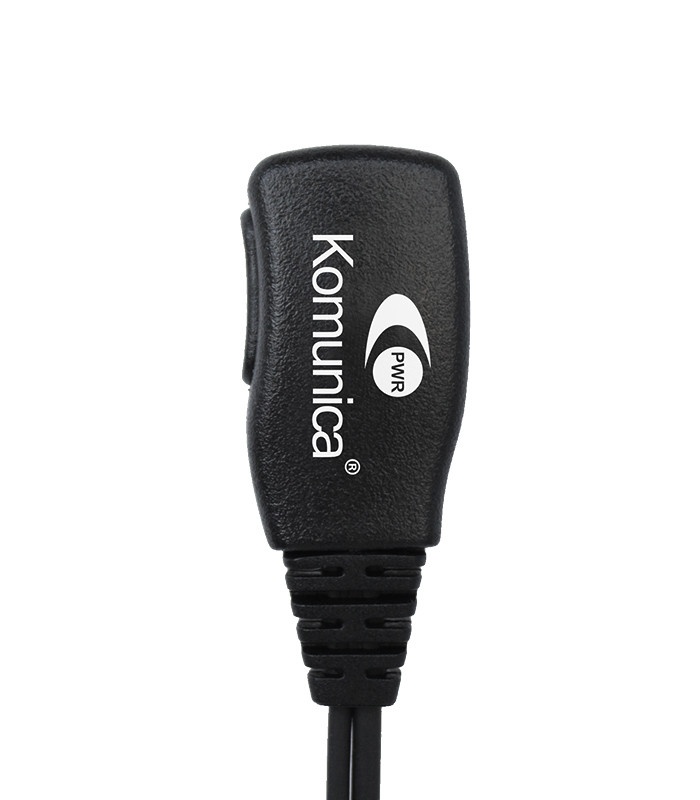

basic micro-earphone compatible with Kenwood (2Pin)

KENWOOD:

K-272G/372G, TK3130 Pro-Talk XLS, XLS, TK-3301/3131 3201, 302, , 360, 312, 000, NX Digital, D40 TK-2000, TK-2302, TK-2312, TK-2360, TK-3000, TK-3301E, TK-3302,TK-3312, TK-3360, TK-3401E, TK-3501E.NX-220E, NX-320E, NX-220, NX-320

HYTERA: TC-265, TC-268, TC-268S, TC-270, TC-278, TC-365, TC-366, TC-368, TC-370, TC-380.

Wouxun, Baofeng, Zodiac, TYT, Intek MT/KT/DX, Midland CT 210/410/710/890/ BR03

More details

11,61 € tax incl.

12,90 € tax incl.

In stock

Data sheet

Feature

  • Reinforced cable
  • High quality earphone and microphone provide absolute audio clarify
  • Revolving ear-hook allows use either right or left ear and adapts easily to any ear size
  • Designed for general applications, industrial, hotels hospitals surveillance, etc
Speaker
  • Distorsion:  <= 5% at 100 Hz – 5 KHz 1mW
  • Input Power:  Rated: 10mW Max:20mW
  • Speaker Sensitivity: 80dB±3dB @ 1kHz
  • Rated Resistance: 32 ohms ± 15%
  • Working Temperature:  -20ºC ~ + 55º
Microphone
  • Microphone Type:  Electret Microphone
  • Frequency Range: 100Hz - 10kHz
  • Directivity:  Omni-directional
  • Sensitivity: <=.2k ohms
  • Impedance:  -42dB±3dB @ 1kHz
  • Working Voltage:   1V~10V
  • Working Temperature:  -20ºC ~ + 55º
