VHF-UHF Abbree Tactical Foldable Antenna for Baofeng Anytone Yaesu ABBREE Handheld ABBREE-ANT-88CM-917 View larger

ABBREE

New product

China

VHF-UHF Abbree Tactical Foldable Antenna for Baofeng Anytone Yaesu

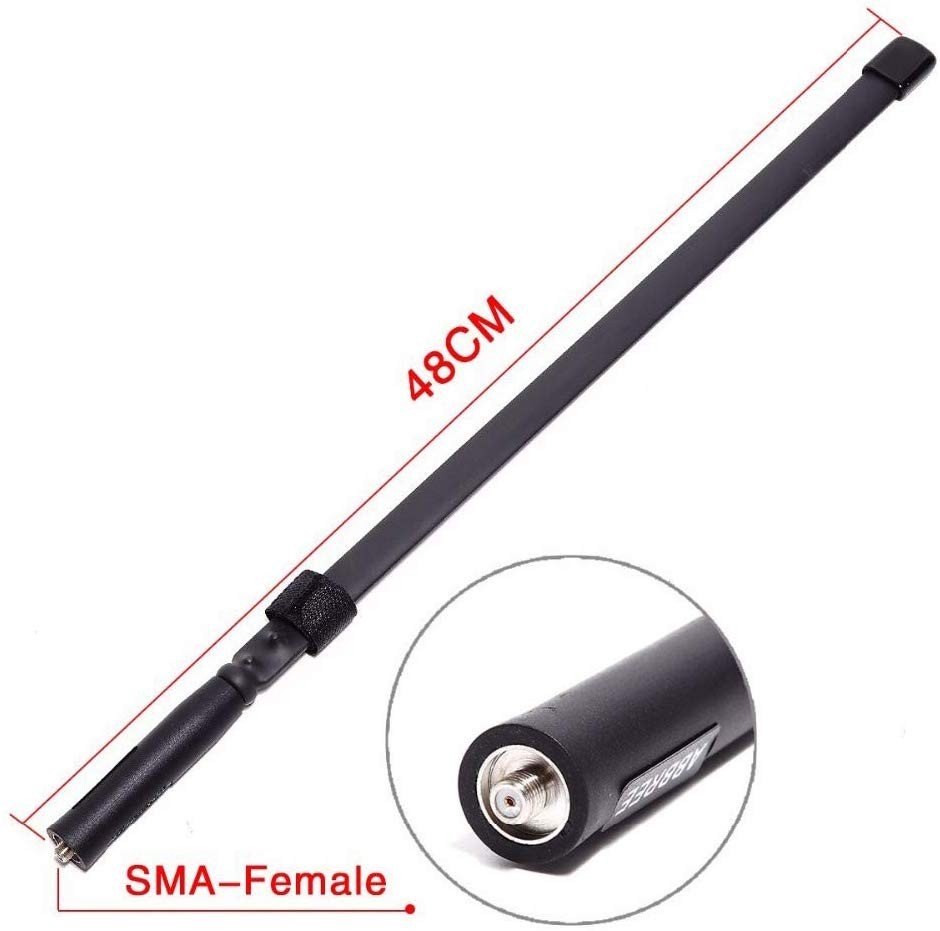

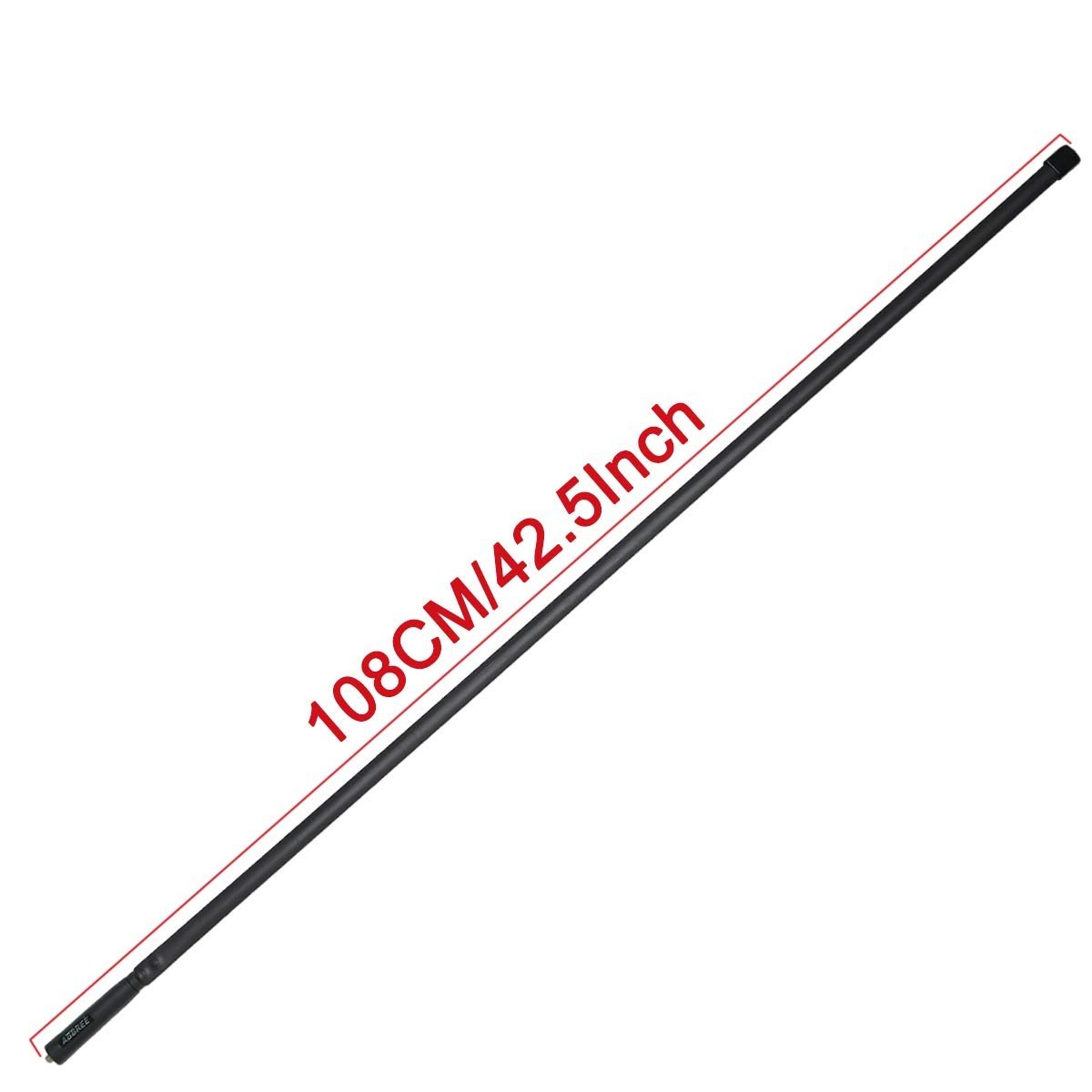

This foldable tactical antenna for VHF 144Mhz and UHF 430Mhz bands is available with a female SMA or SMA male connector and in 4 different sizes: 33cm, 48cm, 88cm* and 108cm.

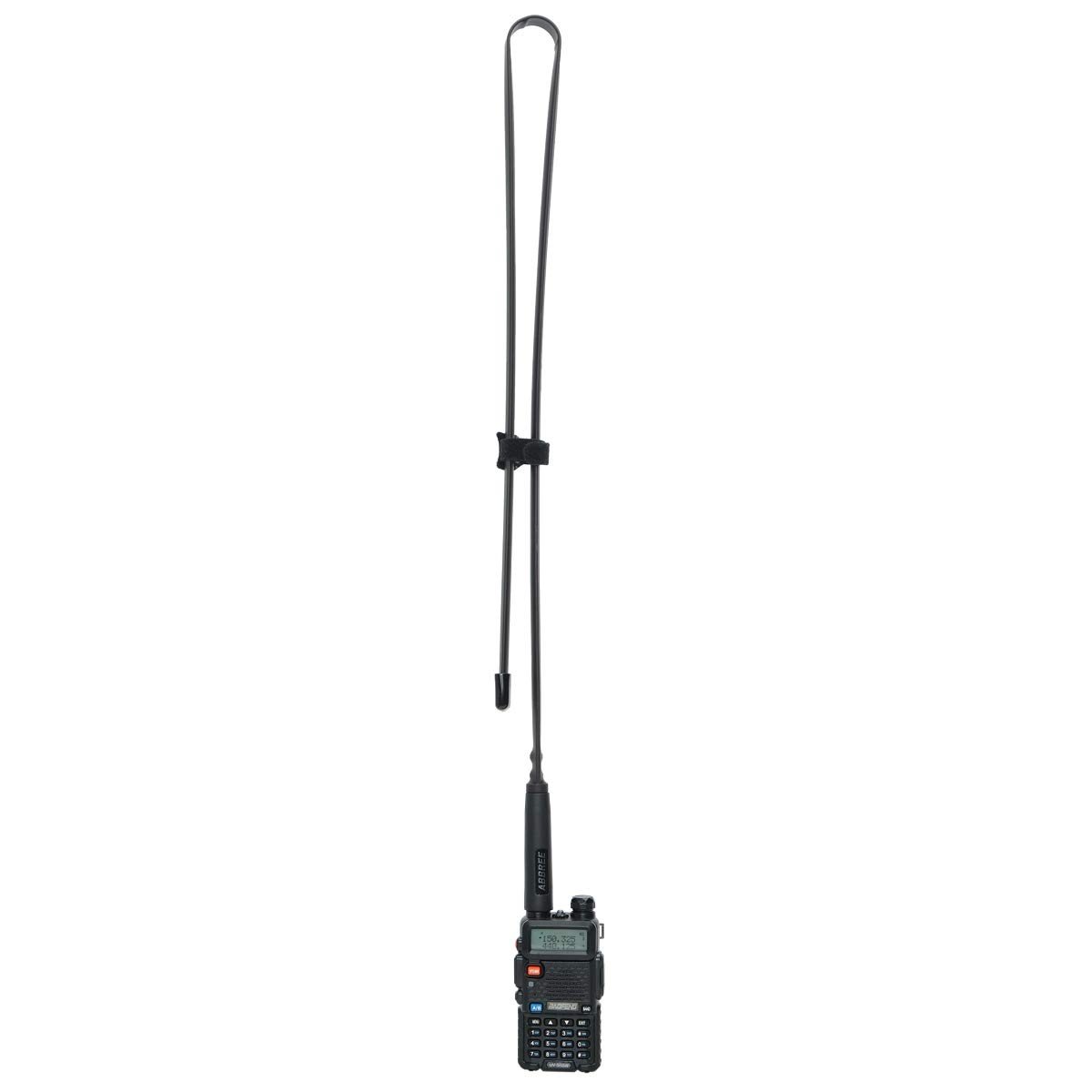

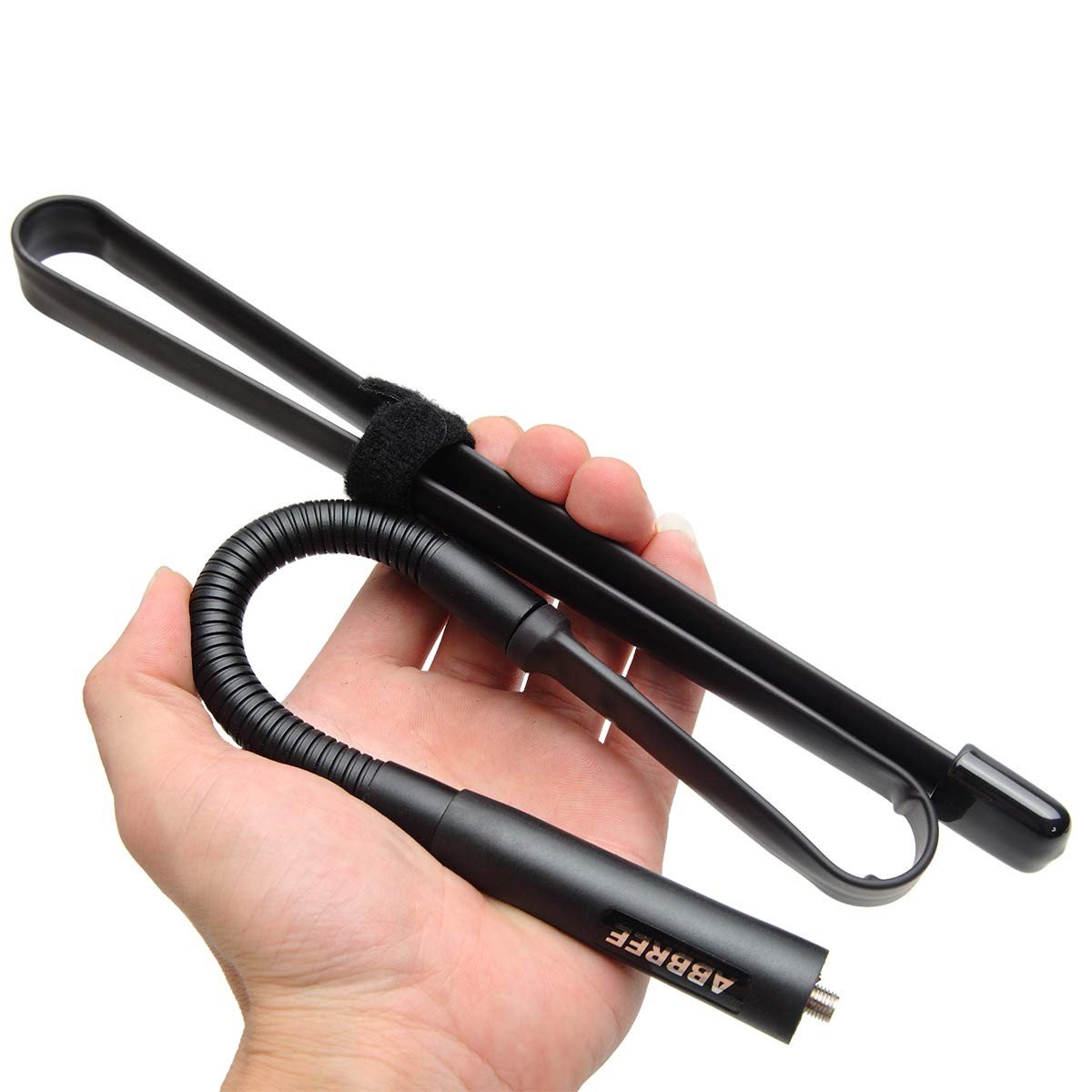

* The 88cm version has an additional gooseneck type element.

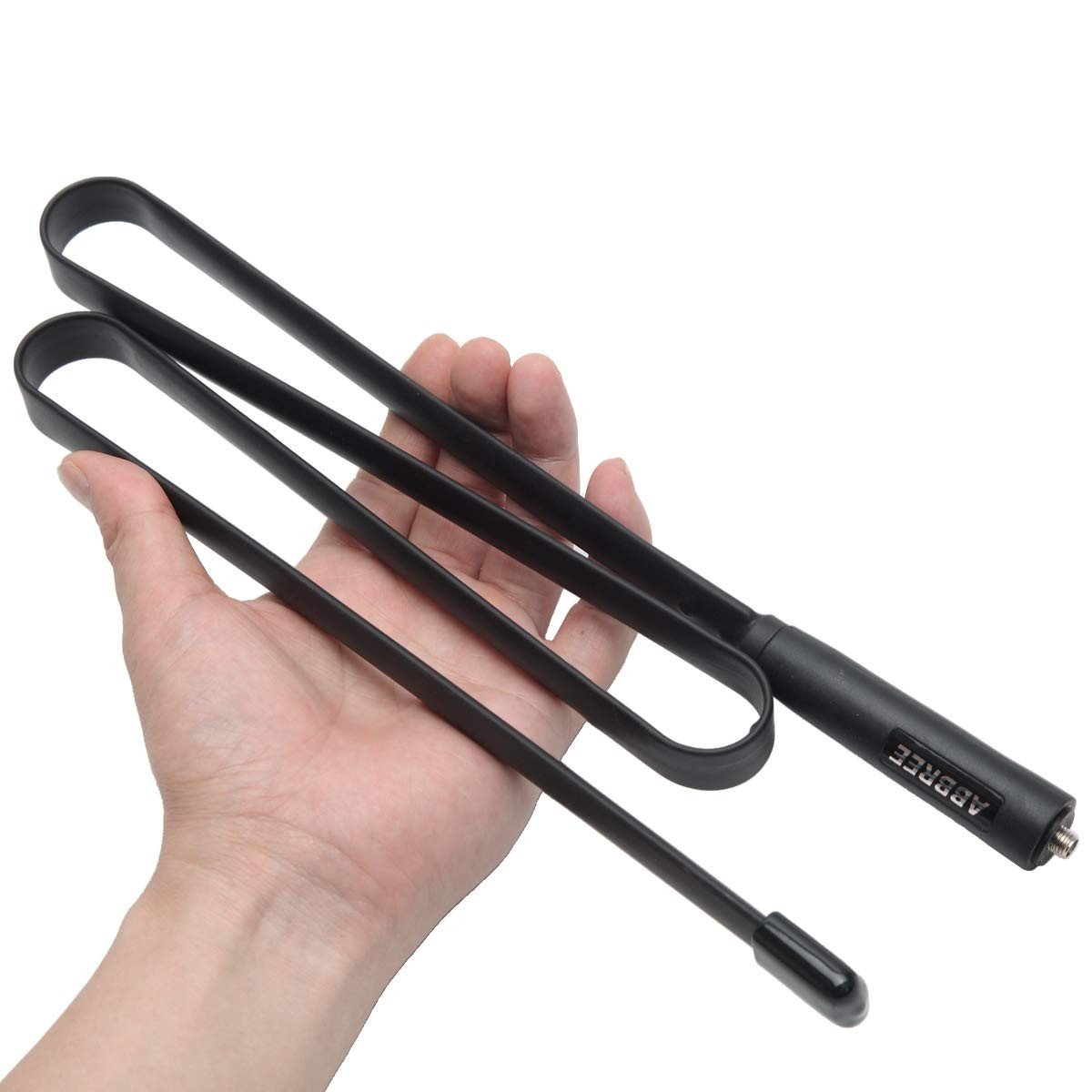

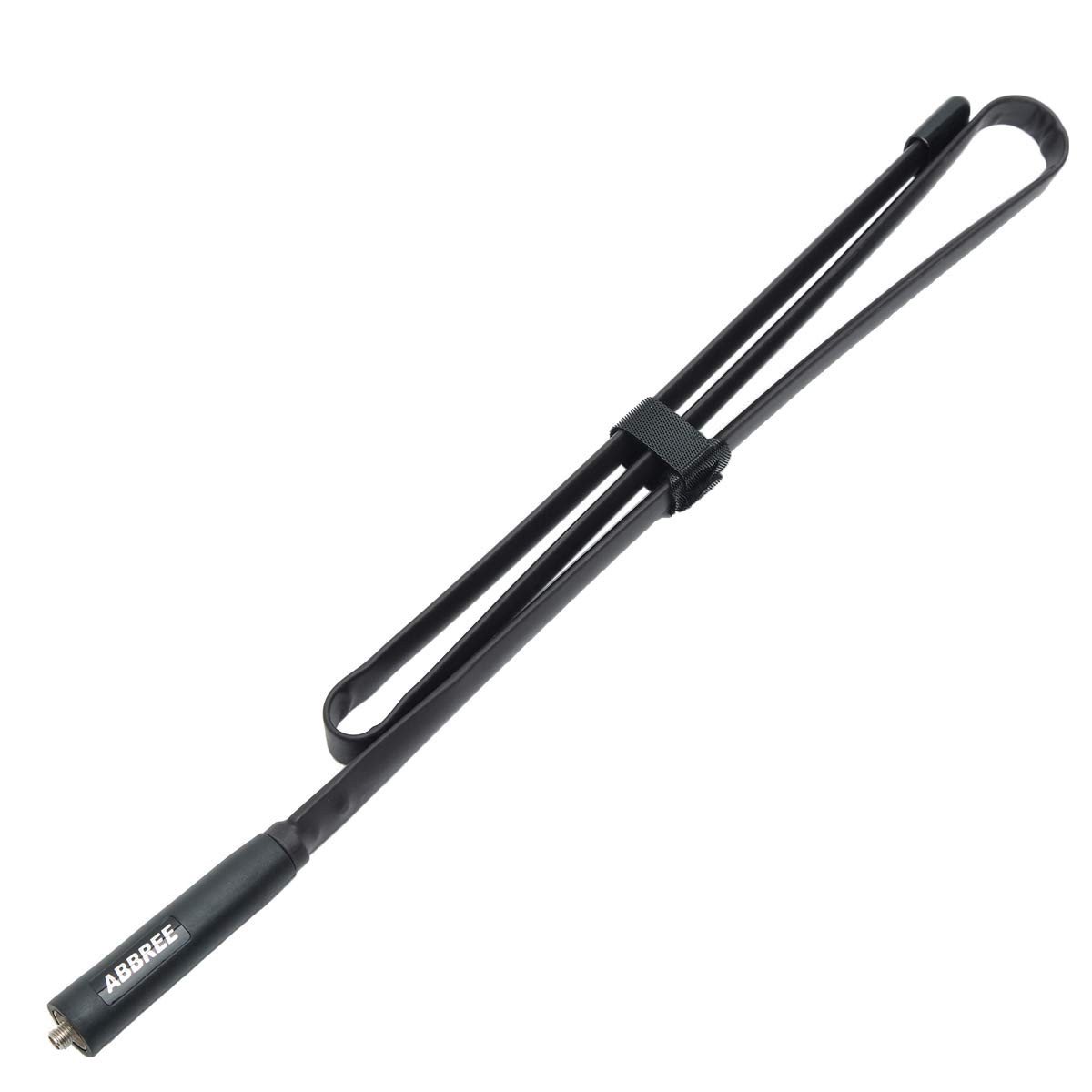

Military antenna type, it can be easily stored out of use and robust design for outdoor radio activities and long distance communication.

The Abbree tactical antenna is compatible with the majority (except waterproof) Baofeng, Anytone, wouxun, Yaesu, Icom walkie-talkies.

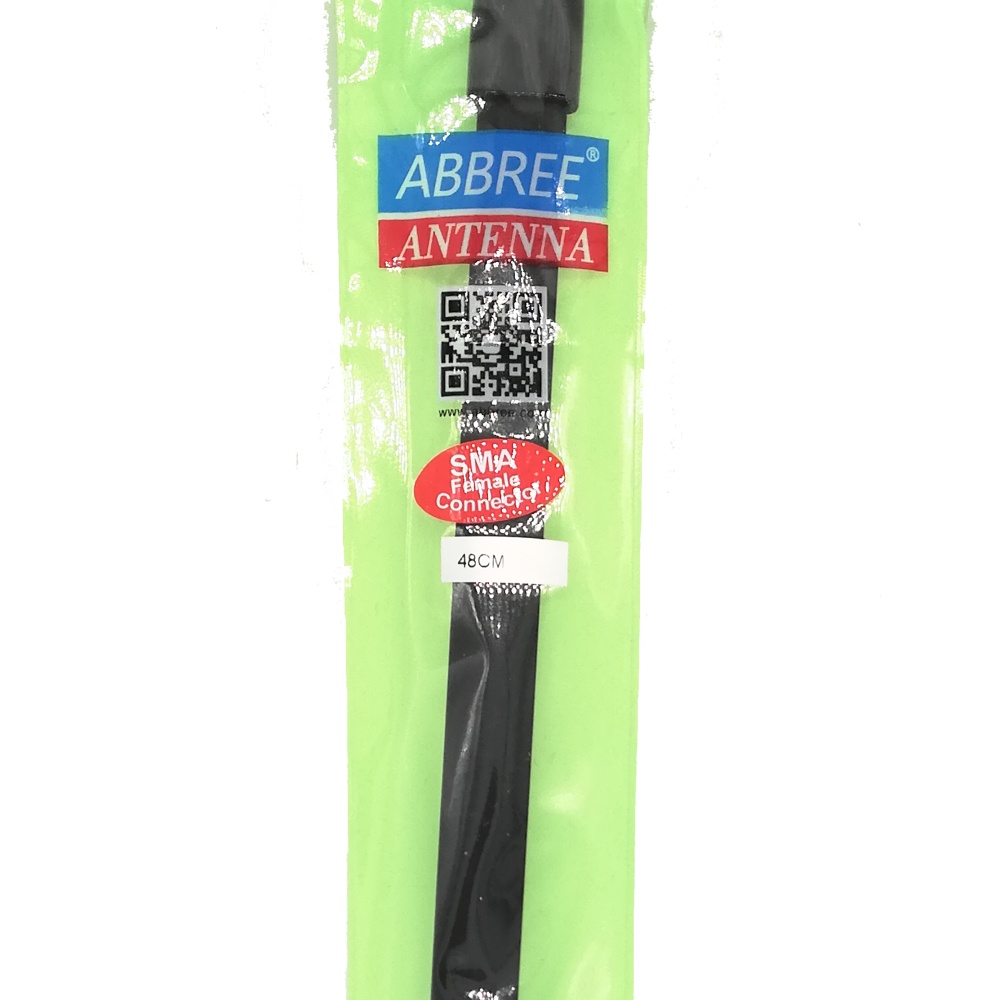

Delivered with: 1 genuine Abbree AR-152A antenna, SMA male or female and size to choose below: 33cm, 48cm, 88cm* or 108cm.

More details

17,00 € tax incl.

In stock

  • SMA Male
  • SMA Female
  • 48cm
  • 88cm
  • 108cm
  • 33cm

Data sheet

ABBREE Tactical Antenna Specifications

Frequencies: 144Mhz / 430Mhz (centered on 145Mhz and 435Mhz)
Length: 33cm, 48cm, 88cm or 108cm
Gain: 2dBi (33cm), 2.15dBi (48cm), 3.4dBi (88cm), 5dBi (108cm)
Power: 8W
Antenna connector: SMA female or SMA male
Only on 88cm version: Additional gooseneck element.
Impedance: 50ohm
Weight: 75g (33cm), 90g (48cm), 120g (88cm), 140g (108cm)
2 years warranty

Antenna compatible with walkie-talkie models:

BAOFENG: BF-888S, UV-5R, UV-5RA, UV-5RC, UV-5RE, UV-5R8W, UV-5RE8W, UV-5RTP, UV-8HX, UV-82, UV-82HP, UV-82HX, UV-82, A-52 Plus, DM-5R (> V2)
Quansheng: TG-UV2 Plus, UV-R50
ANYTONE: AT-D868UV, AT-D878UV
ICOM with SMA male
KENWOOD with SMA male

This antenna is not compatible with Baofeng UV-9R, UV-82WP, UV-XR Plus, GT-3WP, UV-5RWP and water resistant models.

Antenna in SMA male version compatible with walkie-talkie models:

TYT: MD-380 MD-390 MD-2017
Wouxun KG-UV8D and Plus, KG-UV9D and Plus
Yaesu VX-6R VX-7R
Radioddity: GD-77
Retevis RT3S

Feedback and choice of size

In VHF, the different versions all give good results, with better performance for the larger models: 48cm, 88cm and 108cm, both in reception and transmission.

In UHF and for use on the PMR 446 Mhz band, the recommended version is the 48cm or 88cm version.

For mixed use, and good VHF / UHF performance, we recommend the 48cm version.

Accessories

Avis

Cliquez ici pour donner votre avis

Questions



Dave on 2020-06-16
Question:

Can you tell me the correct antenna for BaoFeng UV-82HP ?

Answer:

For Baofeng you need the SMA female version of the tactical antenna. About the size to choose, it mainly depend of the condition of use.


If length is not a problem we recommend taking the larger antenna for best performance, but it will not be the most convenient to use.
