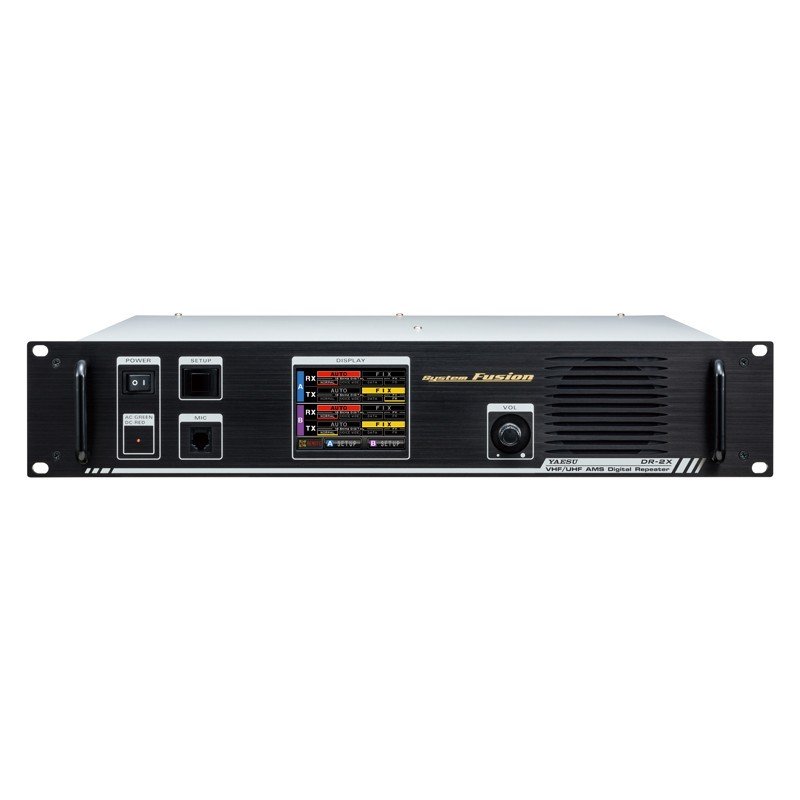

YAESU DR-2XE FM & C4FM repeater VHF-UHF 50W

The YAESU DR-2XE is a dual band repeater for amateur radio bands VHF 144 MHz and UHF 430 MHz, and dual-mode analog FM and digital C4FM Fusion with 50W, a color touch screen.

With AMS function to automatically recognizes signal C4FM digital or conventional FM, the DR-1 repeater retransmits the signal using the preset mode FM or C4FM.

Package includes: Rack 19" YAESU DR-2XE (firmware V1.10J), 220V AC power cable, DC power cable for battery backup, programming cable YAESU SCU-20 manual. Requires external power supply 13.8VDC (not supplied), 3 years warranty.

Promotional price until June 30, 2018 limited to Yaesu available stock. if you already have a Yaesu DR-1X relay, you can benefit from an extra refund of € 300 by sending it back to Yaesu UK (see conditions on the Yaesu return form).

More details

Download

Yaesu form DR-2XE

Until June 30, 2018, Yaesu UK refunds € 300 for the return of a DR-1XE (see condition) 136k

Manual Yaesu DR-2X / 2XE

Manual in english for Yaesu DR-2X / DR-2XE 13.5M

Software & drivers IMRS & LAN

IMRS (Internet-linked Multi-site Repeater System) 2.51M

Notice IMRS & LAN

4.92M

Firmware V1.15

19.77M

Data sheet

Features Yaesu DR-2XE

- Analog and Digital Mobile: FM and C4FM
- Modulation: F1D, F2D, F3E in analog mode and F7W, 4FSK (C4FM) digital mode
- RX and TX frequency: VHF 144-146 and UHF 430 to 440 Mhz
- Step frequency: 5 / 6.25 kHz
- Narrow Bandwidth 12.5 kHz and wide 25 kHz
- Frequency stability: ± 2.5ppm TCXO
- Power: 50W
- Connectors antenna: 2 N female for RX, 2 N female for RX
- CTCSS and DCS for analog mode
- Size: Rack 19' 1U
- Weight 8.4 kg
- CE and FCC Standards
- 3 years warranty Yaesu

AMS function

Featuring an AMS function of automatic recognition of C4FM or analog FM signals, then the relay DR2X retransmits the signal using the predefined communication mode for FM or C4FM.

Duplexer VHF-UHF

The relay DR-2XE does not have an integrated duplexer, optional accessories in the Diamond.

WIRES-X adapter and internet link

The relay DR2X can be connected to the WIRES-X and Internet network adapter YAESU HRI-200 (optional).
