Reduced price!

-83,33 €

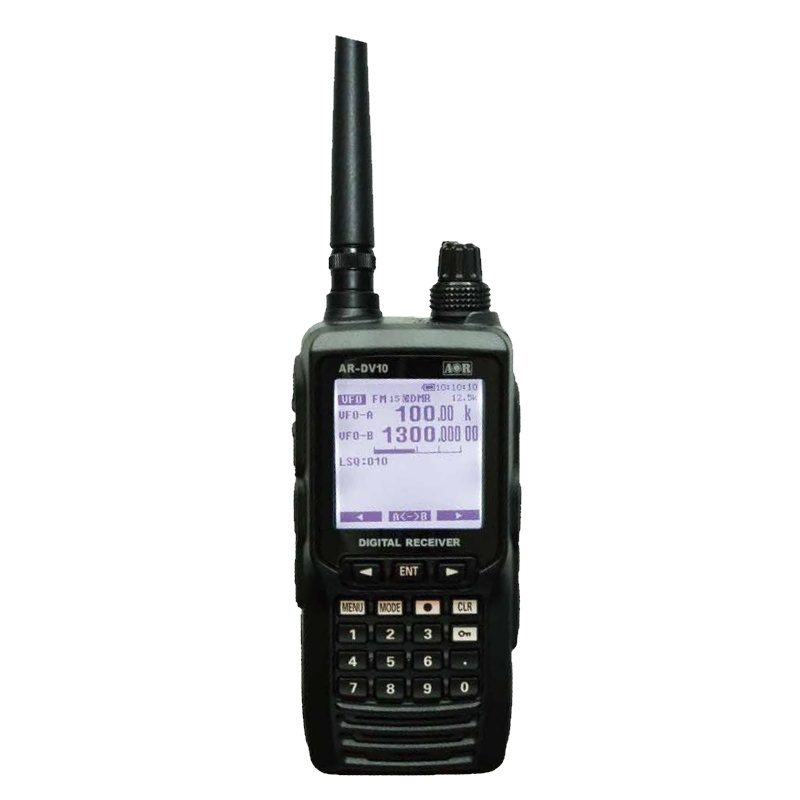

AOR AR-DV10 TETRA DMR NXDN dPMR APCO25 D-STAR C4FM digital scanner View larger
AOR

AOR-ARDV10-1881

New product

Japan

AOR AR-DV10 TETRA Digital Scanner DMR D-STAR C4FM dPMR NXDN APCO25

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

The AR-DV10 digital AOR scanner is designed to meet the needs of SWL headsets and security professionals. With its wide frequency range from 100 kHz to 1300 MHz, this device is capable of receiving a wide variety of digital radio signals and modes such as: TETRA*, DMR(Tier1/2/Motrbo), NXDN (6.25k), dPMR (446 Tier1), APCO25(Phase1), D-STAR, Yaesu C4FM.

It is also capable of receiving signals in all analogue modes: WFM, NFM, AM, USB, LSB, CW.

The AR-DV10's compact size and ergonomic design make it easy to carry and use on the move. It also has a built-in rechargeable battery and a battery back-up box.

* TETRA direct mode is included by default, for TETRA trunked mode with GSSI, an activation key is available as a paid option (about €65) from https://www.aordirect.jp/shopdetail/000000000244/

Delivered with: 1 AOR AR DV10 scanner, 1 AC adapter, 1 lithium-ion battery pack, 1 quick charge cradle, 1 belt clip, 1 antenna, 1 DC/DC converter for cigarette lighter, 1 alkaline battery box, 1 microSD card, 1 user manual.

More details

832,50 € tax excl.

915,83 €

In stock

   4 Items

Download

Manual AR-DV10 (FR)

French manual for the AOR AR-DV10. 1.86M

Data sheet

  • Frequency range: 100kHz to 1300MHz
  • Operating modes: VFO, memory channel, program search, scan
  • Digital reception modes: TETRA(Direct mode, mobile to mobile, DMR(Tier1/2/Motrbo, NXDN (6.25k), dPMR (446 Tier1, APCO25(Phase1, D-STAR, Yaesu(C4FM), Alinco(EJ47U, Japanese D-CR).
  • Analogue reception modes: WFM, NFM, AM, USB, LSB, CW
  • Number of VFOs: 3 (A / B / Z)
  • Memory channels: 2000, memory banks: 40, search banks: 40
  • Priority channel: 1
  • Switching frequencies: 50 per bank or VFO
  • Audio outputs: Internal speaker 700mW, headphone jack 200mW
  • Antenna: 50Ω female BNC
  • AGC, step-adjust, offset and priority reception
  • Analogue voice descrambler
  • Signal attenuator: Approx. 10dB ON/OFF
  • Squelch modes: Noise squelch, level squelch, reverse tone, digital voice detection
  • Max antenna input: 0dBm
  • 7.4V 2000mAh lithium-ion battery (BP-10)
  • External input power supply: 6.5V to 10.5V
  • Current consumption: 240mA (typical), 500mA(max)
  • Case size: 65(W)×137(H)× 41(D)mm (including battery, excluding projections)
  • Weight: Approximately 420 grams (including battery pack, antenna and belt clip
  • Temperature range: -10℃~+50℃

Circuit type:

100kHz~1300MHz Super single heterodyne
IF 47.25MHz SDR direct sampling
WFM (64MHz~108MHz) Direct SDR conversion
AM (520kHz~1710kHz) Direct SDR conversion
Frequency stability: ±5 ppm (-10℃~+50℃)

IF filter bandwidth:

Analog modes: 100kHz, 30kHz, 15kHz, 8kHz, 6kHz, 5.5kHz, 3.8kHz, 2.6kHz, 1.8kHz, 500Hz, 200Hz (selection depends on mode)
Digital modes: 6kHz, 15kHz, 30kHz (automatic selection)

Sensitivity (typical values):

SSB (10dB S/N) 0.3μV
AM (10dB S/N) 1.6μV
FM (12dB SINAD) 0.3μV
WFM (12dB SINAD) 2.6μV

AOR AR DV10 software

The latest software versions can be downloaded from the official AOR website: http://www.aorja.com/receivers/ar-dv10.html

The purchase, sale and possession of this equipment is permitted in Europe, the use is regulated according to the laws applicable in the country of use.
