430-440 MHz CROSS 15 +15 elements 16.7dBi Antenna 70cmCROSS30W (AA)

rating No review at the moment

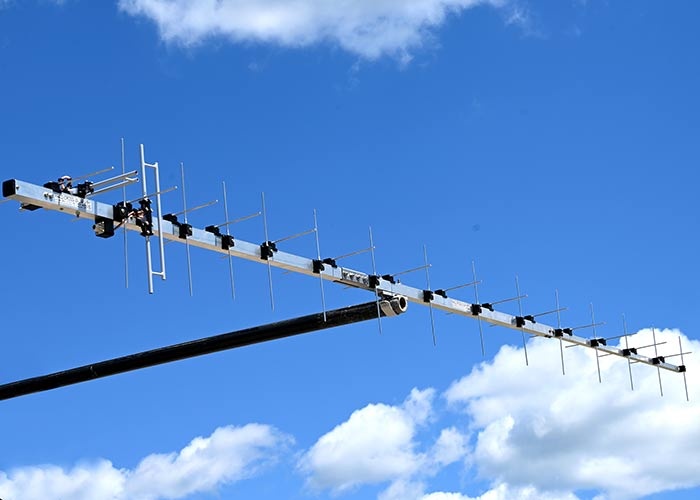

30 Elements (15+15) 70cm CROSS Antenna 70cmCROSS30W, full frequency range 430 – 440 MHz 70cm with 15+15 Elements for EME and LEO Satellites. Used as part of “Big Leo Pack” with added RHCP Kit.

LEO satellites – Low Earth orbit satellites in HamRadio.

LEO satellites have a circular (or elliptical) orbit at the height of 250–2000 km from the Earth’s surface. The maximum time during which a satellite is above the local horizon for an observer on the Earth is up to 20 min.

This time is used to transfer data, images, and photographs to selected ground stations positioned in strategic locations.

A number of Low Earth Orbit (LEO) OSCAR satellites use frequency modulation (FM). These are also commonly referred to as “FM LEOs” or the “FM Birds”. Such satellites act as FM amateur radio repeaters that can be communicated by using commonly available amateur radio equipment.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

287,00 € tax excl.

Available on backorder only, within 10 to 15 days

Data sheet

70cm CROSS Antenna 70cmCROSS30W for LEO Satellites as part of “Big Leo Pack“

70cm CROSS Antenna 70cm30CROSS

This 30-element 70cm CROSS Antenna 70cmCROSS30W covers complete 70cm band from 430 to 440MHz with low SWR.

It could be used for any radio modes like CW, SSB, FM, Q65, and all kinds of communications like EME, DX-ing, Contesting, Repeater work, and LEO satellite.

This 70cm CROSS Antenna 70cmCROSS30W is used as part of “Big Leo Pack” with added RHCP Kit.

For any use mount the antenna on a horizontal or vertical fiberglass pipe diameter of 40mm with a wall of at least 8mm or a full fiberglass 40mm rod.

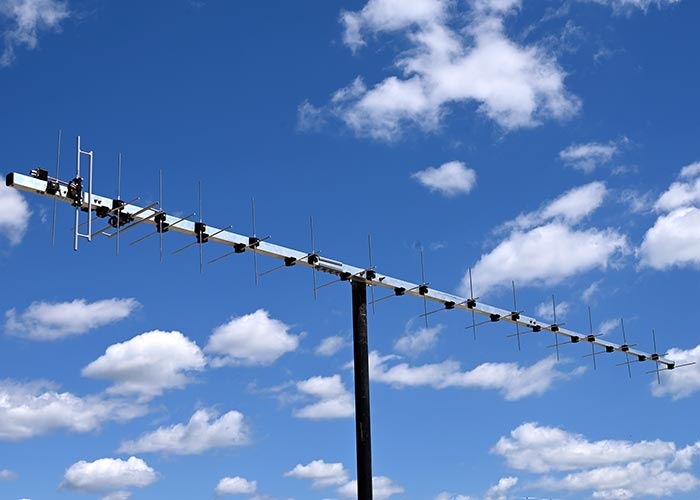

70cm CROSS Antenna 70cm30CROSS Horizontal Mount

Electrical Specifications:

  • Frequency Range: 430 – 440 MHz
  • Free Space Forward Gain: 16.7 dBi
  • Front-to-Back Ratio: 27 dB
  • -3 dB Horizontal Beamwidth: 27.8°
  • -3 dB Vertical Beamwidth: 29.3°
  • Polarization: Horizontal and Vertical. RHCP and LHCP with phase shift
    Distance Between Dipoles: 173mm
  • Degrees: 90°
  • Isolation Between Antennas: More than 28dB
  • Nominal Input Impedance: 50 Ohms
  • SWR Across Entire Band: < 1.2
  • Maximum Power Input: 2 x 850W
  • Matching Method: Direct feed through common mode choke (current balun)
  • Connectors: 2 x “N”

Azimuth Radiation Pattern

70cm CROSS Antenna 70cm30CROSS Azimuth Radiation Pattern

Mechanical Specifications:

  • Number of Elements: 30 (15 + 15)
  • Element Diameter: 4 mm Aluminum rod
  • Dipole Diameter: 8 mm Hard Copper tube plastic coated
  • Longest Element: 340 mm
  • Element Mounting Position: CROSS antenna – 2 Sides
  • Balun and Connector: Included
  • Boom Length: 3.5 m
  • Boom Size: Tapered Boom 30×30, 20×20 mm
  • Turning Radius: 2 m
  • Number of Boom Pieces: 3
  • Guy rope support: No, strong boom
  • Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
  • Clamp: Goliath
  • Survival Wind Speed: 150 km/h
  • Wind Load: 0.13 m2
  • Net Weight: 4.3kg
  • Gross Weight: 6 kg
  • Transportation Length: 119 cm

Added rear piece of aluminum boom for easy cable tight.

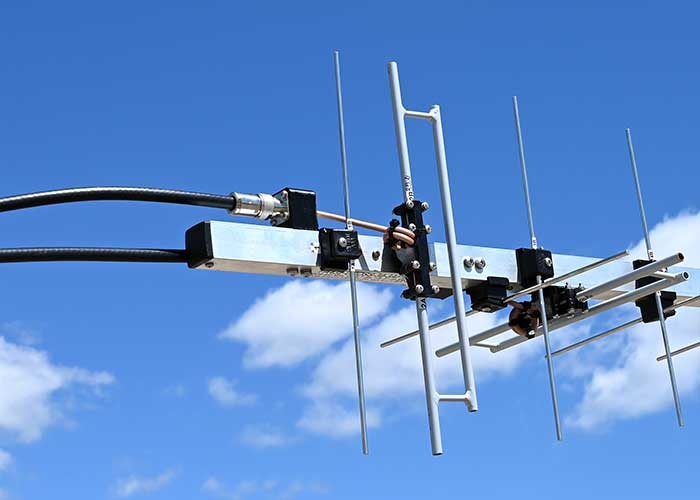

70cm CROSS Antenna 70cm30CROSS Two Dipoles View

Big Leo Pack Antennas for LEO Satellites 2m14CROSS and 70cmCROSS30W. “Big Leo Pack” with added RHCP Kit.

Big Leo Pack Antennas for LEO Satellites 2m14CROSS 70cm30CROSS

The old name of the antenna was PA432-CROSS-30-3.5AP

Watch the Leo Pack VIDEO
