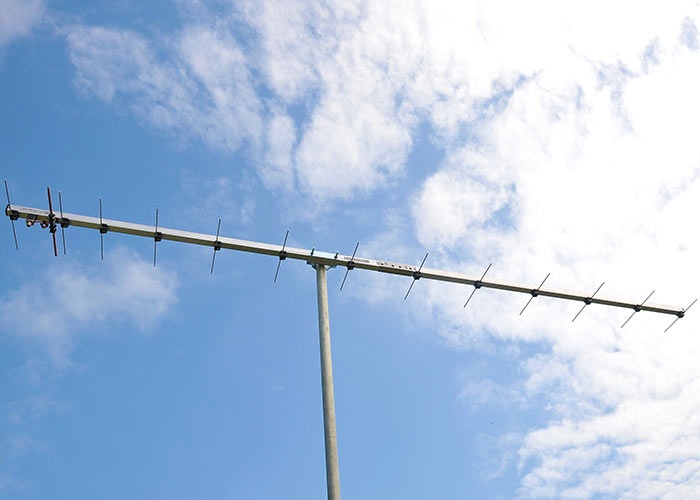

432 MHz 14 element DX Yagi 16.4dBi Antenna 70cm14WA (AA)

rating No review at the moment

Good for portable or stationary use. Excellent for DXing. Possible EME with just 50W and a single antenna.

A strong 30 x 30mm boom will ensure stable mechanical characteristics on any wind.

14 element, 16.4dBi gain.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

154,00 € tax excl.

In stock

   1 Item

Data sheet

70cm14WA  Electrical Specifications:

  • Frequency Range: 432 – 434MHz
  • Free Space Forward Gain: 16.4dBi
  • Front-to-Back Ratio: 27dB
  • 3 dB Horizontal Beamwidth: 30.5°
  • 3 dB Vertical Beamwidth: 32.4°
  • Polarization: Horizontal
  • Nominal Input Impedance: 50 Ohms
  • SWR Across Entire Band: <1.2
  • Maximum Power Input: 850W
  • Matching Method: Direct feed through RG142 common mode choke (current balun)
  • Connector: “N”

70cm14WA Mechanical Specifications:

  • Number of Elements: 14
  • Element Diameter: 4 mm Aluminum rod
  • Dipole Diameter: 8 mm Hard Copper tube plastic coated
  • Longest Element: 340 mm
  • Element Mounting Position: Below the Boom
  • Balun and Connector: Included
  • Boom Length: 2.92m
  • Boom Size: 30x30mm
  • Number of Boom Pieces: 2
  • Guy rope support: Not necessary. Strong boom
  • Mounting Mast Diameter: 43-70mm 1-11/16″ – 2-3/4″ OD
  • Clamp: M8 Stainless Steel
  • Survival Wind Speed: 180km/h
  • Wind Load: 0.08m2
  • Net Weight: 2.5kg
  • Gross Weight: 4.5kg
  • Transportation Length: 1.5m
Horizontal Stacking Distance:
  • Two antennas 1280 mm for F/S< -12.3 dB, Gain: 19.05 dBi
  • Four antennas 1300 mm for F/S< -12.8 dB, Gain: 22 dBi
  • Eight antennas 1320 mm for F/S< -13.1 dB, Gain: 25 dBi
Vertical Stacking Distance:
  • Two antennas 1220 mm for F/S< -12.5 dB, Gain: 19.04 dBi
  • Four antennas 1230 mm for F/S< -12.6 dB, Gain: 22 dBi
  • Eight antennas 1240 mm for F/S< -13.2 dB, Gain: 25 dBi
The old name of the antenna was PA432-14-3A.
