Kit DVMEGA Cast Multimode IP Radio + WIFI + Micro

The DVMEGA Cast is a multimode IP radio based on the AMBE3000 vocoder for digital DMR, D-Star and C4FM modes, all in one box, with micro Yaesu included.

The DVMEGA Cast is compatible with all digital amateur radio networks like BrandMeister, DMR+, IPSC2, C4FM, YSF, FSC, D-STAR, REF, XRF, XLX, DSC, etc.

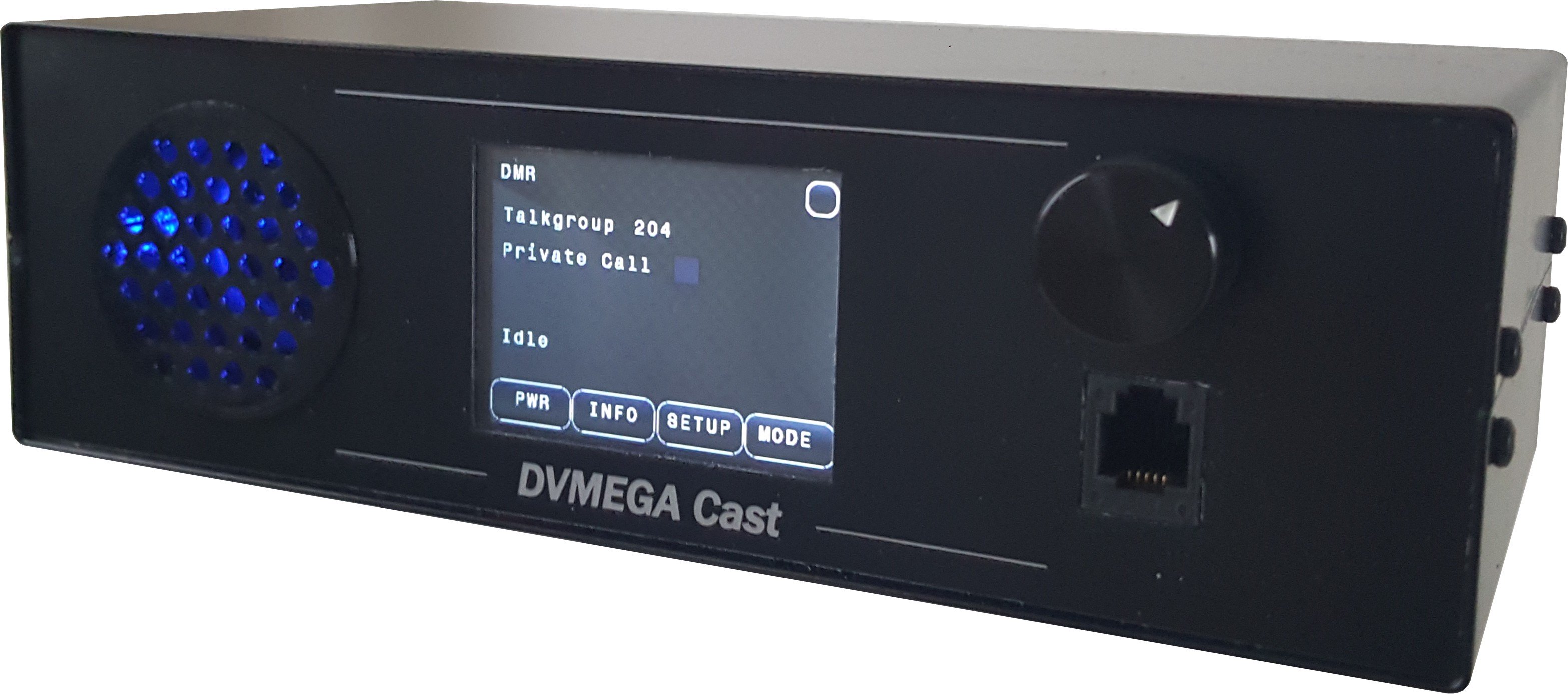

The radio has a built-in 3-watt speaker, a front-facing rotary knob, and a 2.4" touch screen for use with IP radio.

The operating system is pre-installed with the PI-Star software.

Delivered with: 1 DVMEGA CAST set, 1 SD card, 1 WIFI dongle, 1 micro YAESU MH-48A6JA included. Optional power supply (12V).

More details

Download

Manual DVmega Cast (EN)

Instruction manual for DVmega Cast IP radio. 404.35k

Datasheet DVmega Cast

DVmega Cast presentation and datasheet. 1.01M

Data sheet

DVMega Cast Features

- Processor: Nano Pi
- Multimode Digital : D-Star, DMR and C4FM (Yaesu Fusion)
- Ready to use with Pi-Star software pre-installed
- Power supply: 12 VDC (not included)
- Consumption: 0.8 A
- DuplexAMBE+2™ DVSI Vocoder
- Compatible microphone: Yaesu MH-48 (included)
- 3 watt speaker
- Configuration via a web interface
- Firmware upgrade via a web interface
- Ethernet connection via cable and WIFI
- Galvanized steel metal case
- Size 200 X 105 X 64 mm
- Weight 0.8 kg
- 2 years warranty and CE standards
