BlueDV hotspot pack for DMR D-Star C4FM via Bluetooth and Android

The BlueDV hotspot includes all the elements to simply create a digital multi-mode hotspot (access point) in UHF (430-440Mhz) for D-Star, DMR or C4FM modes and can be controlled directly from an Android smartphone / tablet or from Windows 10 (beta), with the BlueDV software and application.

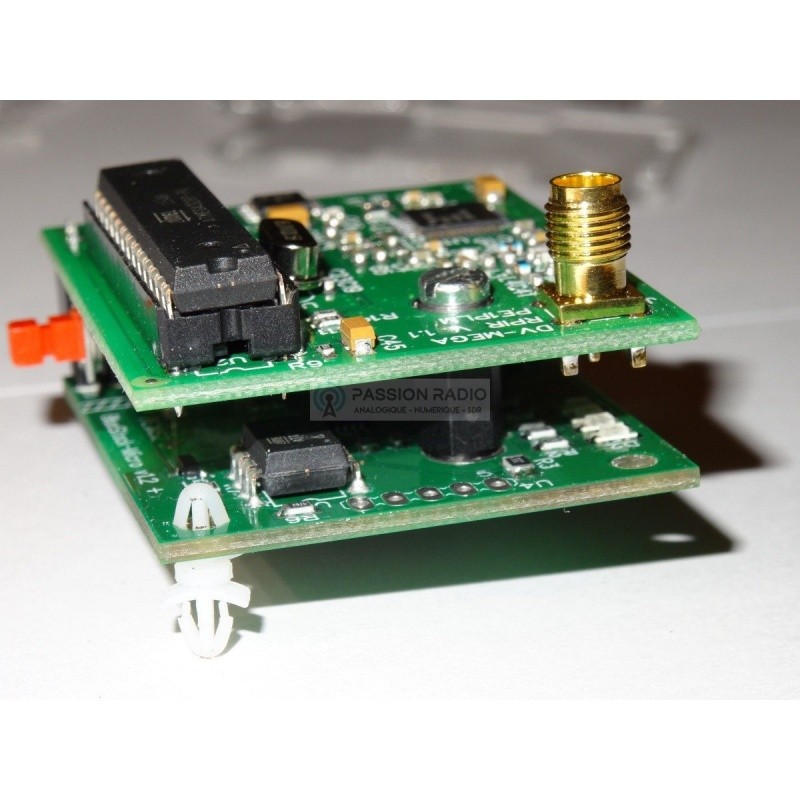

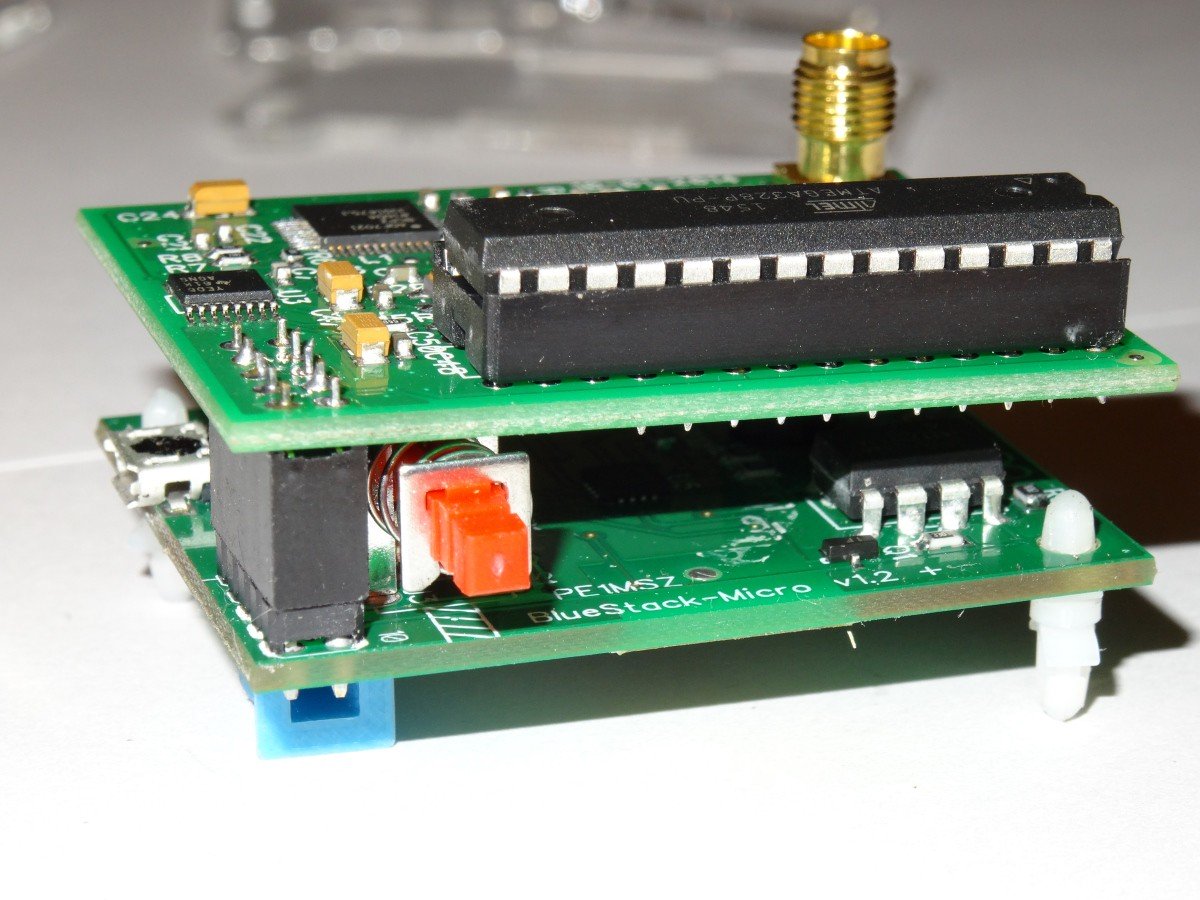

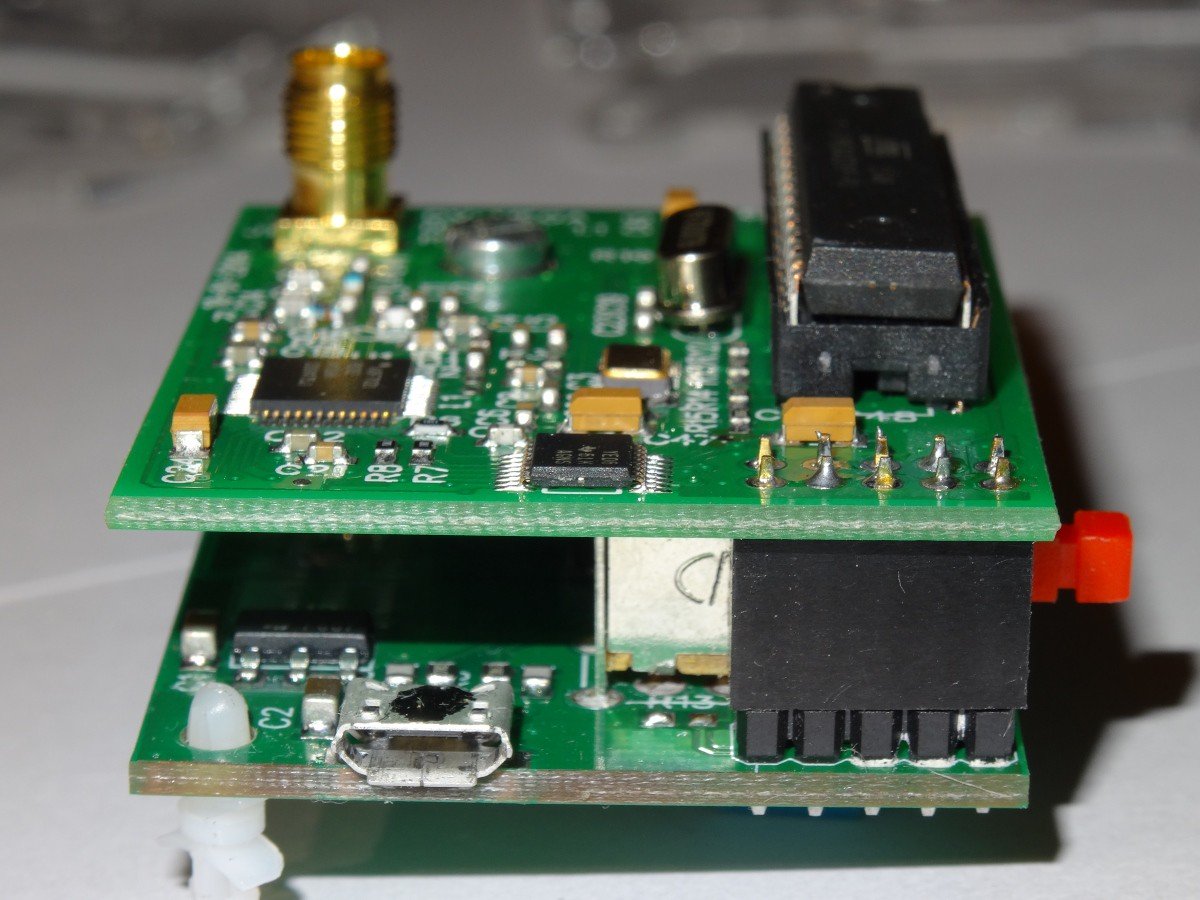

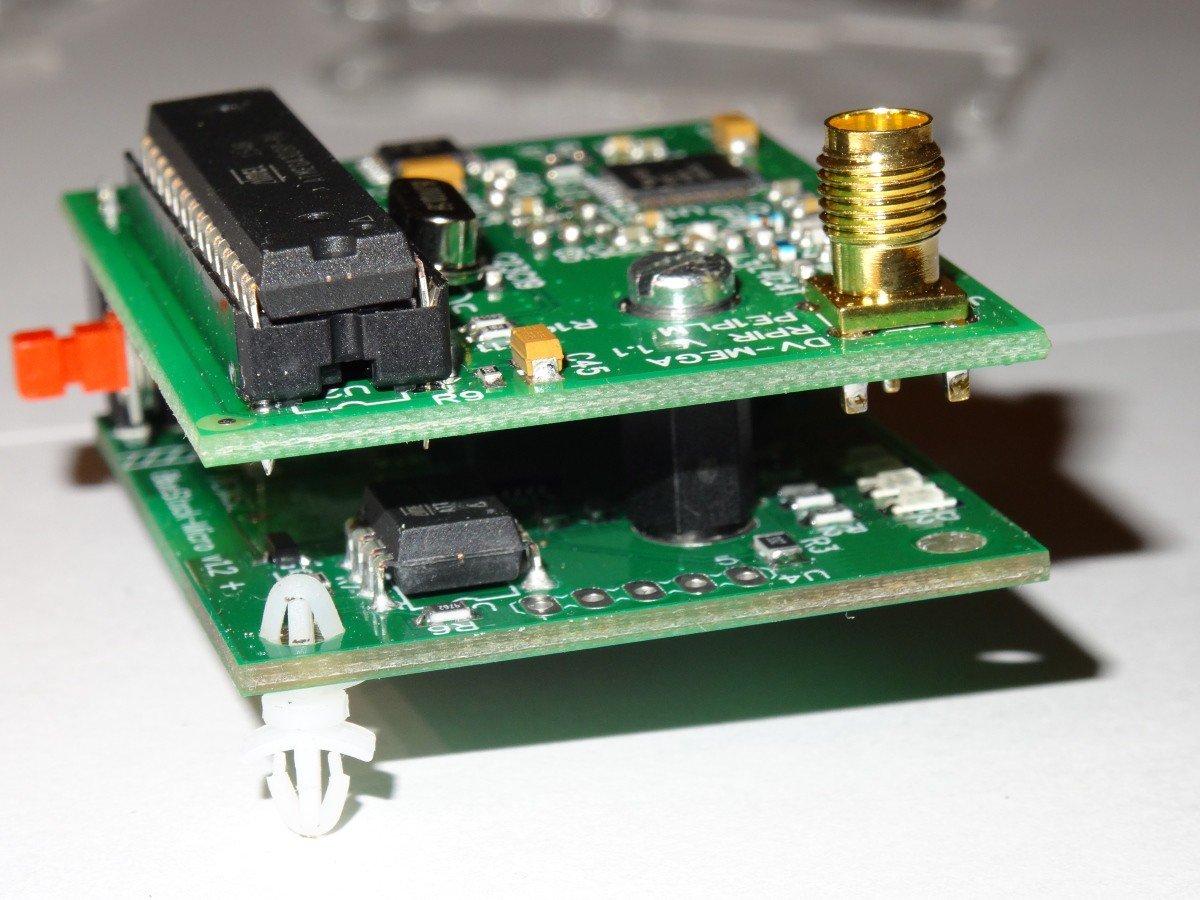

A hotspot provides access to digital radio networks, anywhere, thanks to a DMR, D-Star or C4FM walkie-talkie, and an internet connection (wifi or 3G / 4G) via the Bluetooth card which is clipped onto the DV Mega card.

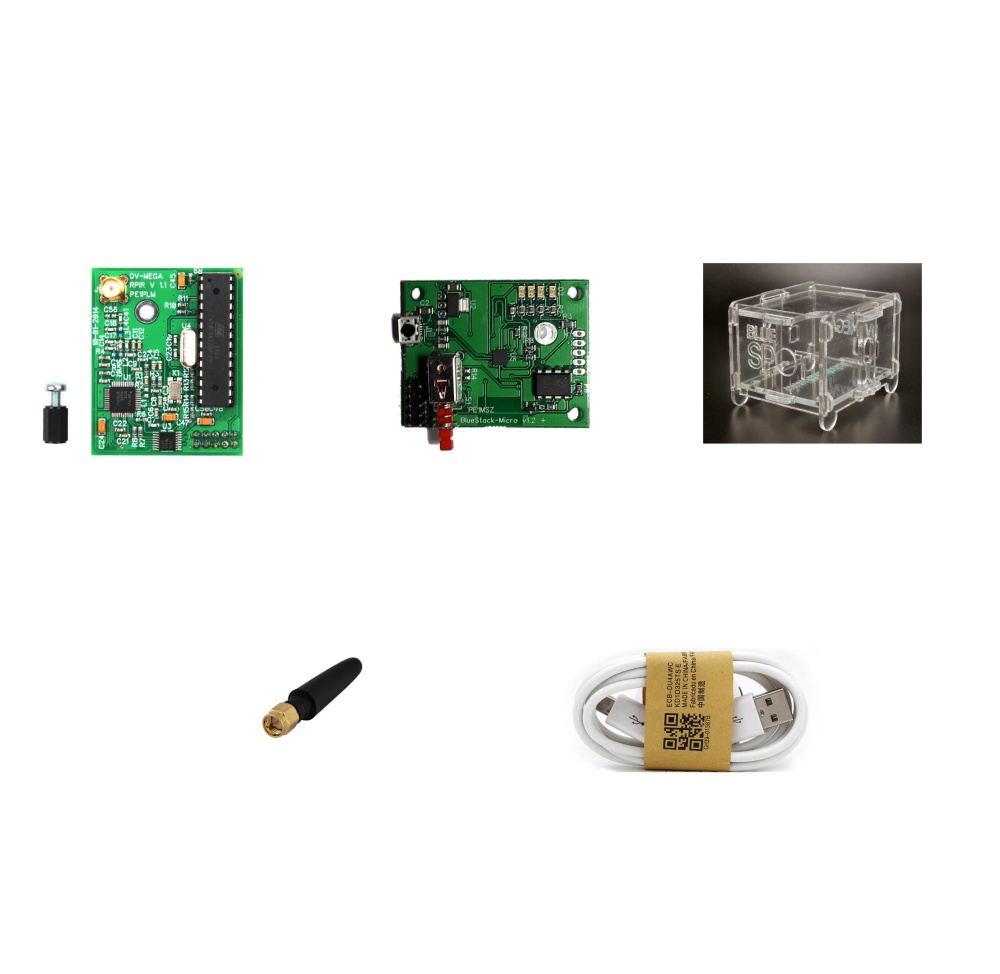

Comes complete with: 1 DV-Mega single-band UHF (firmware v3.26 installed), 1 Bluestack Micro+ hat for Android, 1 plexiglass case, 1 mini UHF 433 Mhz antenna and a micro-USB power cable.

More details

Pack content

1,95 € In stock
Reference: CABLE-MICRO-USB-BLANC-0451
1 x Micro-USB power cable black or white
This USB cable to micro-USB can be used as power cable for Raspberry Pi, cell phone Samsung S3, S4, S5 or any device with micro USB power port.
1,95 €
99,00 € In stock
Reference: DVMEGA-SINGLEBAND-331
1 x DV MEGA board singleband UHF D-Star DMR C4FM
DVMEGA RPI UHF is a radio module, digital transceiver, in GMSK mode, singleband for 430 to 450Mhz and designed to work with a Raspberry Pi card (not included), for digital mobile radio D-Star, DMR and
99,00 €
43,00 € In stock
Reference: BLUESTACK-MICRO2-PLUS-402
1 x BlueStack micro+ for Android device & DV-Mega
This Bluestack Micro+ (Plus) allows you to manage a DVMEGA hotspot (not included) in bluetooth from a smartphone. The card simply comes to the DVmega card and it is no longer necessary to have a
43,00 €
9,90 € Out of stock
Reference: BLUESTACK-BOITIER2-TRANS-405
1 x Transparent case for BlueDV Hotspot DMR D-Star
Transparent plexiglass case for DMR D-Star C4FM digital hotspot BlueDV and suitable for the Bluestack Micro+ (Plus) card with DVmega card (cards not included).This box allows to see completely the
9,90 €
4,00 € In stock
Reference: MINI-ANT-433MHZ-470
1 x Mini-Antenna 433Mhz SMA-M DVMega BlueDV
Mini antenna 4cm long for 433MHz with a gain of 0dBi, SMA male connector, suitable for DV Mega UHF, pack BlueDV UHF and DV4mini UHF.Frequency: 435MHz +/- 5MHzConnector: SMA maleGain: 0dBiVSWR:
4,00 €

Download

Firmware Xloader DV

Windows software for DVmega firmware update 678.31k

BlueDV pack manual (FR)

In french. 1.55M

Guide BlueDV 1.0

Manual of BlueDV (DVmega+Bluestack Micro+) for use with DMR Brandmeister 1.54M

Firmware DVMega 3.18

25.8k

Data sheet

Tutorial BlueDV : DVMega+Bluestack Micro+

There is also a Windows software to configure BlueStack Micro+ for Android an DV Mega from a PC, and can be download here : http://www.pa7lim.nl/bluedv-windows/

The DVMEGA radio module comes ready to use with the v3.26 firmware for D-Star, DMR and C4FM (System Yaesu Fusion).

The wire to allow the firmware update mode is not soldered to the board.

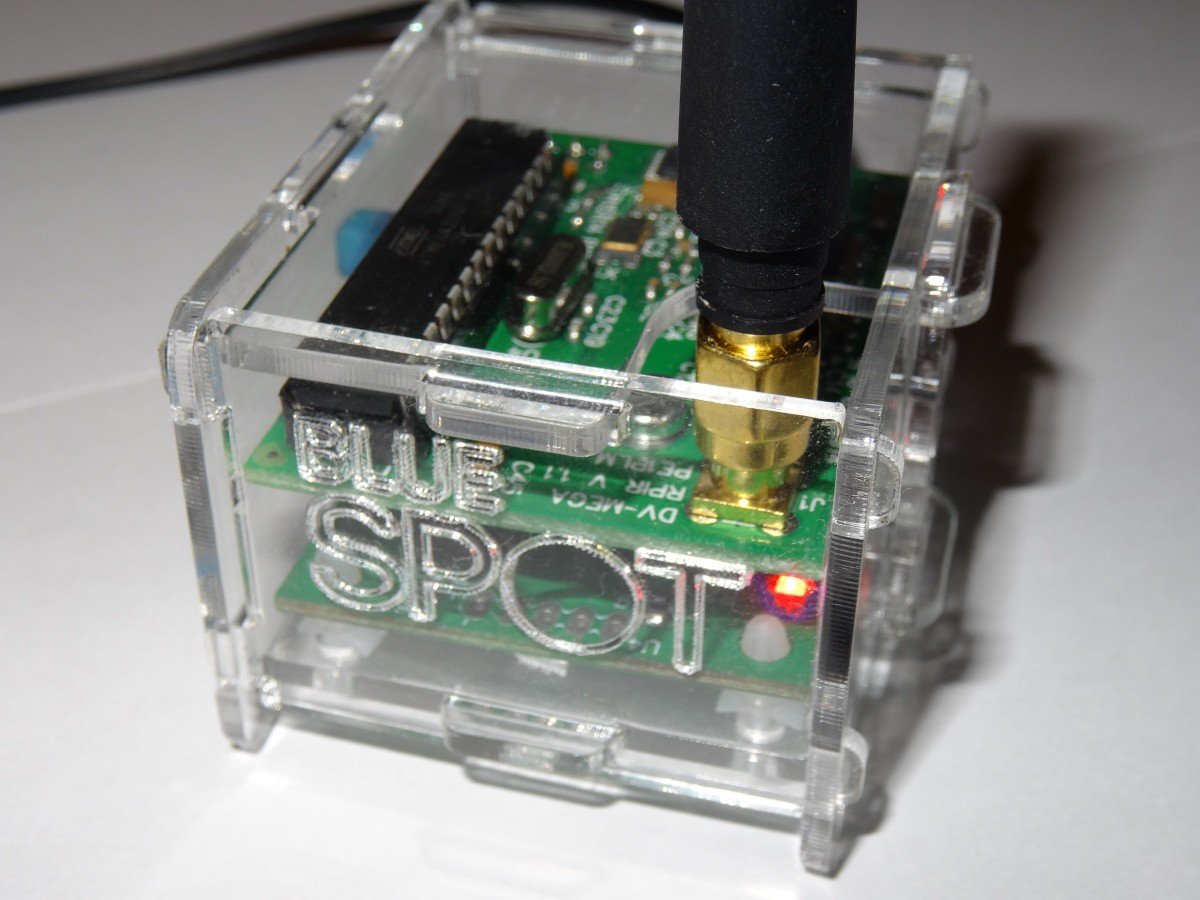

The plexiglass case does not require any tools, the plastic protective film must be removed before installation, otherwise the fixing clips can be broken!

Features BlueDV hotspot

- Mono-band UHF, 430-450Mhz
- 10mW output power
- Digital Radio Mode D-Star, DMR (Brandmeister, DMR Plus, IPSC2, HBlink) and C4FM (System Yaesu Fusion)
- Antenna connector SMA female

Bluetooth connection: Select the BlueStack device and use the PIN code: 1234
