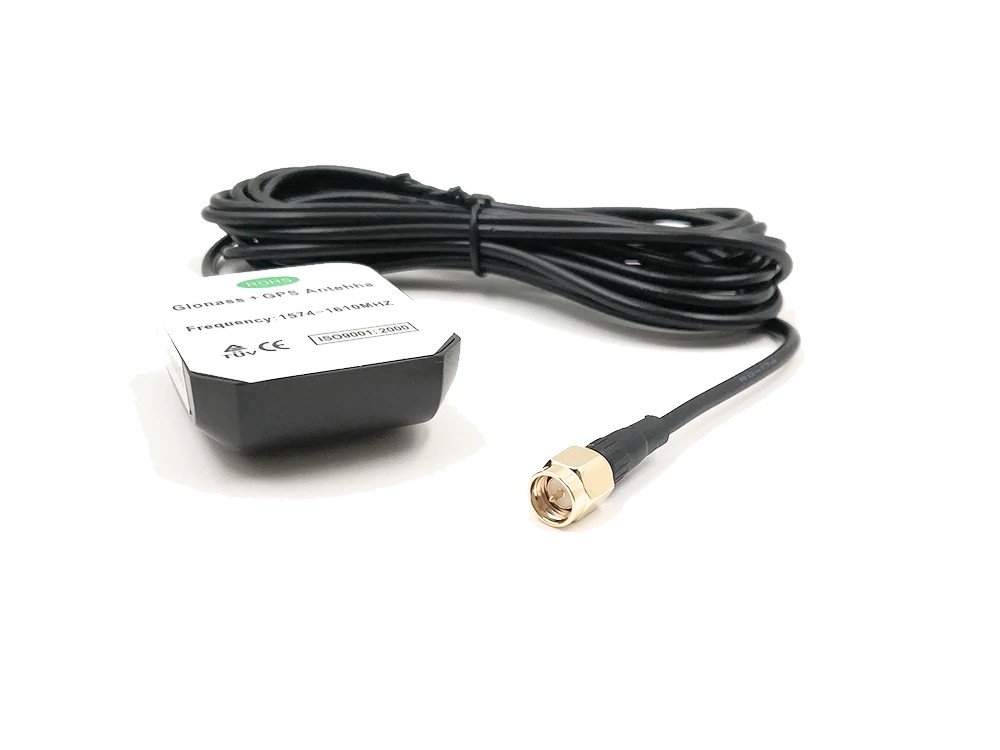

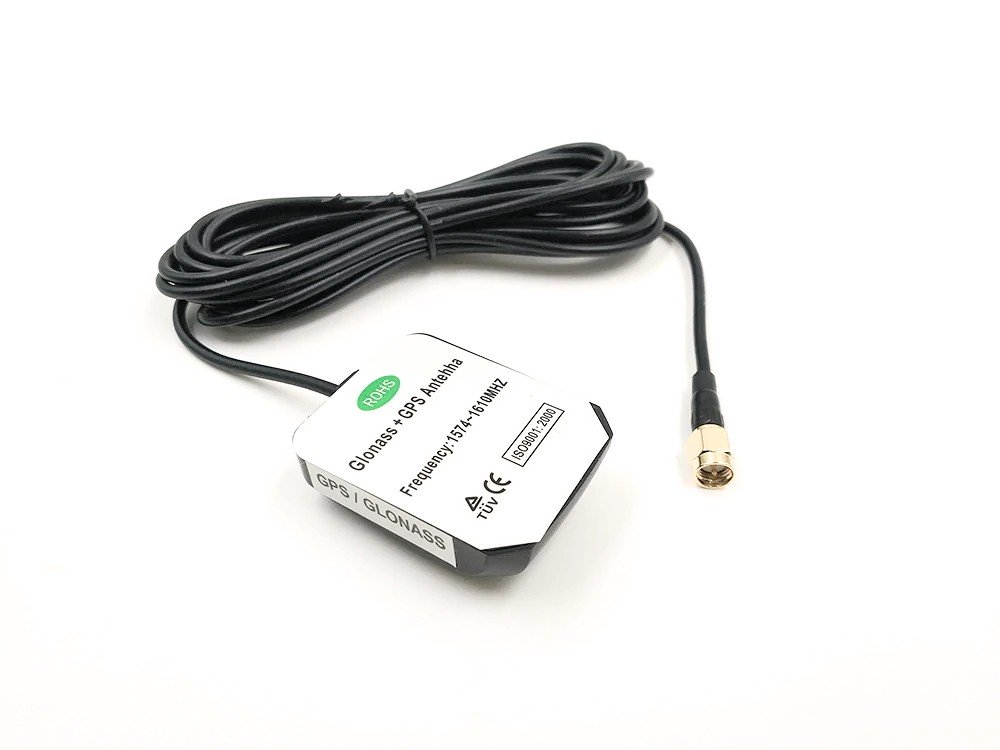

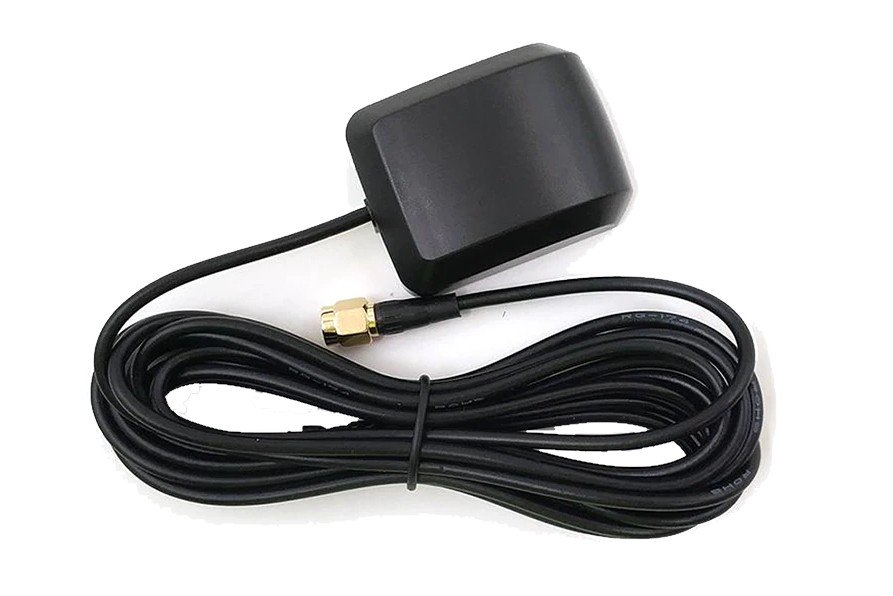

GPS active antenna with LNA + SMA cable

rating No review at the moment

GPS active antenna with LNA, magnetic mounting and RG174 coaxial cable with SMA male connector.

This antenna can be used with all equipment equipped with an SMA connector and a 3.3V Bias-T power supply.

Antenna connector: SMA male
Cable length: 3 meters

Delivered with: GLONASS Beitian GPS Active Antenna.

More details

This material is no longer available

Data sheet

Characteristics GPS active antenna

Receiving Frequency

GPS L1:1575.42 MHz
GLONASS L1:1602 MHZ

Gain at Zenith

4.5dBi

VSWR

<1.5

Impendance

50Ω

Band Width

±10MHz

Polarization

RHCP

Axis ratio

<3dB

Horizontal coverage angle

360°

LNA Specification

LNA Gain

33dB

Noise figure

<1.8dB (Only LNA)

Output impedence

50Ω

Passband

±1.0dB (Only LNA)

Supply Voltage

2.8V-5.0V

Supply Current

≤20mA

Size

48*37*16mm

Weight

110g

Mounting

Magnetic Bottom

Connector

SMA Male

Coaxial cable

RG174

Length

3m
