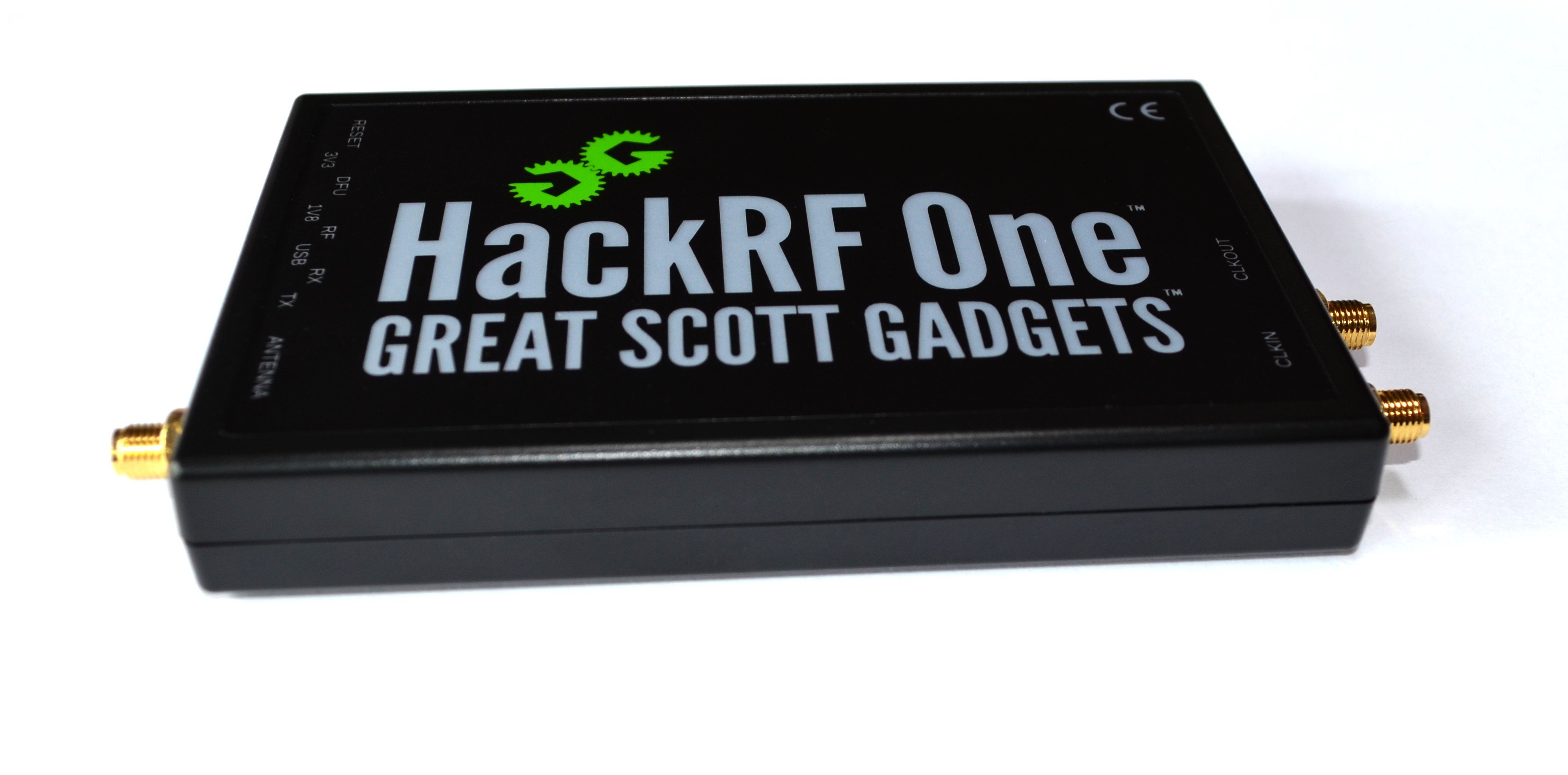

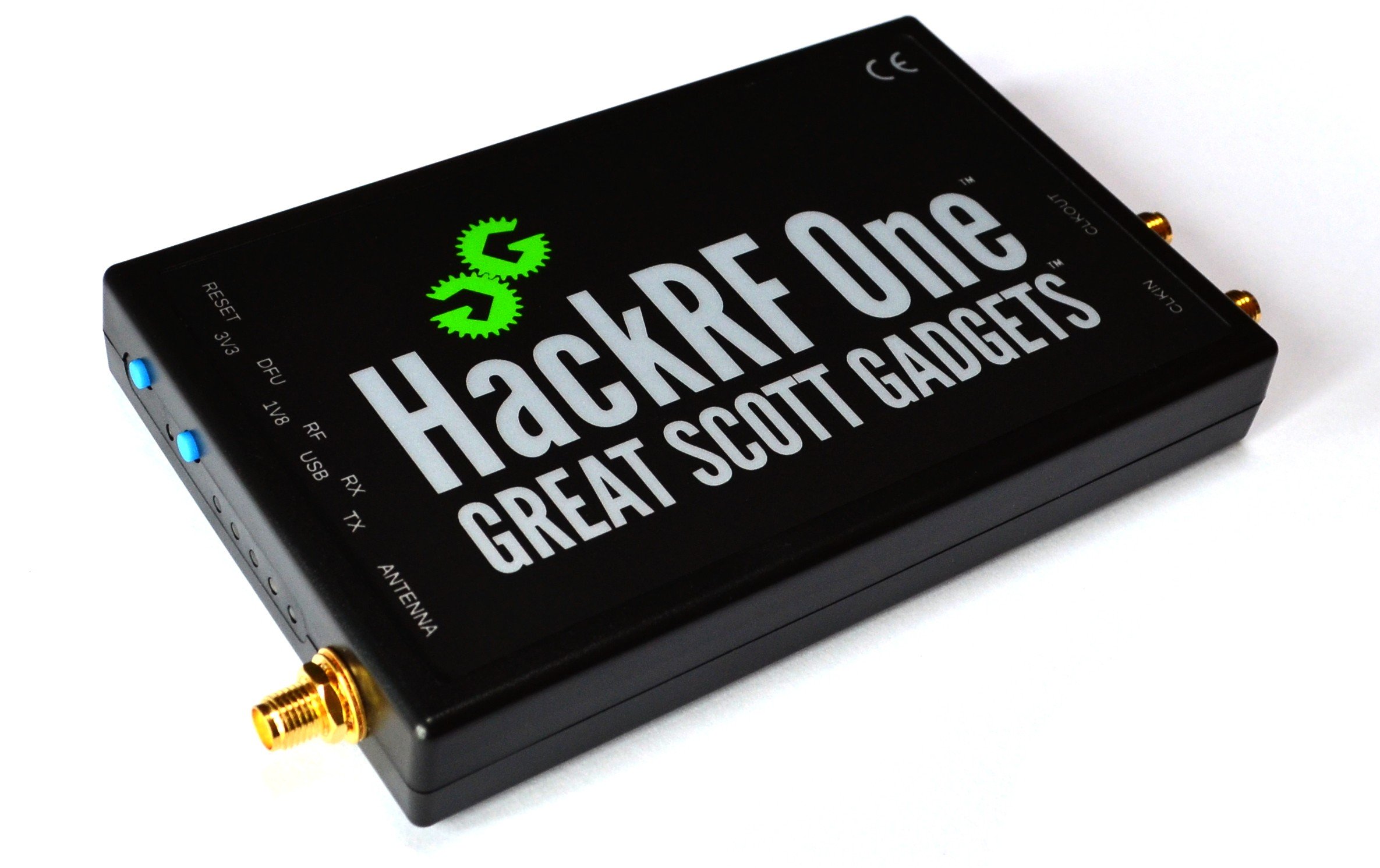

HackRF One SDR Transceiver TX RX 1-6000MHz - RF development board - Genuine Version

rating Read the 5 reviews
Average rating: 5/5 Number of reviews: 5

The HackRF One is a SDR receiver-transmitter covering from 1MHz to 6GHz in all available modes, analog and digital.

Tip: For use in the lab, or with strong signals nearby, the sensitivity of the device is sufficient. To use as receiver only we recommend the addition of an LNA preamplifier and an external antenna adapted to the frequency bands used.

Or you may have a look at the SDRPlay RSPdx receiver from 0.5 to 2GHz.

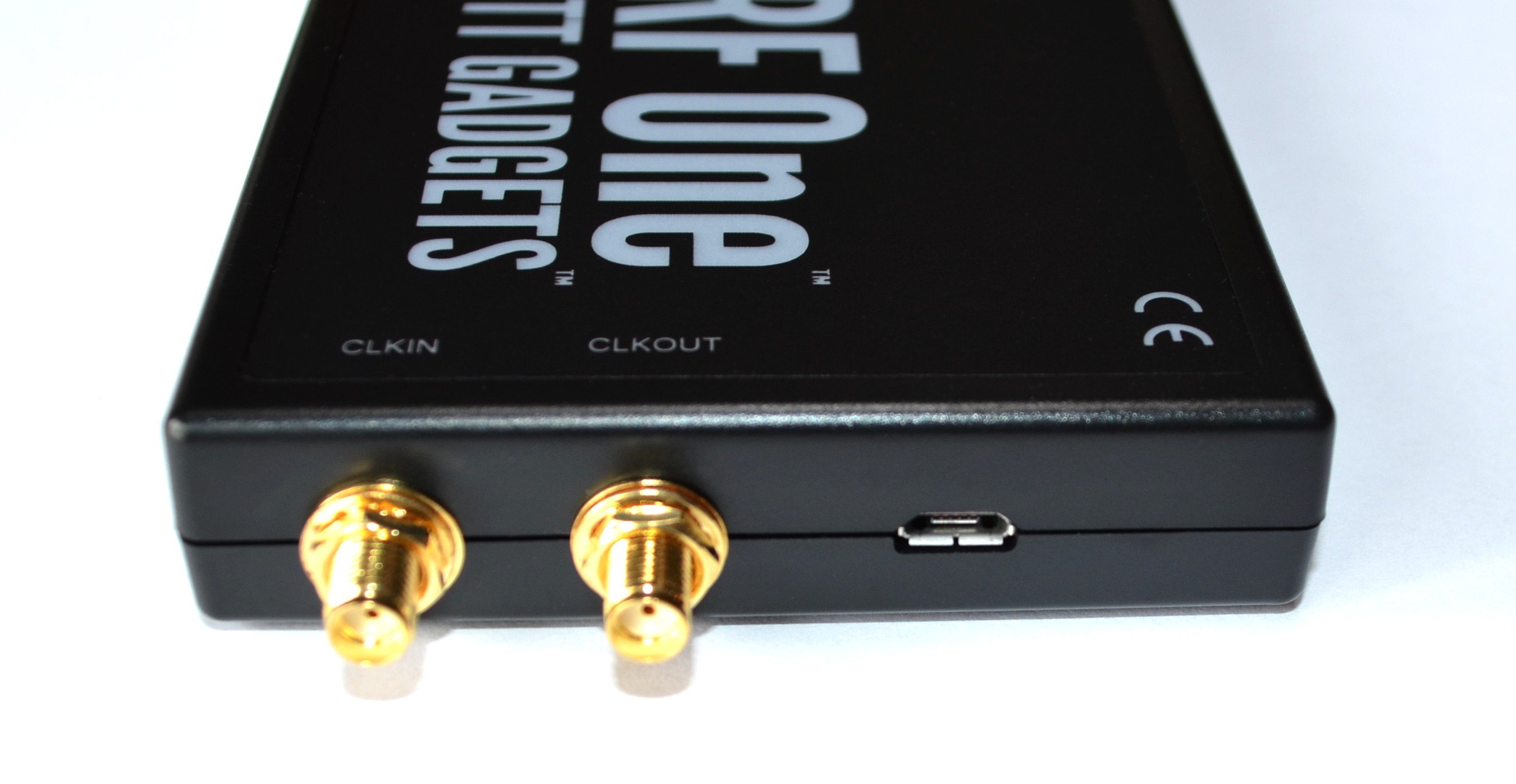

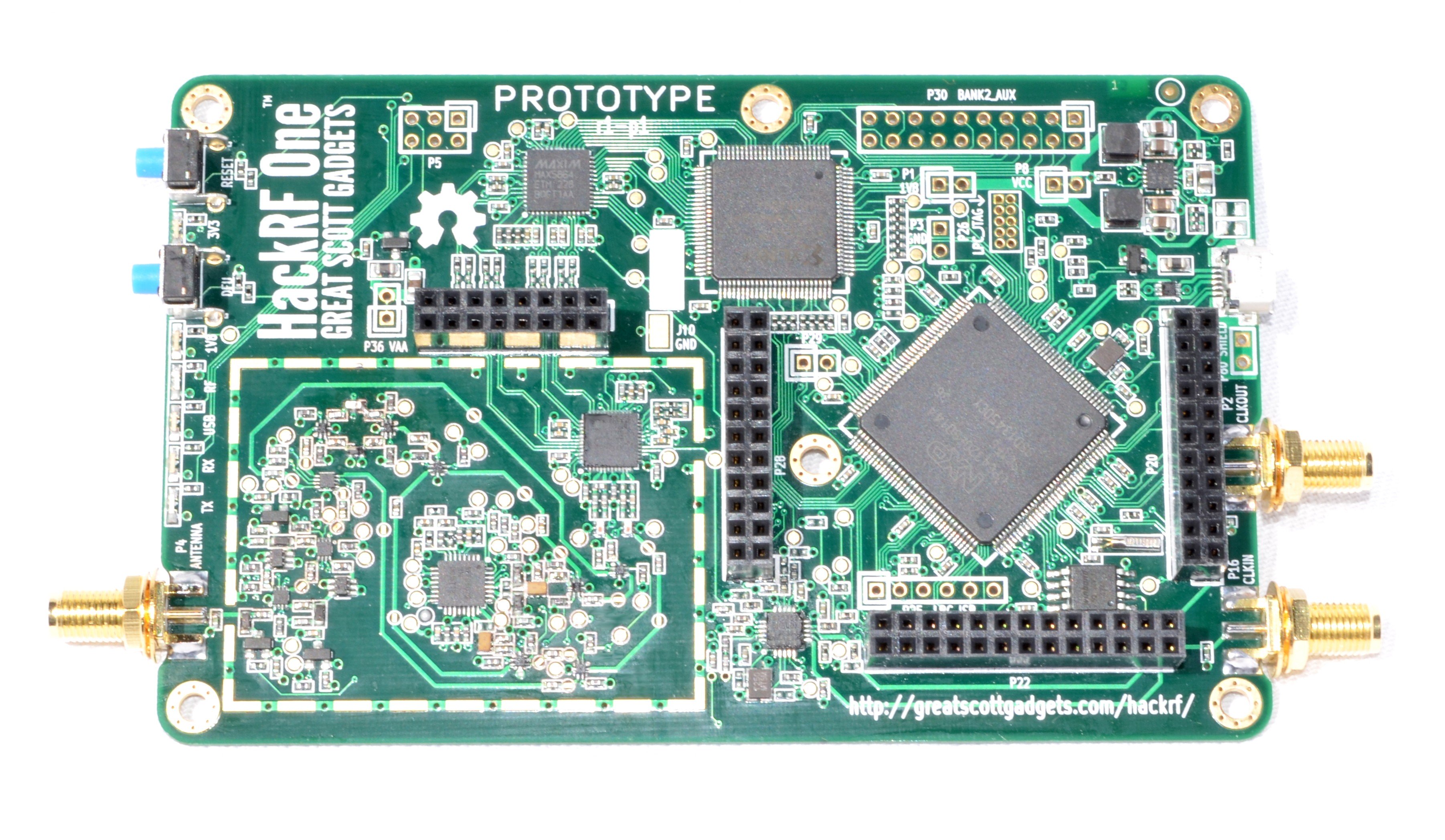

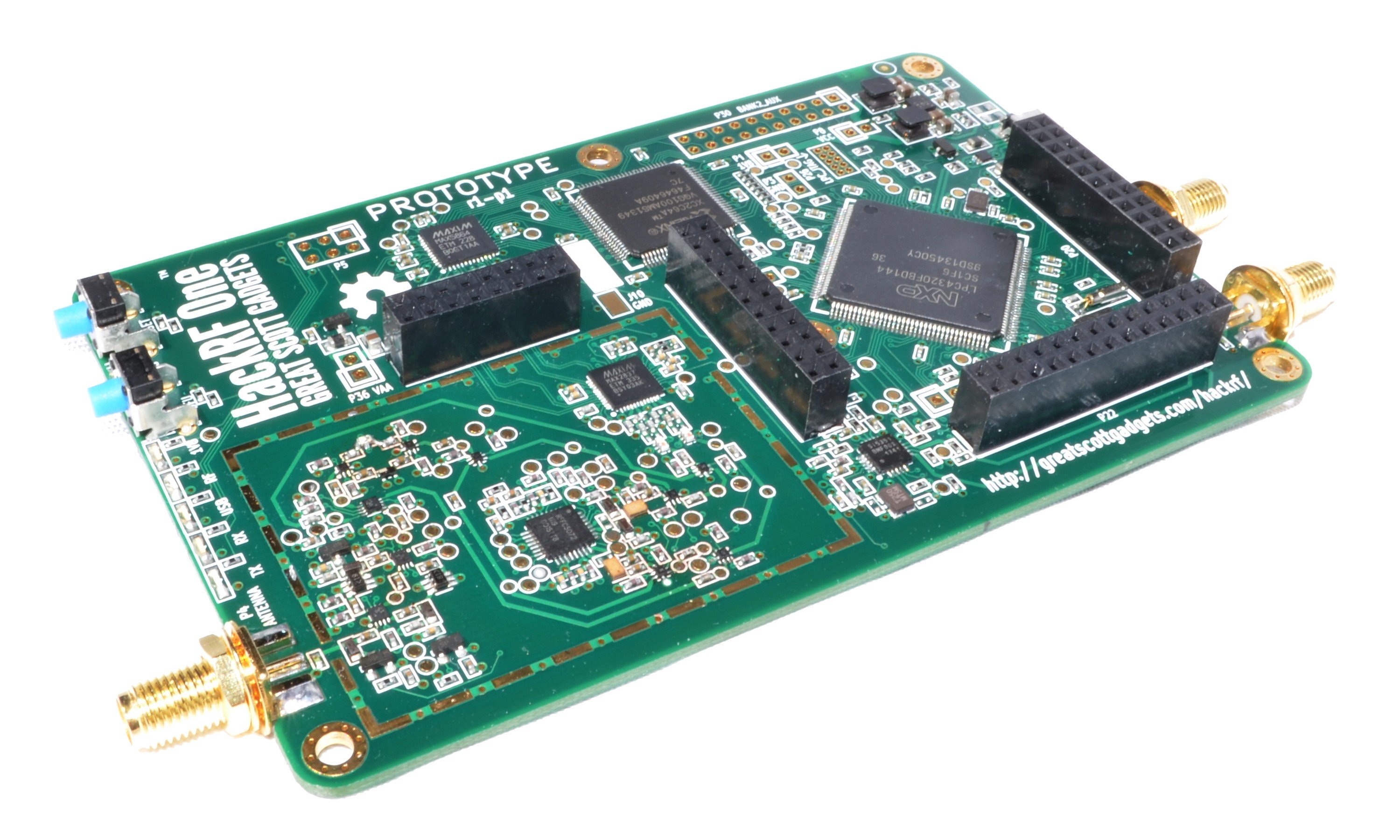

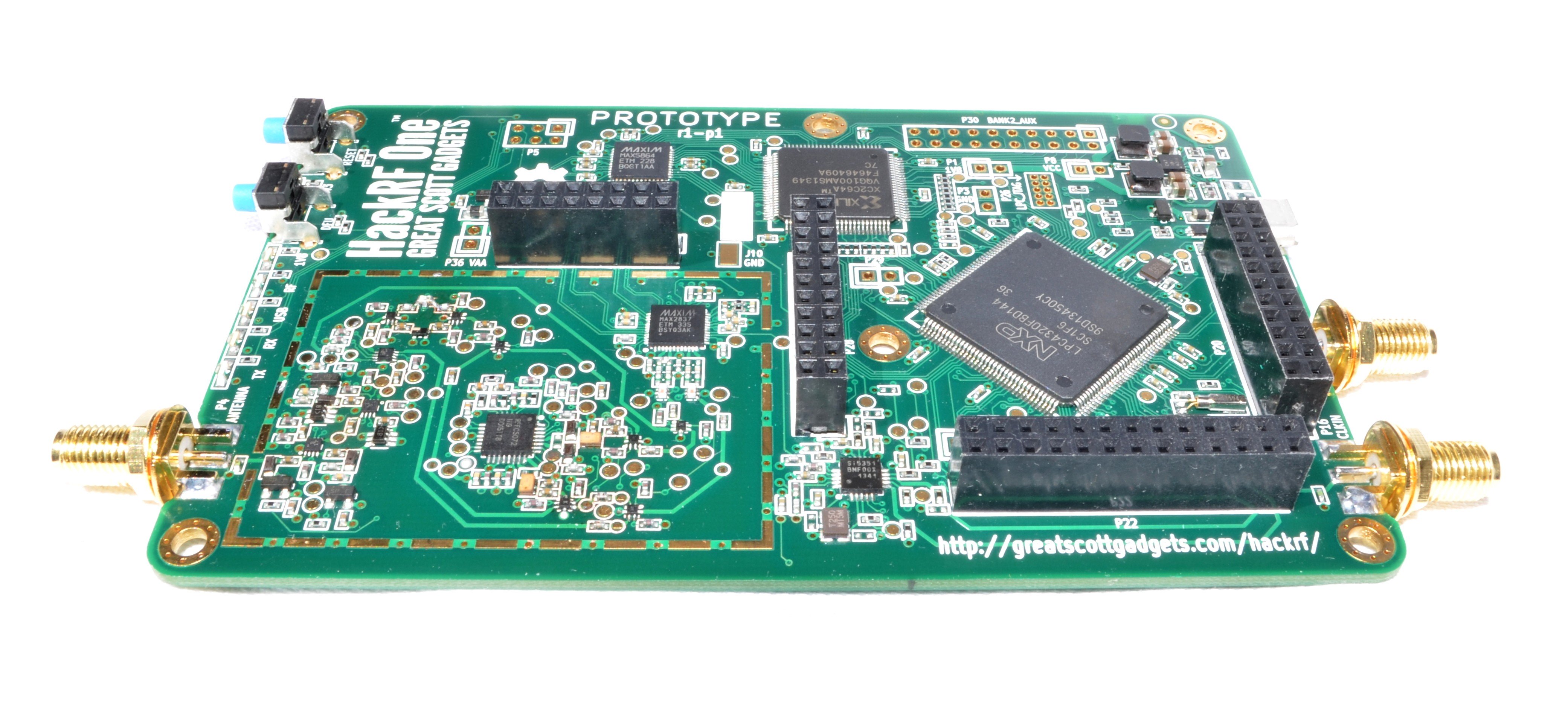

Now available in 2 versions: With original case (plastic) or without case (bare board).

Optional: Aluminum Case, clear case, and RF shield kit.

Comes with: 1x HackRF One board (with or without case) and micro-USB power cable, without antenna.

Compatibles antennas in SMA male: Diamond SRH-789, ANT500, or ANT700.

More details

319,00 € tax excl.

In stock

   More than 10 Items

  • With case
  • Without case

Download

Doc Hackrf Jawbreaker

Toute la documentation du projet HackRF SDR en open-source 10.46M

Data sheet

  • From 1MHz to 6GHz, initially announced from 10Mhz, the HackRF can receive very large signals from 1MHz (shortwave radios) and from 5MHz signal lower powers (amateur radio bands)
  • Transceiver in half duplex
  • Up to 20 million samples per second
  • 8-bit samples in quadrature (I and 8 -bit 8 - bit Q)
  • Compatible with GNU Radio, SDR Sharp, SDR Console, SDRAngel and other SDR software
  • Configurable RX and TX gain by software and baseband filter
  • Power antenna port controlled by software (50 mA at 3.3 V)
  • Antenna connector SMA female

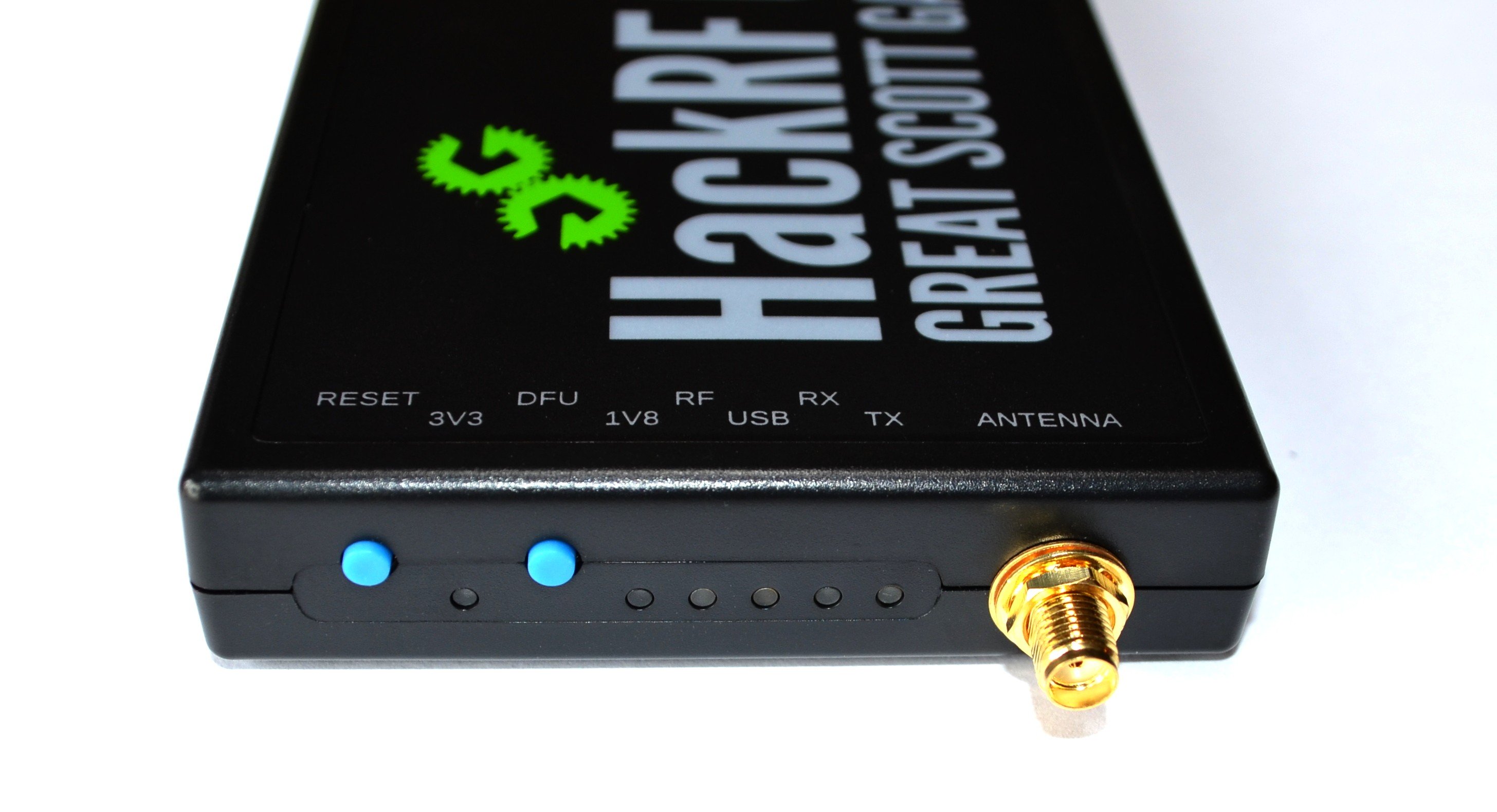

  • Convenient buttons for programming
  • USB 2.0 speed
  • Powered by USB Open source hardware
  • Version : Revision REV9

Output power

The maximum power of the TX for HackRF One varies on which operating frequency:

- 10 MHz to 2150 MHz: 5 dBm to 15 dBm (3 mW to 30 mW), generally increasing frequency decreases
- 2150 MHz to 2750 MHz: 13 dBm to 15 dBm (20 mW to 30 mW)
- 2750 MHz to 4000 MHz : from 0 dBm to 5 dBm ( 0-3 mW ), increases as the frequency decreases
- 4000 MHz to 6000 MHz : -10 dBm to 0 dBm, generally increases as the frequency decreases

The frequency range with the best performance is 2150 MHz to 2750 MHz with 30 mWatts in output power (TX).

The output power is sufficient for testing short-range (a few meters) or to power amplifier. If you connect an amplifier, you must also use an external filter bandpass adapted to the operating frequency.

HackRF is an open source project and all documentation and technical details are on the Github wiki.

HackRF One is an equipment for testing RF systems and development. It is used like-this and you are legally responsible for the use of your device. An easiest and legal way is to become an hamradio operator ;-)
